Madonna V3 Öhlins Rolling Chassis

Name: Madonna V3 Öhlins Rolling Chassis
Brand: RAAW Mountain Bikes
SKU: MAV3MD60RAWTTX2AIRRCOWO
Price: 4047.0 CHF
Availability: OutOfStock

Sale price CHF 4,047.00

local taxes may apply (learn more)

shipping calculated at checkout

Buyers' Guide | Shopping Guide | Book a Consultation

Wheels and Tires - 29" & Mullet

DT Swiss EX1700 SPLINE Wheelset - Madonna

CHF 562.00

Newmen Beskar 30 Enduro Wheelset - Madonna

CHF 546.00

Quantity

In stock - Ships directly

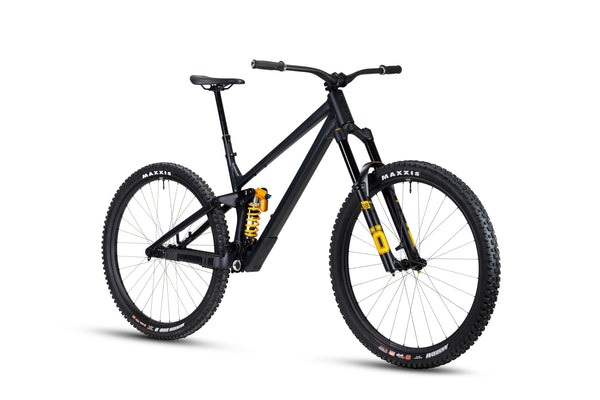

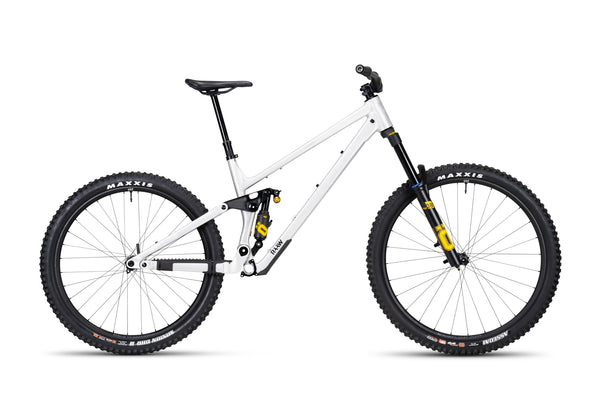

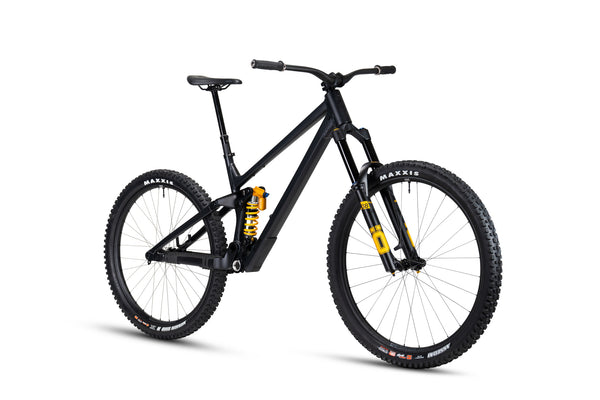

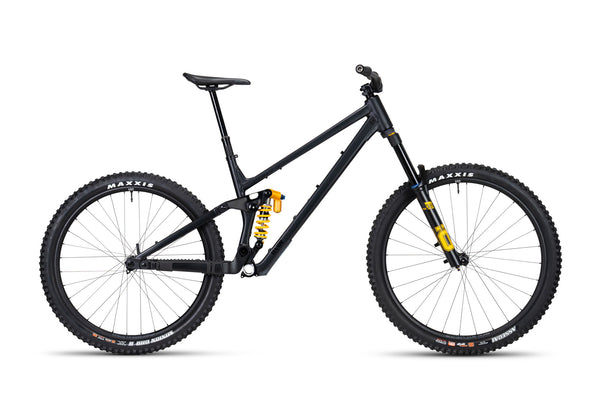

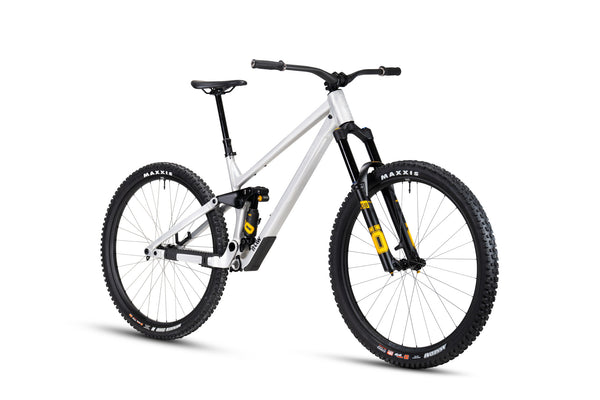

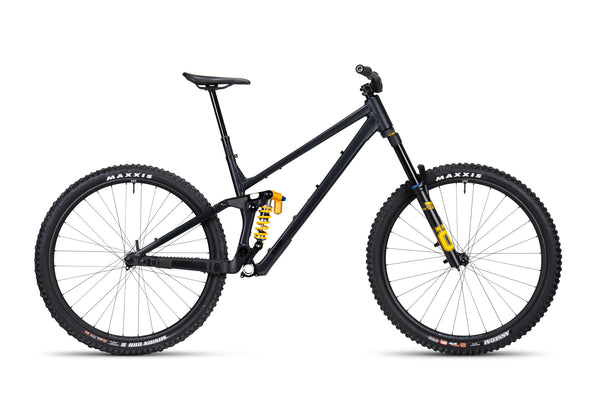

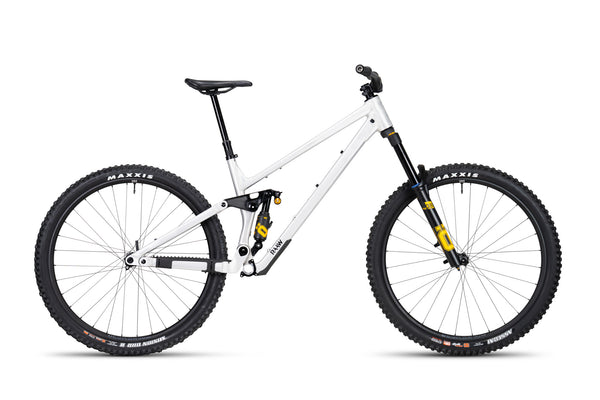

Madonna V3 Öhlins Rolling Chassis

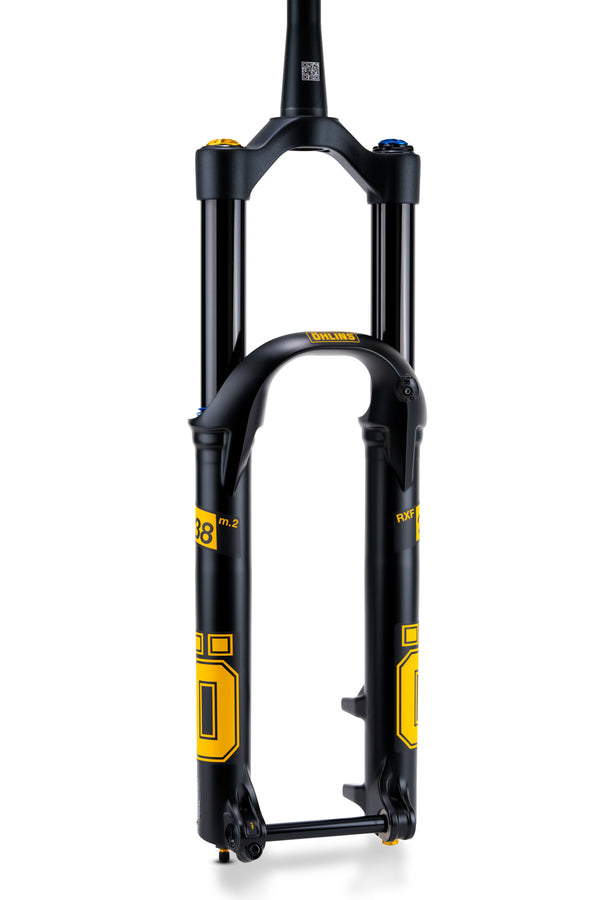

This rolling chassis now shipps with the updated Öhlins RXF38 m.3 fork. Images may still show the previous RXF38 M.2.

The Madonna V3 is the most capable, adjustable, and durable bike we’ve ever built. It’ll take on the roughest tracks, the longest rides, all the while never shying away from a climb.

While we haven’t lost our focus on durability, we’ve added adjustability to make it even more versatile. The fourth iteration of the Madonna will have your back, no matter what.

With the Rolling Chassis Kit we offer you a high-quality foundation for your individual Madonna build. You'll be ready to go in no time with the included component package yet still have plenty of room to create your own personal bike masterpiece – who wants an off the shelf build anyway?

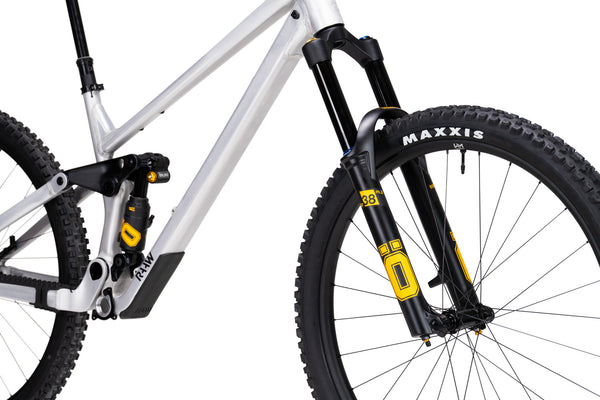

We provide a Öhlins RXF38 m.3 fork with the frame, which you can combine with your preferred Öhlins or Fox shock at the rear. We also offer the Rolling Chassis with Fox forks – click here for that.

Included is a OneUp Components V3 Dropper, with the choice of drop starting at 150 mm and going all the way up to 240 mm of travel, to provide the optimal setup for every rider. Their V3 handlebar remote is also included. If you need some help determining the amount of drop for you, click here.

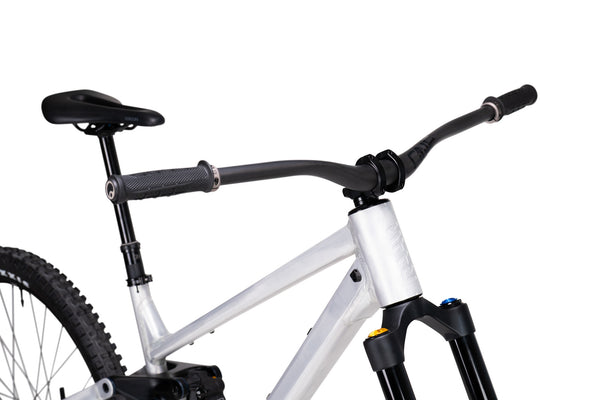

For the cockpit, we rely again on OneUp Components and offer you the stem in two lengths of 42 mm or 50 mm and their carbon handlebar with either 20 mm or 35 mm rise, so you can feel comfortable from the get go. Ergon’s GD1 Evo Factory grips and SM10 Enduro saddle round out the touch points. If you're unsure which combination of stem and bar is best for you, click here for more information on the perfect cockpit setup.

The Rolling Chassis can be topped off with the with the optional DT Swiss EX1700 or Newmen Beskar 30 Enduro wheels. Both are available as full 29" or 29"/27.5" options and you can choose between Sram XD or Shimano Microspline freehubs. You receive the Maxxis Assegai with EXO+ casing up front and a Maxxis Minion DHR II with DD casing out back on top. This combination is our current go-to in almost all conditions. The Maxxis tyres, rim tape and valves are a bonus to the wheels, if you decide to order your rolling chassis without wheels, those components will not be included.

To get you off to a good start in building your new bike, we've already pressed the headset cups into the frame and mounted the crown race on the fork. The tubeless tape and valves are also installed, you’ll just need to add in some sealant. The rest of the components are ready for you to assemble – this way you can truly experience the build process from the ground up and get to know your new bike and all its technical details. But you’re never on your own, as our support is always there if you need help building and can’t find the answer you’re after in our extensive knowledge base.

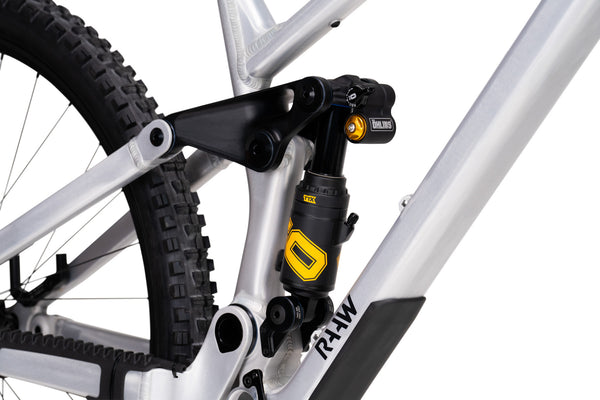

If you want to learn more about the shock choice or the two different rocker link options, you can find all details about the Madonna V3 on this page.

The frames are regularly available with the rocker link options shown in the selection on the side. If you prefer a different rocker link, please send us an e-mail to hello@raawmtb.com and we will check the availability of the preferred configuration.

Geometry

	S	M	L	XL	XXL
Reach	430	455	480	505	530
Stack	637	650	664	677	677
Chainstay Length	445	445	450	455	455
BB Drop	35	35	35	35	35
BB Height	335 - 340	335 - 340	335 - 340	335 - 340	335 - 340
Seat Tube Length	395	420	445	470	470
Virtual Seat Tube Angle	77	77	78	78	78
Actual Seat Tube Angle	72	72	74	74	74
Horizontal Top Tube	576	605	618	647	672
Head Tube Length	100	115	130	145	145
Head Tube Angle	64	64	64	64	64
Fork Length	587,7	587,7	587,7	587,7	587,7
Fork Offset	44	44	44	44	44
Wheelbase	1216	1248	1284	1320	1346
Body Height in cm	158 - 170	167 - 180	177 - 190	186 - 199	195 - 208
Recommended Stem Length	35 - 50	35 - 50	35 - 50	35 - 50	35 - 50
Recommended Crank Length	165 / 170	165 / 170	165 / 170	165 / 170	165 / 170

(all dimensions in mm except for angles)

Frame Specifications

Travel rear / front 160 / 170mm
Wheel size 29” (740–755mm) (27,5” rear option)
Max tyre width 2.6” (66mm)
Tyre clearance 84mm
Rear hub 148*12
Shifting One-by only, boost, 36t max (UDH / T-Type option)
BB 73mm BSA / ISCG05
Brake 203mm post mount
Seat tube diameter 31.6mm inside, 35mm outside
Internal seatpost routing Yes
Seatpost max insert S 220mm / M 245mm / L 268mm / XL & XXL 294mm
Headset 56 / 56 Zero stack
Cable routing All external
Shock hardware Ball bearings and hardware included
Bearings main pivot 2 x 6906-2RS1 (47*30*9)
Bearings rocker pivot 2 x 6002-2RS1 (32*15*9)
Bearings other pivots 8 x 6902-2RS1 (28*15*7)
Recommended fork dimensions ATC 587,7mm – Offset 44mm
Shock dimensions 205*65 / 205*60 – Trunnion
Weight 3.9 kg (incl. all hardware, w/o shock, size M)
Material AL 6066 T6
Finish options Matt Black and raw with matt clear coat

Rolling Chassis Specifications

Frame	RAAW Madonna V3
Option Axle	RAAW rear wheel axle (if RAAW Seatstay is selected) or RAAW X12 axle 174mm (if UDH Seatstay is selected)
Seatpost Clamp	RAAW
Headset	Cane Creek Hellbender 70

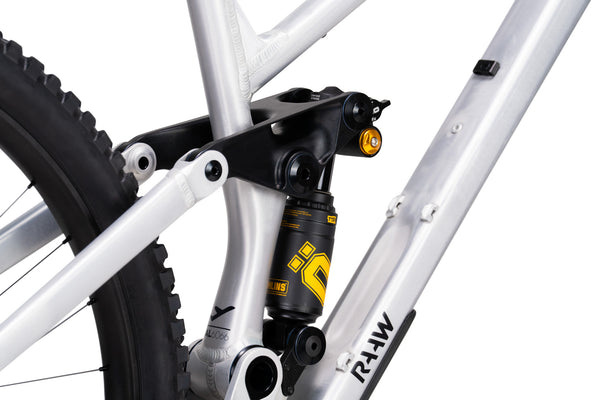

Shock	Fox Float X Factory, Fox Float X2 Factory, Fox DHX2 incl. SLS spring, Öhlins TTX2Air or Öhlins TTX22m.2 incl. spring
Fork	Öhlins RXF38 m.3 Air TTX18, 29”/44/170mm
Dropper post	OneUp V3 dropper post incl. V3 remote (black) and 22.2 HB clamp (150 mm, 180 mm, 210 mm or 240mm)
Stem	OneUp 42mm or 50mm
Handlebar	OneUp carbon handlebar, 20mm or 35mm rise
Grips	Ergon GD10 Slim Black
Saddle	Ergon SM10 Enduro Men M/L
Optional Wheels	DT Swiss EX1700, or Newmen Beskar 30 Enduro, full 29" or 29"/27.5", Micro Spline or XD freehub
Tire Front	Maxxis Assegai, 29x2.50WT, EXO+, 3C MaxxGRIP
Tire Rear	Maxxis Minion DHR II, 29x2.40WT, DD, 3C MaxxTERRA
Tubeless	Tubeless valves and tubeless rim tape (without sealant)
Gear	Chainstay protector, down tube protector, seatstay protector, RAAW protective film (if selected), owners book, welcome package

The Madonna Rolling Chassis is shipped in two separate parcels, one containing the frame and components and the other containing the wheels. This allows for a more efficient and secure delivery of the product.

Contents of the first parcel:

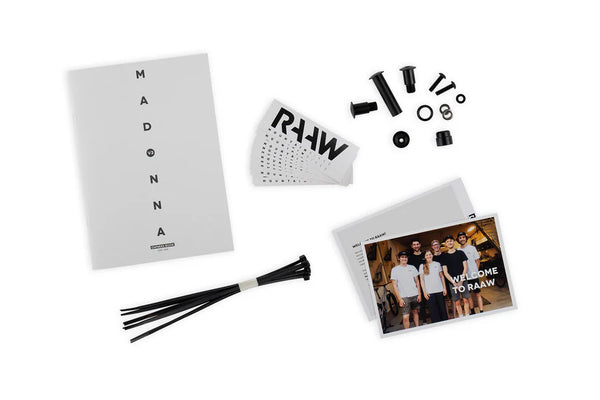

Madonna V3 Frame Kit

1x RAAW Madonna V3 frame raw or matt black
1x RAAW seatpost clamp
1x Madonna protective film (if selected)
1x Chainstay protector
1x Seatstay protector
1x Down Tube protector
1x Brake mount 203mm
All hardware for shock assembly
Nine Zip ties
1x Owners book
1x Welcome package
1x Cane Creek Hellbender 70 headset

Option RAAW Seatstay

1x RAAW Rear Wheel Axle
RAAW 7075 Rear Derailleur Hanger for mid position

Option UDH Seatstay

RAAW X12 Axle 174mm
UDH hanger

Rolling Chassis build:

1x Öhlins RXF38 m.3 Air TTX18, 29”/44/170mm
1x OneUp carbon handlebar, 800 mm wide, 35 mm clamp diameter, 8° back sweep, 5° up sweep, 20 mm or 35 mm rise
1x OneUp stem, 42 mm or 50 mm
1x OneUp V3 dropper post , V3 remote (black) with 22.2 HB clamp (150 mm, 180 mm, 210 mm or 240 mm drop)
1x Ergon SM10 Enduro Men M/L saddle
1x Set Ergon GD10 Slim Black

If configured with wheels:

1x Maxxis Assegai, 2.50WT, EXO+, 3C MaxxGRIP
1x Maxxis Minion DHR II, 2.40WT, DD, 3C MaxxTERRA

Shock choice:

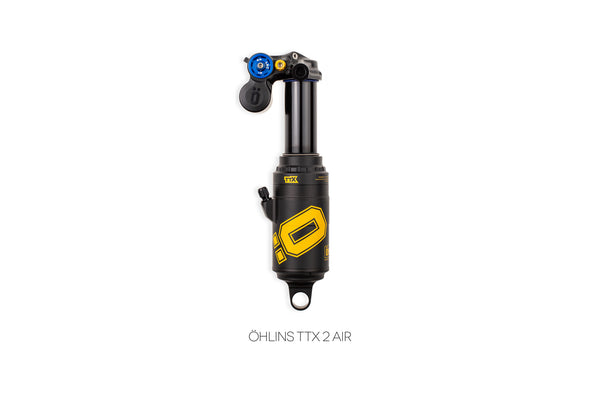

1x Öhlins TTX2 Air

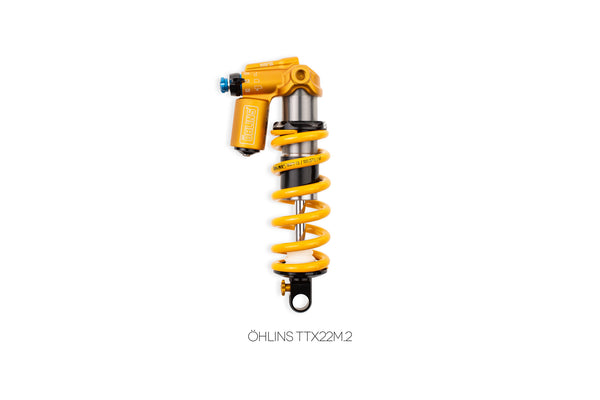

1x Öhlins TTX22M.2 Coil incl. spring
1x Fox Float X Factory, 2pos lever

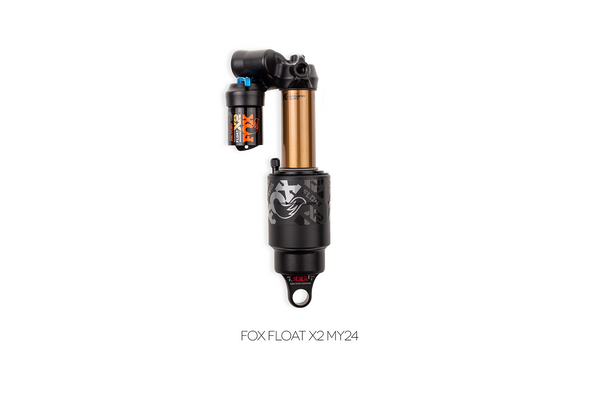

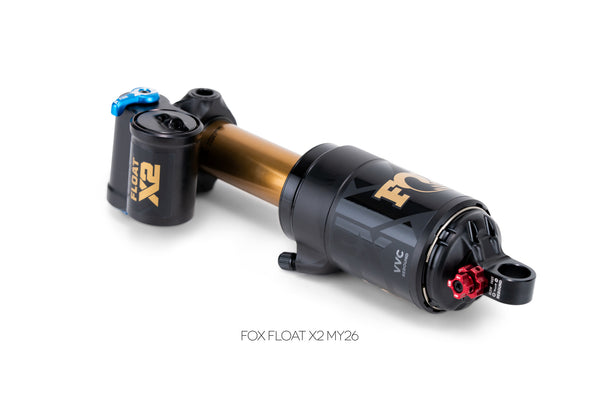

1x Fox Float X2 Factory MY24, 2pos lever
1x Fox Float X2 Factory MY26, 2pos lever

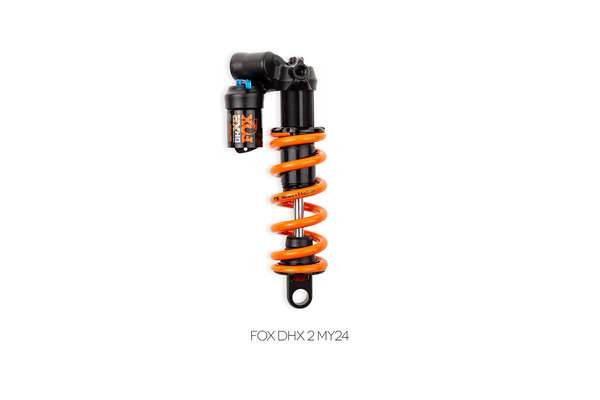

1x Fox DHX2 Factory MY24, 2pos lever, incl. Fox SLS spring

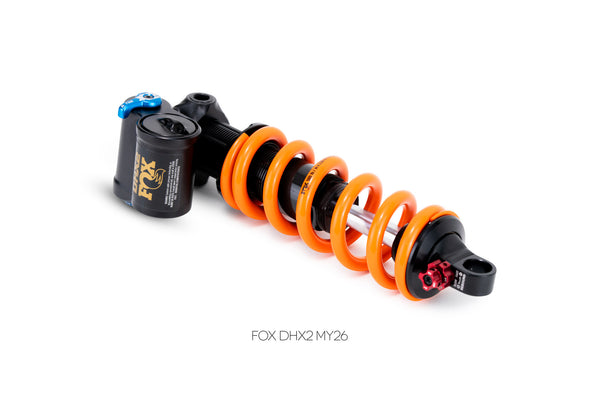

1x Fox DHX2 Factory MY26, 2pos lever, incl. Fox SLS spring

Contents of the second parcel: (if configured with wheels)

1x DT Swiss EX1700 or Newmen Beskar 30 Enduro Wheelset
29" or 29"/27.5", 15x110 and 12x148 hub width, 6-bolt rotor mount
Sram XD or Shimano Microspline freehub
all options incl. tubeless rim tape (without sealant)
all options incl. 2x tubeless valves
