Jibb V2 Fox Factory Rolling Chassis
local taxes may apply (learn more)
shipping calculated at checkout
Wheels and Tires - 29" & Mullet
Low stock, order soon!
Jibb V2 Fox Factory Rolling Chassis
The Jibb is made to ride up, down and chase its tail all over the mountains. It’s a capable bike that gives you feedback through the steering and suspension like no big travel bike can. And that’s what makes the Jibb so much fun and just the best all-rounder you can have in your garage.
With the Rolling Chassis Kit we offer you a high-quality foundation for your individual Jibb build. You'll be ready to go in no time with the included component package yet still have plenty of room to create your own personal bike masterpiece – who wants an off the shelf build anyway?
We provide a 2024 Fox 36 Factory fork with the frame, which you can combine with your preferred Fox or Öhlins shock at the rear.
Included is a OneUp Components V3 Dropper, with the choice of drop starting at 150 mm and going all the way up to 240 mm of travel, to provide the optimal setup for every rider. Their V3 handlebar remote is also included. If you need some help determining the amount of drop for you, click here.
For the cockpit, we rely again on OneUp Components and offer you the stem in two lengths of 42 mm or 50 mm and their carbon handlebar with either 20 mm or 35 mm rise, so you can feel comfortable from the get go. Ergon’s GDH grips and SM10 Enduro saddle round out the touch points. If you're unsure which combination of stem and bar is best for you, click here for more information on the perfect cockpit setup.

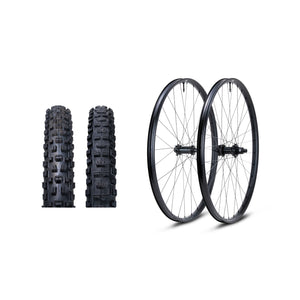

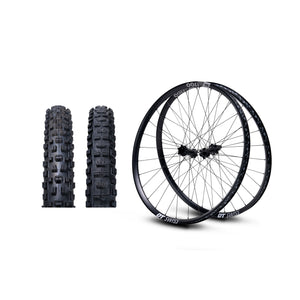

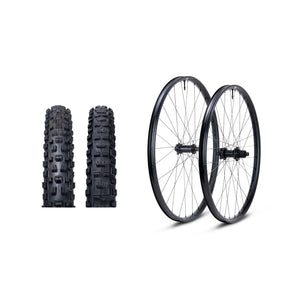

The Rolling Chassis is topped off with the optional DT Swiss EX1700 or Newmen Beskar 30 wheels. Choose between full 29" or mixed 29"/27.5" configuration, either one with either XD or MS freehub. All wheels are equipped with a Maxxis Assegai with EXO+ casing up front and a Maxxis Minion DHR II with EXO+ casing out back. This combination is our current go-to in almost all conditions.
To get you off to a good start in building your new bike, we've already pressed the headset cups into the frame and mounted the crown race on the fork. The tubeless tape and valves are also installed, you’ll just need to add in some sealant. The rest of the components are ready for you to assemble – this way you can truly experience the build process from the ground up and get to know your new bike and all its technical details. But you’re never on your own, as our support is always there if you need help building and can’t find the answer you’re after in our extensive knowledge base.
If you want to learn more about the shock choice or the two different rocker link options, you can find all details about the Jibb V2 on this page.
The frames are regularly available with the rocker link options shown in the selection on the side. If you prefer a different rocker link, please send us an e-mail to hello@raawmtb.com and we will check the availability of the preferred configuration.
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 420 | 445 | 470 | 495 | 520 |
| Stack | 621 | 635 | 649 | 662 | 662 |
| Chainstay Length | 445 | 445 | 450 | 455 | 455 |
| BB Drop | 35 | 35 | 35 | 35 | 35 |
| Seat Tube Length | 395 | 420 | 445 | 470 | 470 |
| Virtual Seat Tube Angle | 76 | 76 | 77 | 77 | 77 |
| Head Tube Angle | 64,5 | 64,5 | 64,5 | 64,5 | 64,5 |
| Wheelbase | 1192 | 1224 | 1260 | 1296 | 1321 |
| Body Height in cm | 158 - 170 | 167 - 180 | 177 - 190 | 186 - 199 | 195 - 208 |
(all dimensions in mm except for angles)
Frame Specifications
Rolling Chassis Specifications
| Frame | RAAW Jibb V2 |
| Option Axle | RAAW rear wheel axle (if RAAW Seatstay is selected) or RAAW X12 axle 174mm (if UDH Seatstay is selected) |
| Seatpost Clamp | RAAW |
| Headset | Cane Creek Hellbender 70 |
| Shock | Fox Float X Factory, Fox Float X2 Factory (MY24 or MY26), Fox DHX2 (MY24 or MY26) incl. SLS spring, Öhlins TTX2Air or Öhlins TTX22m.2 incl. spring |
| Fork | 2024 Fox 36 Factory, 150 mm, Grip2, 44 mm offset, Matte Black |
| Dropper post | OneUp V3 dropper post incl. V3 remote (black) and 22.2 HB clamp (150 mm, 180 mm, 210 mm or 240mm) |
| Stem | OneUp 42mm or 50mm |
| Handlebar | OneUp carbon handlebar, 20mm or 35mm rise |
| Grips | Ergon GDH |
| Saddle | Ergon SM10 Enduro Men M/L |
| Wheels | DT Swiss EX1700 orNewmen Beskar 30 Enduro, 6-bolt, Micro Spline or XD freehub |
| Tire Front | Maxxis Assegai, 2.50WT, EXO+, 3C MaxxGRIP |
| Tire Rear | Maxxis Minion DHR II, 2.40WT, EXO+, 3C MaxxTerra |
| Tubeless | Tubeless valves and tubeless rim tape (without sealant) |
| Gear | Chainstay protector, down tube protector, seatstay protector, RAAW protective film (if selected), owners book, welcome package |
Contents Rolling Chassis
FACTORY GRADE SUPPORT INCLUDED
If you ride a RAAW, you'll never ride alone. Your frame comes with comprehensive documentation and a direct line to the team that created it.
We're happy to answer all your questions!
