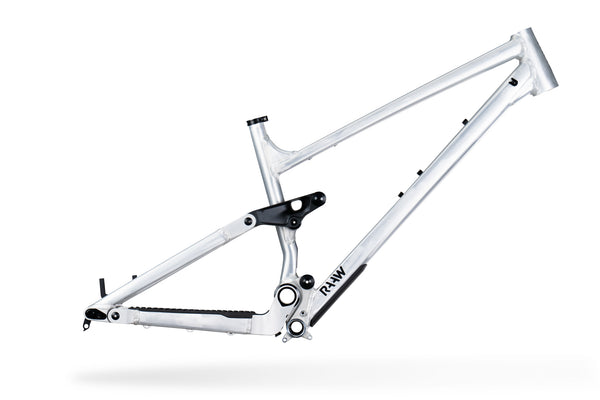

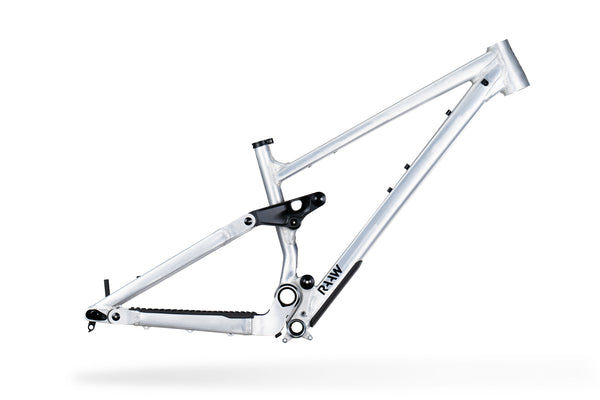

Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw

Jibb V1 Frame Kit - Raw

Regular price $1,312.00 Sale price $2,186.00

local taxes may apply (learn more)

shipping calculated at checkout

Shopping Guide | Book a Consultation

Size and Color
Shock
Headset
Spring Rate
Spring Rate
Protective film

In stock - Ships directly

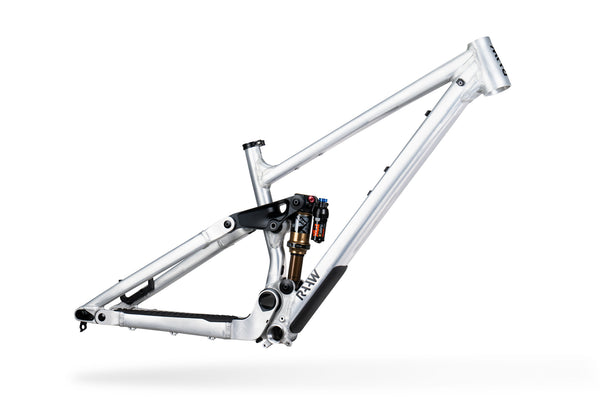

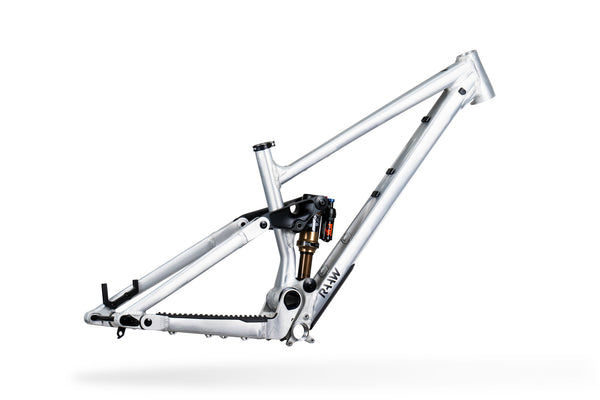

Jibb V1 Frame Kit

The Jibb is made to ride up, down and chase its tail all over the mountains. It brings the Madonna’s DNA to an all-around more playful package and entices you to be an active part of the ride. The Jibb does demand more involvement from the rider when things get rough but doesn’t shy away from the big stuff one bit. The chassis gives you all the feedback and confidence you need and makes it an ideal companion for long rides in the hills all the way through to wild bike park days.

If you want to learn more about the Jibb, you can find all details on this page.

Geometry
S M L XL
Travel (R/F) r:135
f:150 (+10)		 r:135
f:150 (+10)		 r:135
f:150 (+10)		 r:135
f:150 (+10)
Reach 420 445 470 495
Stack 608 622 636 649
Chain Stay Length 440 440 445 450
BB Drop 35 35 35 35
Seat Tube Length 395 420 445 470
Virtual Seat Tube Angle 77.5 77.5 77.5 77.5
Seat Tube BB Offset 35 35 35
 35
Head Tube Angle 65.5 65.5 65.5 65.5
Wheelbase 1172 1203 1240 1276
Body Height in cm 158 - 170 167 - 180 177 - 190 186 - 199

(all dimensions in mm except for angles)



Specifications

Travel rear/ front 135/ 150 (+10)
Wheel size 29” (740-755mm)
Max tire width 2.6” (66mm)
Tire clearance 84mm
Rear hub 148 x 12
Shifting One-by only, boost, 36t max
BB 73mm BSA / ISCG05
Brake 203mm Postmount
Seat tube diameter 31.6mm inside, 35mm outside
Internal seatpost routing Yes
Seatpost max insert S 205mm / M 230mm / L 255mm / XL 280mm
Headset 44 / 56 Zero stack
Cable routing All external
Tire to seat tube clearance 10 – 18mm (depending on size and tire)
Shock hardware Ball bearings and hardware included
Bearings main pivot 2 x 61808-2RS1 (52 x 40 x 7)
Bearings other pivots 10 x 91903-2RS1 (28 x 15 x 7)
Recommended fork dimensions ATC 560mm – Rake 44mm
Shock dimensions 185 x 55 – Trunnion
Weight  3.9 kg (incl. shock hardware, rear wheel axle and frame protection, w/o shock, size S)
Material AL 6066 T6
Colours Matt Black and Raw with matt clear coat

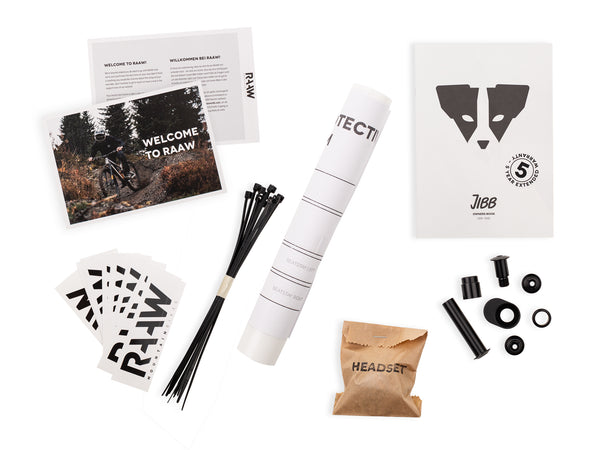

Contents

Jibb Frame Kit

  • 1x Frame RAAW Jibb - Finish Raw
  • 1x RAAW rear wheel axle
  • 1x Seatpost clamp RAAW
  • 1x Protective film for the Jibb
  • 1x Chainstay Protector
  • 1x Seatstay Protector
  • 1x Down Tube Protector
  • 1x Brake mount 203 mm
  • Full Hardware for shock assembly
  • 11 Zip ties
  • Owners book

Optional headset contains:

  • 1x Headset Acros

Optional shock choice:

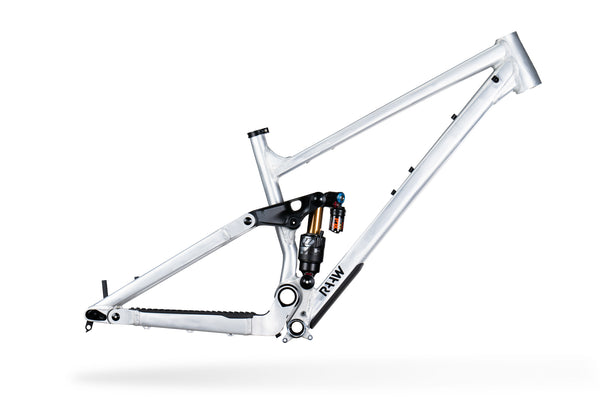

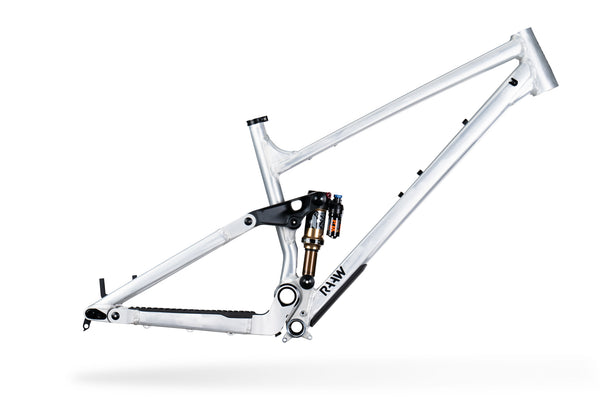

  • 1x Fox Float X Factory 2pos lever

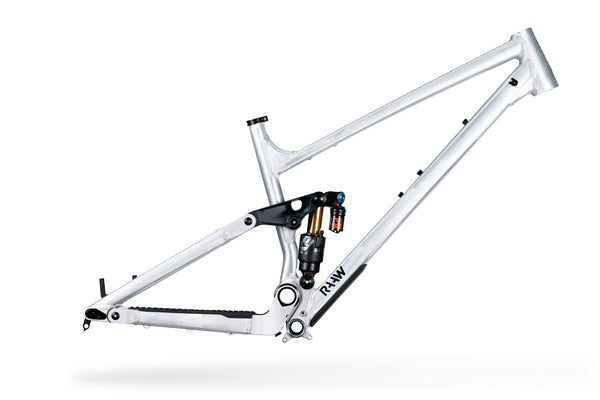

  • 1x Fox Float X2 Factory 2pos lever

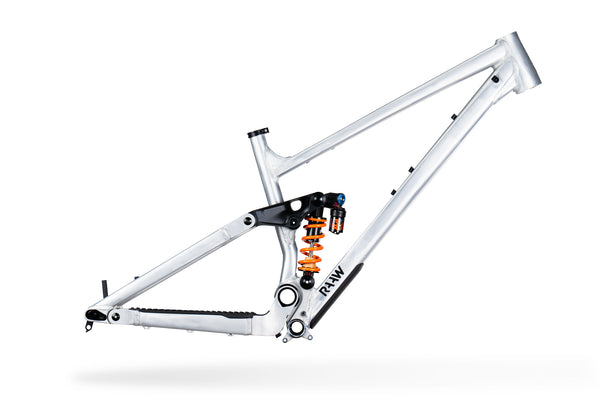

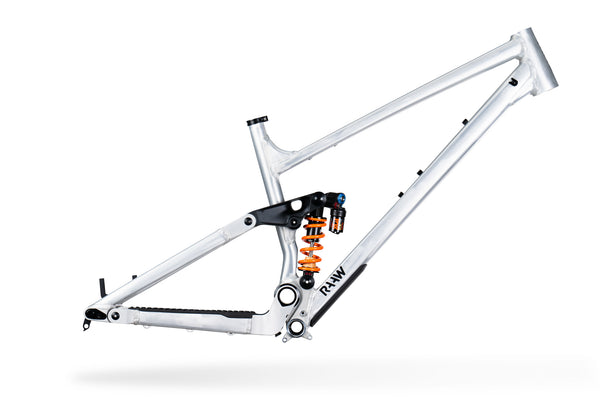

  • 1x Fox DHX2 Factory 2pos lever incl. Fox SLS spring

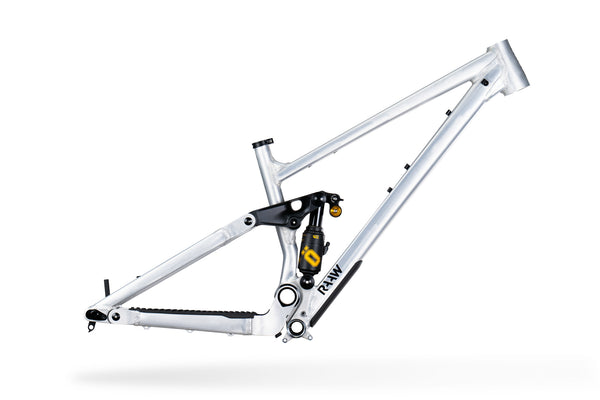

  • 1x Öhlins TTX2Air

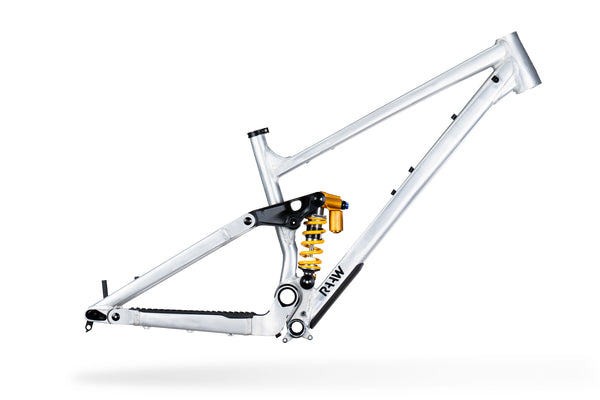

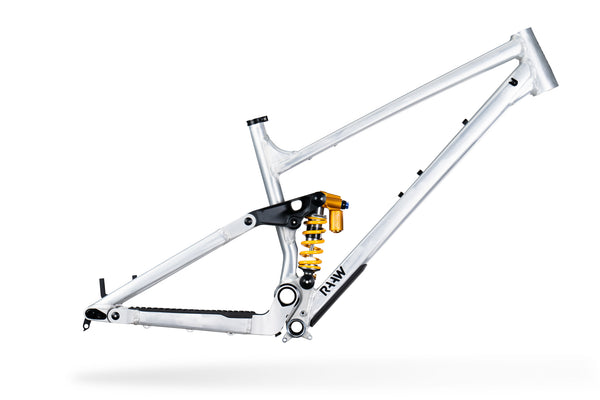

  • 1x Öhlins TTX22M incl. spring



Geometry

S M L XL
Travel (R/F) r:135
f:150 (+10)		 r:135
f:150 (+10)		 r:135
f:150 (+10)		 r:135
f:150 (+10)
Reach 420 445 470 495
Stack 608 622 636 649
Chain Stay Length 440 440 445 450
BB Drop 35 35 35 35
Seat Tube Length 395 420 445 470
Virtual Seat Tube Angle 77.5 77.5 77.5 77.5
Seat Tube BB Offset 35 35 35
 35
Head Tube Angle 65.5 65.5 65.5 65.5
Wheelbase 1172 1203 1240 1276
Body Height in cm 158 - 170 167 - 180 177 - 190 186 - 199

(all dimensions in mm except for angles)



Specifications

Travel rear/ front 135/ 150 (+10)

Wheel size 29” (740-755mm)

Max tire width 2.6” (66mm)

Tire clearance 84mm

Rear hub 148 x 12

Shifting One-by only, boost, 36t max

BB 73mm BSA / ISCG05

Brake 203mm Postmount

Seat tube diameter 31.6mm inside, 35mm outside

Internal seatpost routing Yes

Seatpost max insert S 205mm / M 230mm / L 255mm / XL 280mm

Headset 44 / 56 Zero stack

Cable routing All external

Tire to seat tube clearance 10 – 18mm (depending on size and tire)

Shock hardware Ball bearings and hardware included

Bearings main pivot 2 x 61808-2RS1 (52 x 40 x 7)

Bearings other pivots 10 x 91903-2RS1 (28 x 15 x 7)

Recommended fork dimensions ATC 560mm – Rake 44mm

Shock dimensions 185 x 55 – Trunnion

Weight 3.9 kg (incl. shock hardware, rear wheel axle and frame protection, w/o shock, size S)

Material AL 6066 T6

Finish options Matt Black and Raw with matt clear coat

Contents

Jibb Frame Kit

  • 1x Frame RAAW Jibb - Finish Raw
  • 1x RAAW rear wheel axle
  • 1x Seatpost clamp RAAW
  • 1x Protective film for the Jibb (if selected)
  • 1x Chainstay Protector
  • 1x Seatstay Protector
  • 1x Down Tube Protector
  • 1x Brake mount 203 mm
  • Full Hardware for shock assembly
  • 11 Zip ties
  • Owners book

Optional headset contains:

  • 1x Headset Acros

Optional shock choice:

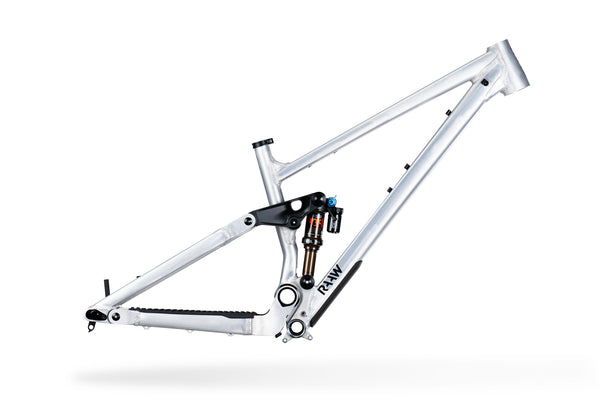

  • 1x Fox DPX2 Factory MY2021
  • 1x Fox Float X Factory 2pos lever
  • 1x Fox Float X2 Factory 2pos lever
  • 1x Fox DHX2 Factory 2pos lever incl. Fox SLS spring
  • 1x Formula MOD incl. Titanium Color spring
  • 1x Öhlins TTX2Air
  • 1x Öhlins TTX22m.2 incl. spring

Customer Reviews

Based on 45 reviews
89%
(40)
11%
(5)
0%
(0)
0%
(0)
0%
(0)
T
Tomas
Jibb V1

PLUS: Love the bike, it exceeded my expectations in handling - it is stable but playful. I was worried of what I thought was a long chainstay length, but I would not go back to a shorter one. I am still tempted to try the longer setting to see what it does, but am not interested in the shorter, which I originally had expected to prefer.

MINUS: Since the beginning, I have been chasing creaks. I have resolved some of the creaking, but some always remains there. The cable routing on the V1 is also less than ideal (and had been a source of some of the creaks) - the solution on V2 (or Madonna V3) seems a lot neater.

Overall a great bike that I'd happily recommend, even though mine has been plagued with weird noises.

L
Leo
Jibb V1

wohl bestes Trail Bike. Lange Kettenstrebe und -1° Headset für mehr Performance bergab.

H
Heiko M.
Robustes Bike wo schrauben noch richtig Spass macht.

Ich war lange skeptisch ob das das richtige Rad für mich ist. Als es aber zusammen gebaut war. Und ich die ersten ausfahren unternommen habe, war jeglicher Zweifel dahin. Tolles Rad, hoch fast noch besser wie runter. Die Kiste ist wirklich schön agiel und trotzdem läuft es schön gerade aus.

A
Arne
Raaw jibb v1

Tolles Bike für alle Bereiche des Geländeradsports.

T
Tobias S.
Mega zufrieden mit meinem RAAW Jibb

Das Rad hat eine hervorragende Qualität und macht mega Spaß. Egal ob Uphill oder downhill, es lässt sich einfach super fahren.

Zudem mega Kundensupport.
Habe es seit 2022 und bin mega zufrieden mit der Haltbarkeit und Qualität des Rahmens.
