Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw
Jibb V1 Frame Kit - Raw

Jibb V1 Frame Kit - Raw

Regular price £1,276.00 Sale price £1,750.00

local taxes may apply (learn more)

shipping calculated at checkout

Shopping Guide | Book a Consultation

Size and Color
Tuned Shock
Installed Headset
Spring Rate
Spring Rate
Protective film

In stock - Ships directly

Jibb V1 Frame Kit

The Jibb is made to ride up, down and chase its tail all over the mountains. It brings the Madonna’s DNA to an all-around more playful package and entices you to be an active part of the ride. The Jibb does demand more involvement from the rider when things get rough but doesn’t shy away from the big stuff one bit. The chassis gives you all the feedback and confidence you need and makes it an ideal companion for long rides in the hills all the way through to wild bike park days.

If you want to learn more about the Jibb, you can find all details on this page.

Geometry
S M L XL
Travel (R/F) r:135
f:150 (+10)		 r:135
f:150 (+10)		 r:135
f:150 (+10)		 r:135
f:150 (+10)
Reach 420 445 470 495
Stack 608 622 636 649
Chain Stay Length 440 440 445 450
BB Drop 35 35 35 35
Seat Tube Length 395 420 445 470
Virtual Seat Tube Angle 77.5 77.5 77.5 77.5
Seat Tube BB Offset 35 35 35
 35
Head Tube Angle 65.5 65.5 65.5 65.5
Wheelbase 1172 1203 1240 1276
Body Height in cm 158 - 170 167 - 180 177 - 190 186 - 199

(all dimensions in mm except for angles)



Specifications

Travel rear/ front 135/ 150 (+10)
Wheel size 29” (740-755mm)
Max tire width 2.6” (66mm)
Tire clearance 84mm
Rear hub 148 x 12
Shifting One-by only, boost, 36t max
BB 73mm BSA / ISCG05
Brake 203mm Postmount
Seat tube diameter 31.6mm inside, 35mm outside
Internal seatpost routing Yes
Seatpost max insert S 205mm / M 230mm / L 255mm / XL 280mm
Headset 44 / 56 Zero stack
Cable routing All external
Tire to seat tube clearance 10 – 18mm (depending on size and tire)
Shock hardware Ball bearings and hardware included
Bearings main pivot 2 x 61808-2RS1 (52 x 40 x 7)
Bearings other pivots 10 x 91903-2RS1 (28 x 15 x 7)
Recommended fork dimensions ATC 560mm – Rake 44mm
Shock dimensions 185 x 55 – Trunnion
Weight  3.9 kg (incl. shock hardware, rear wheel axle and frame protection, w/o shock, size S)
Material AL 6066 T6
Colours Matt Black and Raw with matt clear coat

Contents

Jibb Frame Kit

  • 1x Frame RAAW Jibb - Finish Raw
  • 1x RAAW rear wheel axle
  • 1x Seatpost clamp RAAW
  • 1x Protective film for the Jibb
  • 1x Chainstay Protector
  • 1x Seatstay Protector
  • 1x Down Tube Protector
  • 1x Brake mount 203 mm
  • Full Hardware for shock assembly
  • 11 Zip ties
  • Owners book

Optional headset contains:

  • 1x Headset Acros

Optional shock choice:

  • 1x Fox Float X Factory 2pos lever
  • 1x Fox Float X2 Factory 2pos lever
  • 1x Fox DHX2 Factory 2pos lever incl. Fox SLS spring
  • 1x Öhlins TTX2Air
  • 1x Öhlins TTX22M incl. spring



Geometry

S M L XL
Travel (R/F) r:135
f:150 (+10)		 r:135
f:150 (+10)		 r:135
f:150 (+10)		 r:135
f:150 (+10)
Reach 420 445 470 495
Stack 608 622 636 649
Chain Stay Length 440 440 445 450
BB Drop 35 35 35 35
Seat Tube Length 395 420 445 470
Virtual Seat Tube Angle 77.5 77.5 77.5 77.5
Seat Tube BB Offset 35 35 35
 35
Head Tube Angle 65.5 65.5 65.5 65.5
Wheelbase 1172 1203 1240 1276
Body Height in cm 158 - 170 167 - 180 177 - 190 186 - 199

(all dimensions in mm except for angles)



Specifications

Travel rear/ front 135/ 150 (+10)

Wheel size 29” (740-755mm)

Max tire width 2.6” (66mm)

Tire clearance 84mm

Rear hub 148 x 12

Shifting One-by only, boost, 36t max

BB 73mm BSA / ISCG05

Brake 203mm Postmount

Seat tube diameter 31.6mm inside, 35mm outside

Internal seatpost routing Yes

Seatpost max insert S 205mm / M 230mm / L 255mm / XL 280mm

Headset 44 / 56 Zero stack

Cable routing All external

Tire to seat tube clearance 10 – 18mm (depending on size and tire)

Shock hardware Ball bearings and hardware included

Bearings main pivot 2 x 61808-2RS1 (52 x 40 x 7)

Bearings other pivots 10 x 91903-2RS1 (28 x 15 x 7)

Recommended fork dimensions ATC 560mm – Rake 44mm

Shock dimensions 185 x 55 – Trunnion

Weight 3.9 kg (incl. shock hardware, rear wheel axle and frame protection, w/o shock, size S)

Material AL 6066 T6

Finish options Matt Black and Raw with matt clear coat

Contents

Jibb Frame Kit

  • 1x Frame RAAW Jibb - Finish Raw
  • 1x RAAW rear wheel axle
  • 1x Seatpost clamp RAAW
  • 1x Protective film for the Jibb (if selected)
  • 1x Chainstay Protector
  • 1x Seatstay Protector
  • 1x Down Tube Protector
  • 1x Brake mount 203 mm
  • Full Hardware for shock assembly
  • 11 Zip ties
  • Owners book

Optional headset contains:

  • 1x Headset Acros

Optional shock choice:

  • 1x Fox DPX2 Factory MY2021
  • 1x Fox Float X Factory 2pos lever
  • 1x Fox Float X2 Factory 2pos lever
  • 1x Fox DHX2 Factory 2pos lever incl. Fox SLS spring
  • 1x Formula MOD incl. Titanium Color spring
  • 1x Öhlins TTX2Air
  • 1x Öhlins TTX22m.2 incl. spring
Factory Grade Support Included

If you ride a RAAW, you'll never ride alone. Your frame comes with comprehensive documentation and a direct line to the team that created it.

We're happy to answer all your questions!

Customer Reviews

Based on 57 reviews
86%
(49)
14%
(8)
0%
(0)
0%
(0)
0%
(0)
T
Theody J.A.

Raaw as a company is truly a blessing to us riders who wants to build our very own dream bikes.
The company has exceptional costumer service that will cater us buyers with any queries that we come acroos with.

H
Harris D.

Not only is the Jibb my favorite bike I've owned, it feels immensely balanced and up for any ride I want to go on. The long rear end, tall front end, and neutral-to-steep head angle combine into a bike that feels stable but not boring, capable while climbing, and still quick to turn. I've set all of my PRs on this bike, as well as consistently cleaning technical climbing sections and tight uphill switchbacks in spite of the 450mm chainstays. The bike rides much lighter than the weight would suggest, and will be my only mountain bike until the wheels fall off!

S
Sven
JIBB V1 -unverwüstlich

Ich bin viele Jahre das H3Mk1 von Liteville im Enduro-Aufbau gefahren und habe immer die perfekte Performance bergauf und bergab vereint in einem MTB sowie den pflegeleichten Umgang geliebt! Quasi die "EierlegendeWollMilchSau" mit 90% Spaß beim Fahren und 10% Spaß beim Schrauben.
Aufgrund zunehmender Distanz zwischen verspieltem Geist und alterndem Körper ;-) plus steigender Vorliebe für Airtime, wuchs der Drang nach einem vollgefederten Radl zunehmend.
Das zukünftige MTB sollte aber trotz des Dämpfers den oben genannten Vorlieben gerecht werden. Nach langer Recherche bin ich deshalb immer wieder bei RAAW gelandet. Dann kam die nächste schwere Entscheidung: Madonna oder Jibb!?
Nun fahre ich mein Jibb V1 seit Ende 2022 und kann mir für meine gute Recherche und RAAW für ihr tolles MTB auf die Schulter klopfen!
Alle Erwartungen an eine "vollgefederte EierlegendeWollMilchSau" wurden erfüllt und teilweise sogar übertroffen.
Hervorzuheben sind die Lager des Hinterbaus: ich habe sie bei jedem Service geöffnet und bisher nur einmal gereinigt und neu gefettet, obwohl es nicht nötig gewesen wäre. Sie sahen auch nach einem Jahr intensiver Beanspruchung noch aus wie frisch geserviced! Wahnsinn!
Außerdem ermöglicht es super Traktion, kann aber auch sehr verspielt abheben- je nach Situation und Vorliebe.
Den Charakter meines Jibb würde ich gerne noch etwas mehr in Richtung "verspielt" verschieben (Mullet), aber das gibt das V1 leider nicht her.. das kann das V2 ;-)... mal schauen, was die Zukunft so mit sich bringt....

N
Norman
Jibb v1

Ultra confort, position idéale pour pédaler et enquiller du kilomètre malgré le poids un peu élevé. Très robuste

M
Matti S.
Top Bike

Rundum zufrieden, super Performance und Haltbarkeit

Load More

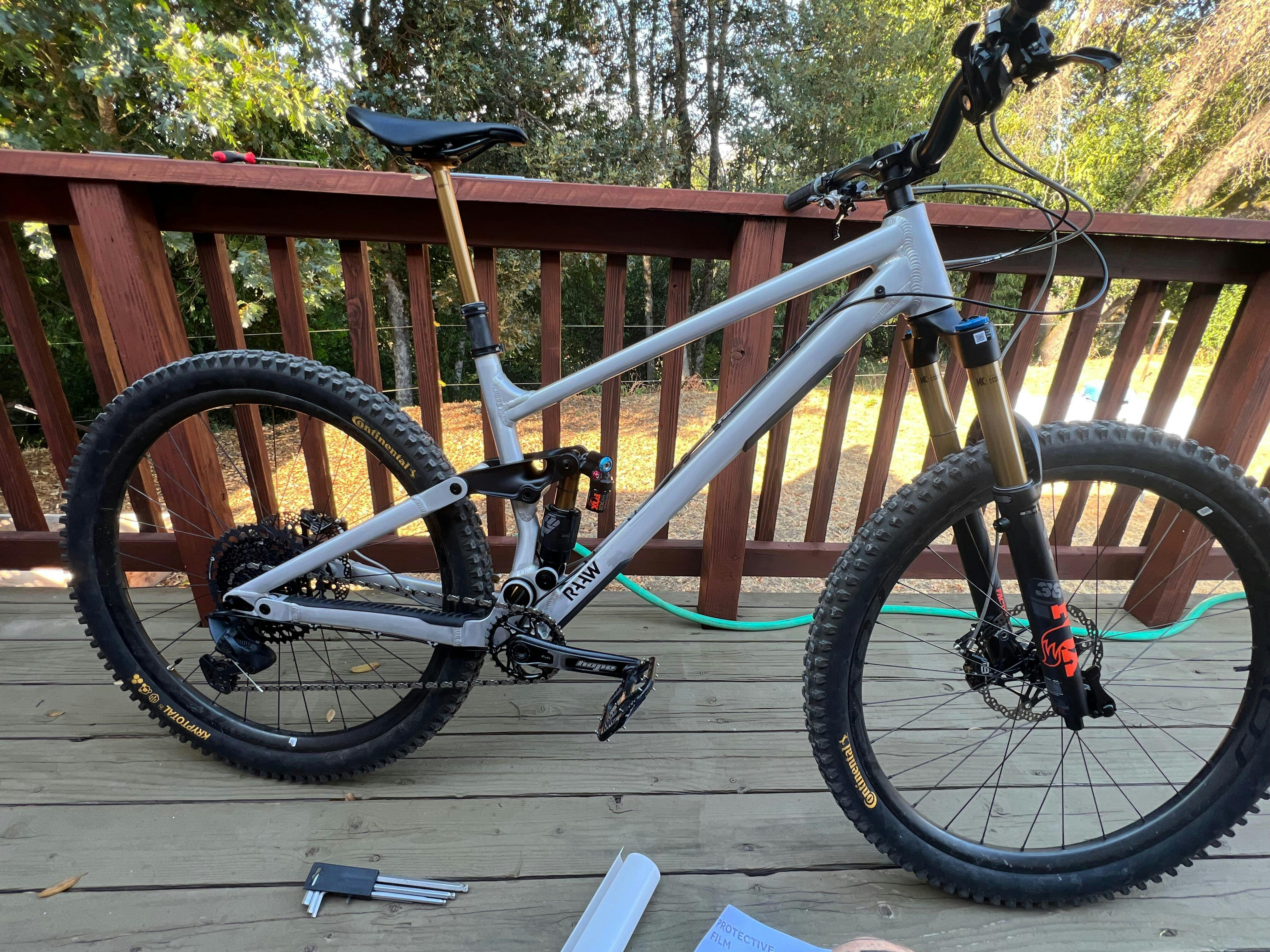

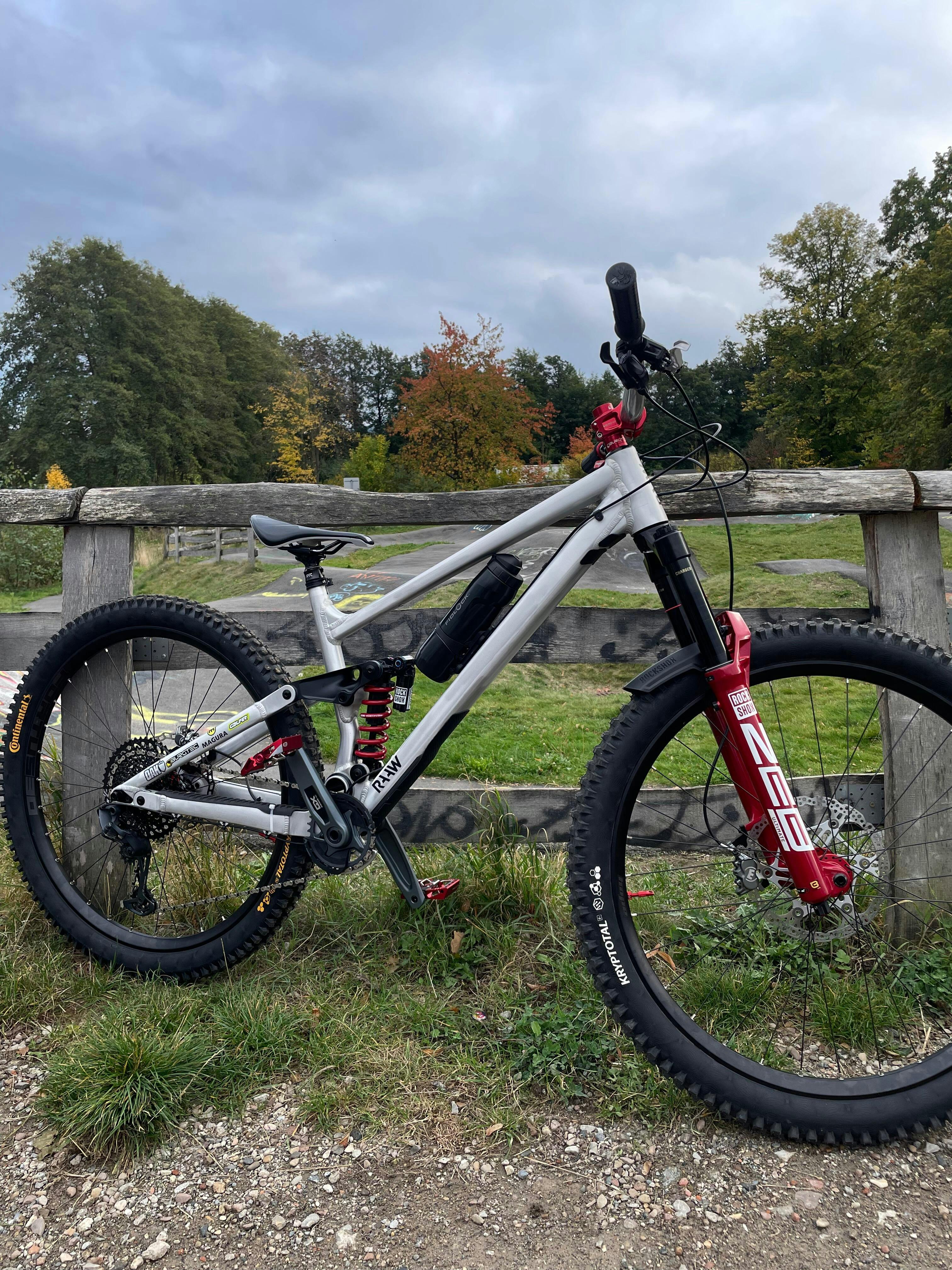

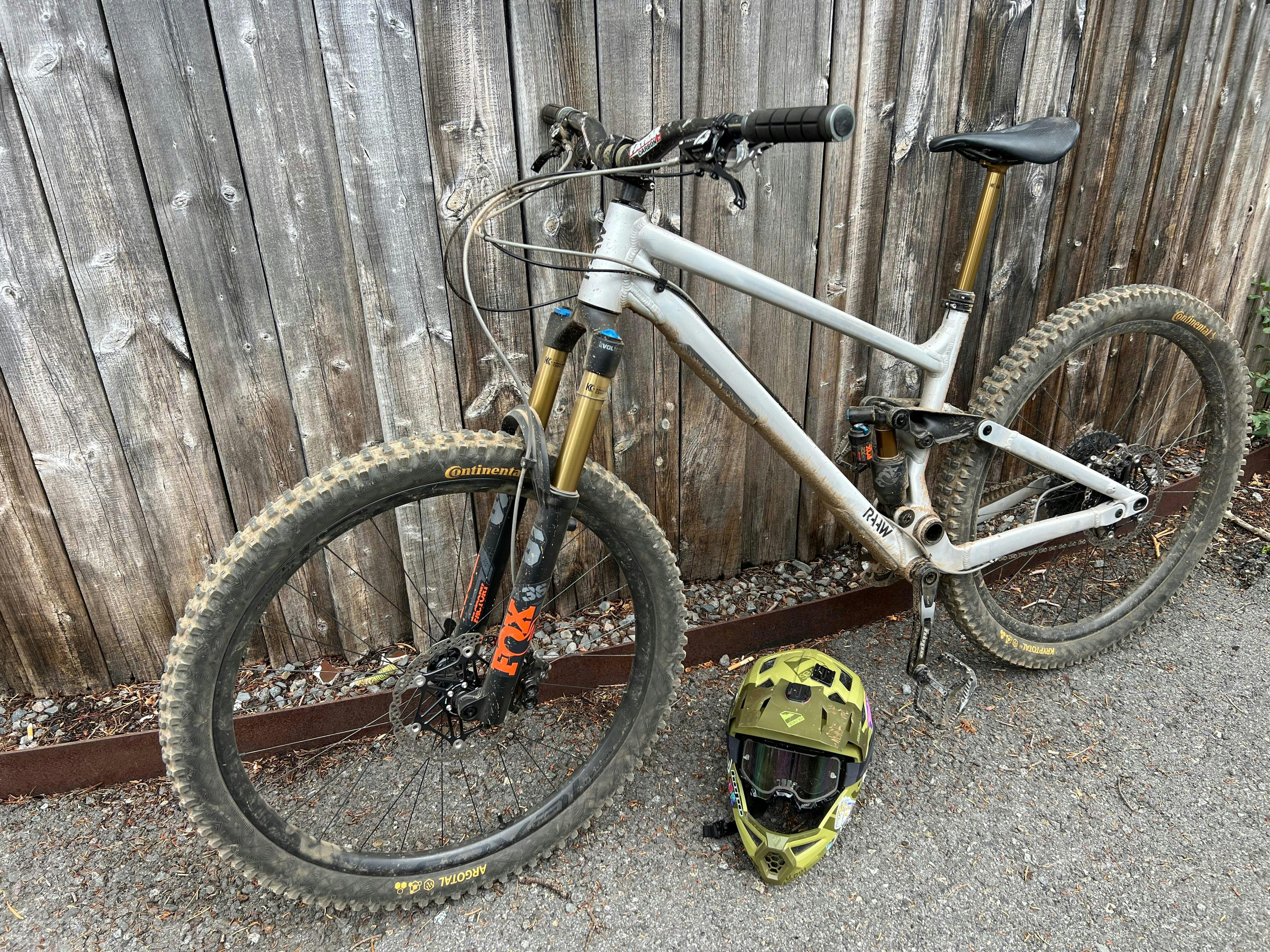

Community Builds

Browse builds from the community with this frame from our community or submit your own here.

All Jibb V1 Builds
