Madonna V2.2 Frame Kit - Black

Regular price £1,280.00 Sale price £1,828.00

local taxes may apply (learn more)

shipping calculated at checkout

Size and Rocker
Shock
Headset
Spring Rate
Spring Rate
Spring Rate
Protective film

Low stock, order soon!

Madonna V2.2 Frame Kit - Black

The Madonna is the bike that started our journey in 2016. It’s made for the fastest and roughest tracks, while also being a great climber. The Madonna puts a high focus on durability and usability and really shines with a very composed and balanced character out on the trails.

If you want to learn more about the shock choice or the two different rocker link options, you can find all details about the Madonna V2.2 on this page.

The frames are regularly available with the rocker link options shown in the selection on the side. If you prefer a different rocker link, please send us an e-mail to hello@raawmtb.com and we will check the availability of the preferred configuration.

Geometry
S M L XL
Travel (R/F) r:160
f:160/170
r:160
f:170/180
r:160
f:170/180
r:160
f:170/180
Reach 430 455 480 505
Stack 621 643 657 670
Chain Stay Length 440 440 445 450
BB Drop 35 35 35 35
Seat Tube Length 395 420 445 470
Virtual Seat Tube Angle 77.2 77 78.3 78.2
Seat Tube BB Offset 58 58 50
50
Head Tube Angle 64.5 64.5 64.5 64.5
Wheelbase 1197 1233 1269 1305
Body Height in cm 158 - 170 167 - 180 177 - 190 186 - 199

(all dimensions in mm except for angles)

Specifications

Travel rear / front 160mm / 170mm (S 160mm)
Wheel size 29” (740-755mm)
Max tire width 2.6” (66mm)
Tire clearance 84mm
Rear hub 148 x 12
Shifting One-by only, boost, 36t max
BB 73mm BSA / ISCG05
Brake 203mm Postmount
Seat tube diameter 31.6mm inside, 35mm outside
Internal seatpost routing Yes
Seatpost max insert S 200mm / M 225mm / L 250mm / XL 275mm
Headset 44 / 56 Zero stack
Cable routing All external
Tire to seat tube clearance 10 – 18mm (depending on size and tire)
Shock hardware Ball bearings and hardware included
Bearings main pivot 2 x 61808-2RS1 (52 x 40 x 7)
Bearings other pivots 10 x 91903-2RS1 (28 x 15 x 7)
Recommended fork dimensions ATC 580mm (S 570mm) – Rake 44mm
Shock dimensions 205 x 60 or 205 x 65 – Trunnion
Weight 3.9 kg (incl. shock hardware, rear wheel axle and frame protection, w/o shock, size S)
Material AL 6066 T6
Colours Matt Black and raw with matt clear coat

Shock Options & compatibility

You want to use a different shock? We can only guarantee full compatibility with the Fox and Öhlins models we offer and recommend. However, the Madonna frame does offer ample clearance for almost all shocks. Only if the shock body or reservoir is too big it might interfere with the downtube or lower shock mount at full travel. You can find more information on the support page under "Compatibility information".

Contents

Madonna V2.2 Frame Kit

  • 1x Frame RAAW Madonna V2.2 - Finish Black
  • 1x RAAW rear wheel axle
  • 1x Seatpost clamp RAAW
  • 1x Protective film for the Madonna V2.2
  • 1x Chainstay Protector
  • 1x Seatstay Protector
  • 1x Down Tube Protector
  • 1x Brake mount 203 mm
  • Full Hardware for shock assembly
  • 11 Zip ties
  • Owners book

Optional headset contains:

  • 1x Headset Acros
  • 1x Headset Cane Creek - Hellbender 70

Optional shock choice:

  • 1x Öhlins TTX22M Coil incl. spring
  • 1x Öhlins TTX2 Air
  • 1x Fox Float X2 Factory 2pos lever
  • 1x Fox DHX2 Factory 2pos lever incl. Fox SLS spring



Geometry

S M L XL
Travel (R/F) r:160
f:160/170
r:160
f:170/180
r:160
f:170/180
r:160
f:170/180
Reach 430 455 480 505
Stack 621 643 657 670
Chain Stay Length 440 440 445 450
BB Drop 35 35 35 35
Seat Tube Length 395 420 445 470
Virtual Seat Tube Angle 77.2 77 78.3 78.2
Seat Tube BB Offset 58 58 50
50
Head Tube Angle 64.5 64.5 64.5 64.5
Wheelbase 1197 1233 1269 1305
Body Height in cm 158 - 170 167 - 180 177 - 190 186 - 199

(all dimensions in mm except for angles)

Specifications

Travel rear / front 160mm / 170mm (S 160mm)

Wheel size 29” (740-755mm)

Max tire width 2.6” (66mm)

Tire clearance 84mm

Rear hub 148 x 12

Shifting One-by only, boost, 36t max

BB 73mm BSA / ISCG05

Brake 203mm Postmount

Seat tube diameter 31.6mm inside, 35mm outside

Internal seatpost routing Yes

Seatpost max insert S 200mm / M 225mm / L 250mm / XL 275mm

Headset 44 / 56 Zero stack

Cable routing All external

Tire to seat tube clearance 10 – 18mm (depending on size and tire)

Shock hardware Ball bearings and hardware included

Bearings main pivot 2 x 61808-2RS1 (52 x 40 x 7)

Bearings other pivots 10 x 91903-2RS1 (28 x 15 x 7)

Recommended fork dimensions ATC 580mm (S 570mm) – Rake 44mm

Shock dimensions 205 x 60 or 205 x 65 – Trunnion

Weight 3.9 kg (incl. shock hardware, rear wheel axle and frame protection, w/o shock, size S)

Material AL 6066 T6

Finish options Matt Black and raw with matt clear coat

Shock Options & compatibility

You want to use a different shock? We can only guarantee full compatibility with the Fox and Öhlins models we offer and recommend. However, the Madonna frame does offer ample clearance for almost all shocks. Only if the shock body or reservoir is too big it might interfere with the downtube or lower shock mount at full travel. You can find more information on the support page under "Compatibility information".

Contents

Madonna V2.2 Frame Kit

  • 1x Frame RAAW Madonna V2.2 - Finish Black
  • 1x RAAW rear wheel axle
  • 1x Seatpost clamp RAAW
  • 1x Protective film for the Madonna V2.2 (if selected)
  • 1x Chainstay Protector
  • 1x Seatstay Protector
  • 1x Down Tube Protector
  • 1x Brake mount 203 mm
  • Full Hardware for shock assembly
  • 11 Zip ties
  • Owners book

Optional headset contains:

  • 1x Headset Acros

Optional shock choice:

  • 1x Öhlins TTX22m.2 Coil incl. spring
  • 1x Öhlins TTX2 Air
  • 1x Fox Float X2 Factory 2pos lever
  • 1x Fox DHX2 Factory 2pos lever incl. Fox SLS spring

Customer Reviews

Based on 24 reviews
100%
(24)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
E
Ethan H.
Balance

Love it! Most balanced bike I’ve ridden. You guys really did some magic with the geometry. Climbs fine. Not Uber light or efficient, but comfortable climbing position and efficient enough to do big days. Nice that don’t have to slide forward on the seat as much on steeper sections. Really good traction in climbs. Pedal strikes are an issue, but switching to shorter cranks helps. Descending is amazing! Plush, planted, but not dead. Great traction on front wheel (unlike some super slack bikes). Cornering is the best I’ve ridden. Braking traction is also best I’ve ridden. Big sweet spot for positioning. Could not be more impressed!

Thanks again,

Ethan

J
Julian F.

I haven’t spent enough time on it yet, but the first ride was a ton of fun! It’s a smooth bike.

J
Joe G.

This is the best bike I have ridden. The ride has exceeded my expectations. I spent a lot of time deciding what my next bike would be but the combination of positive reviews as well as how responsive Reuben and Felix were with my questions really made it the right choice. Now after getting some rides in on the bike there's no question this was the correct choice for me. It really does well on steep and rough trails. If your focus is on mellow terrain there may be better choices but if you are looking for something that will give you the confidence to go into a steep chute or some rough chunder I can't think of a better bike to have.

U
Udo-Bela
Pure Begeisterung 😅👍🏻

Wo soll Ich anfangen 🤔?
Das Motto bei jedem meiner Aufbauten war immer „EINS FÜR ALLES“.
Wr davor auf nem Liteville 601 auf 27,5er Laufräder unterwegs, war sehr zufrieden und genau mein Ding.
Ich muss auch ehrlich sagen dass ich einem 29er sehr skeptisch gegenüber stand, dachte immer an die Trägheit wo immer wieder mal bei nem Smalltalk am Trail erwähnt wurde…
Ich muss ehrlich gestehen die Jungs von Raaw haben mich vom Gegenteil überzeugt einfach ein mega gelungenes Bike.
Bin seit Tag 1 begeistert 😄

B
Brano B.
Madonna v2.2 Final Edition

Madonna v2.2 is my first 29er and it fulfilled all of my expectations. Despite being longer and heavier, with the Ohlins coil shock it's even more poppy than my previous 27.5 ride.
I wanted a bike with higher stack and Madonna gave me more than +5cm, so she feels almost like a DH rig.
I went for a size L. I also wanted something longer, which I was not sure with 480mm reach at first, but the high stack lets you use fewer spacers under the stem, so it actually feels a lot longer than my previous 470mm reach bike with a lot of spacers and also handles a lot better due to bars being in proper position.
Maybe she is not the lightest one but I'm no weight weenie and prefer durability and quality of manufacturing. I was really blown away when I unpacked the frame. The welds are really looking great and solid and the build is just bomb proof. My previous bike looks like a kids toy next to her.
Also the whole purchasing experience was really nice. Before ordering the frame, RAAW guys immediately replied to all my questions about rocker, suspension and other technical details.
Then, I placed the order early morning one day and the same day in the afternoon I've already received a notification, it was shipped. With the final edition, protective wrap was included, which is also really nice thing to have not to mention the welcome package I've received after I registered the frame.
Now with the 30% discount it's a no brainer, just get her while the stock lasts.

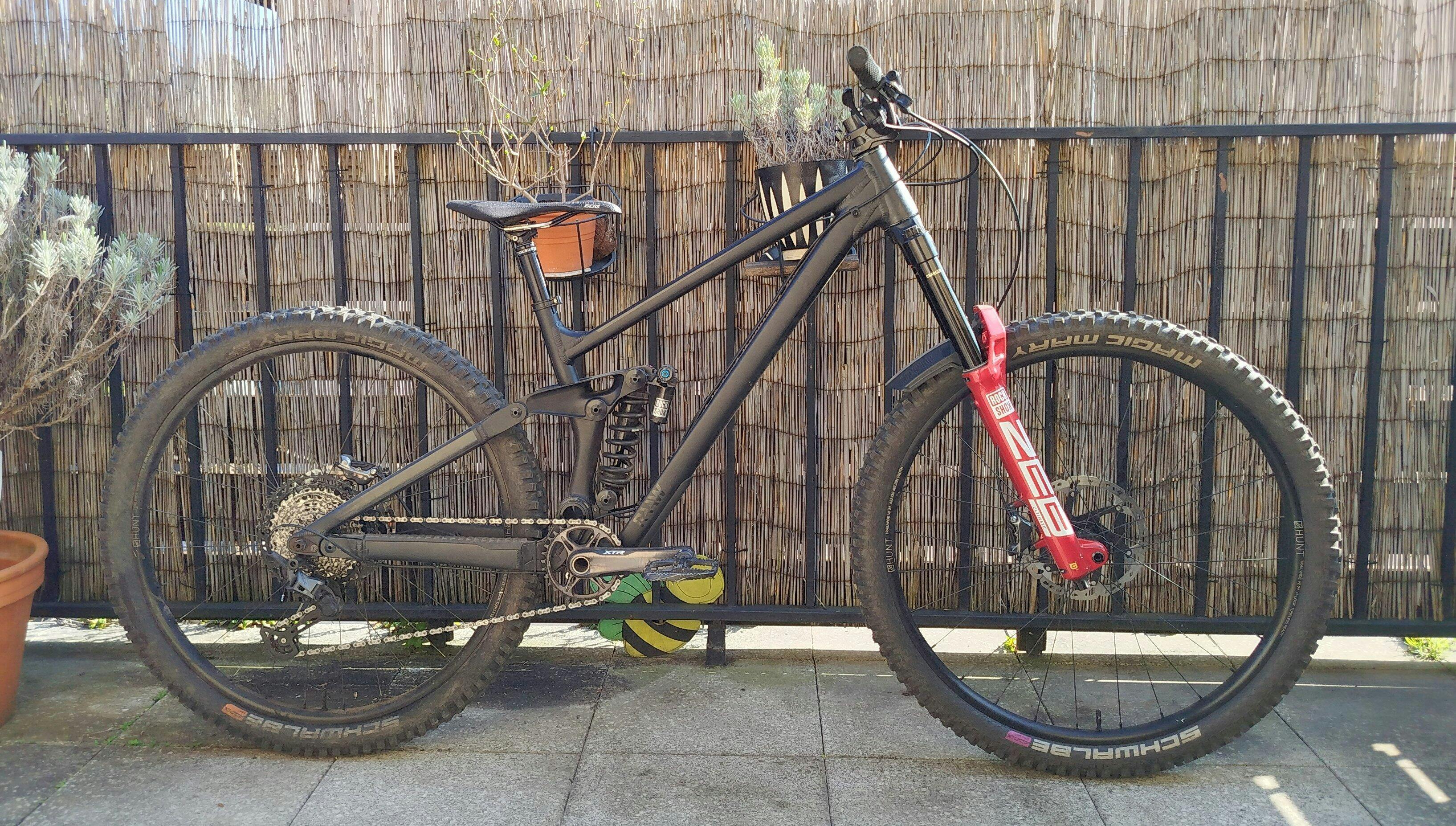

Community Builds
