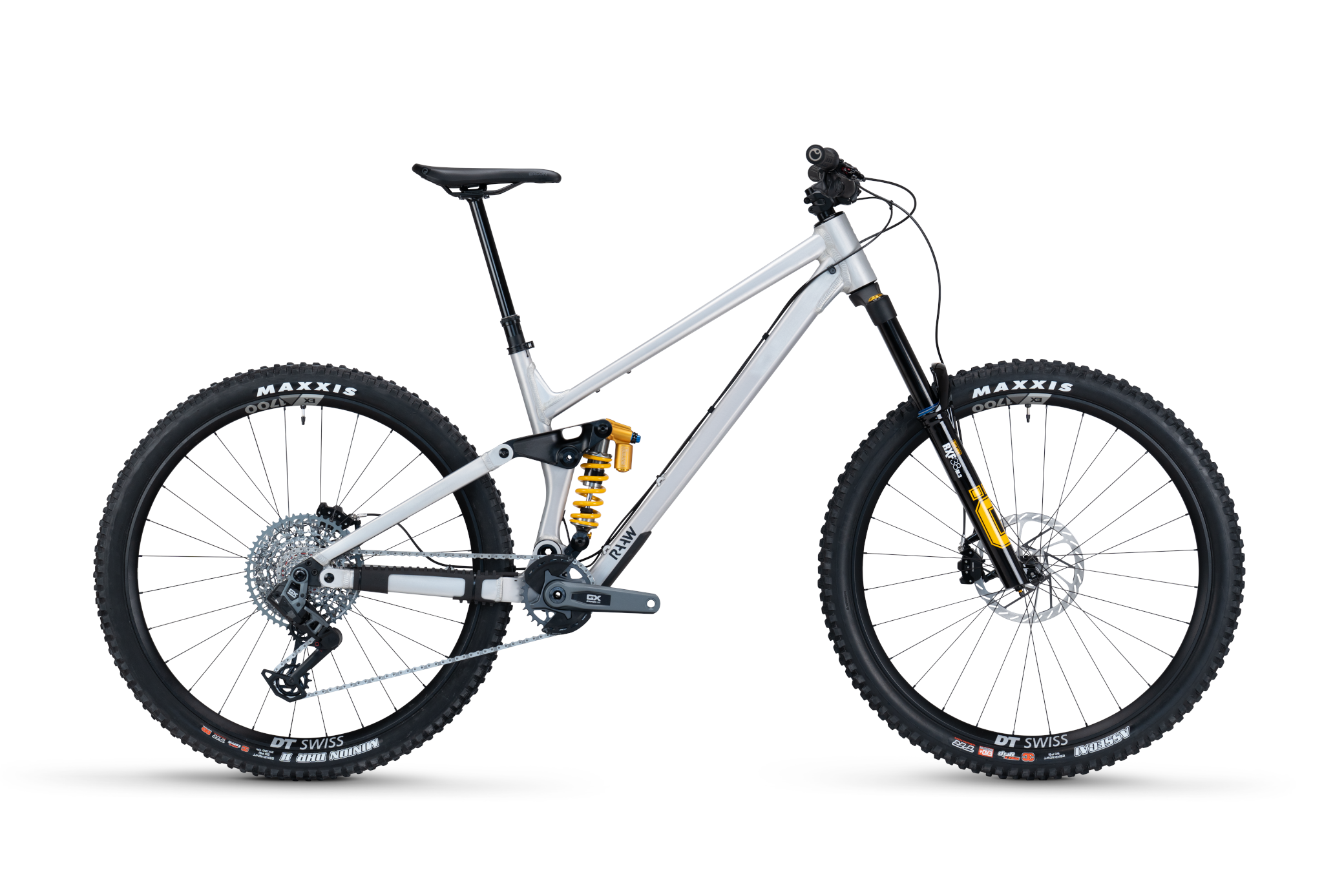

Name: Madonna V3.2 Öhlins Complete Bike
Brand: RAAW Mountain Bikes
SKU: MAV32SM60RAWRCO
Price: 6490.0 EUR
Availability: InStock

Bike Details

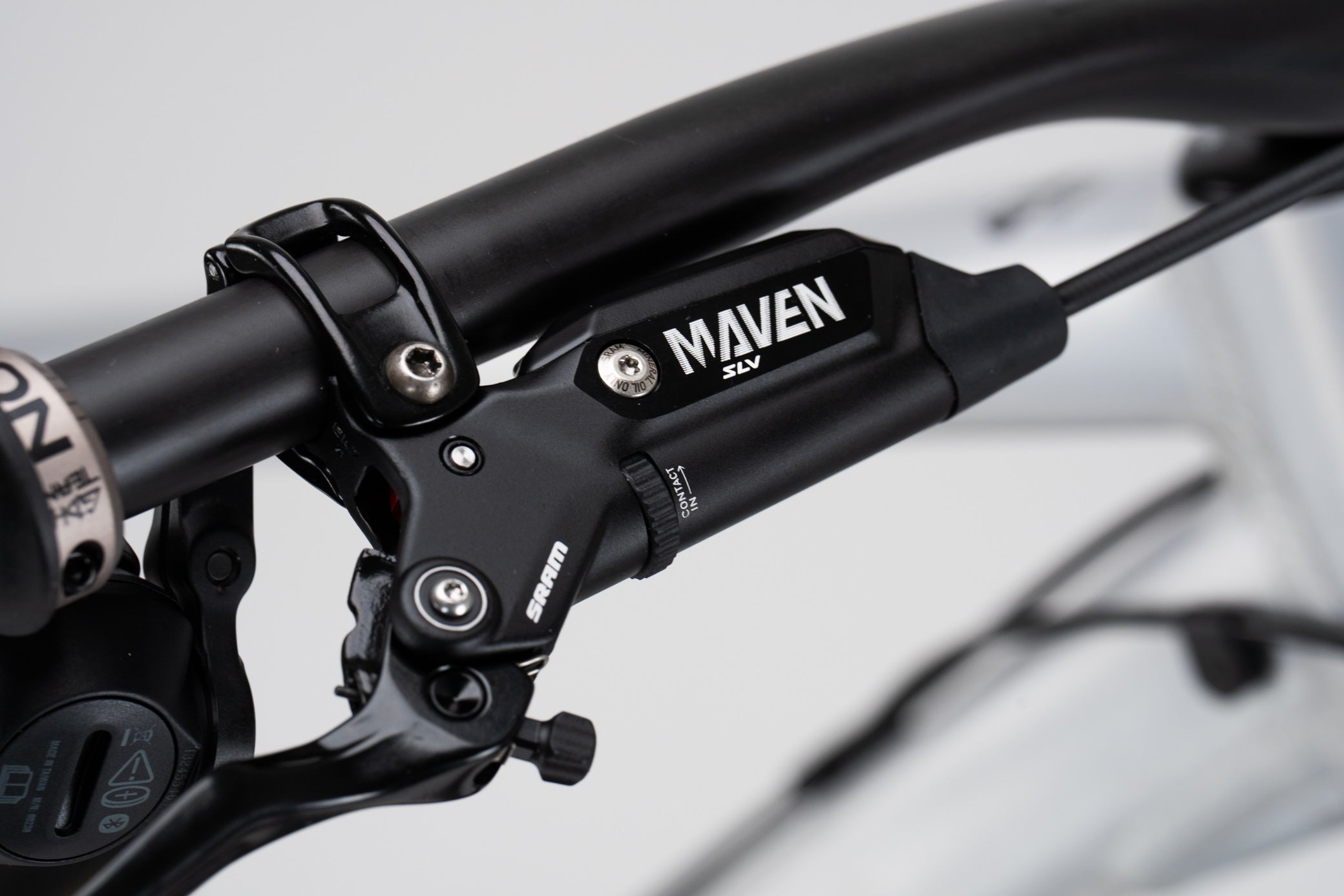

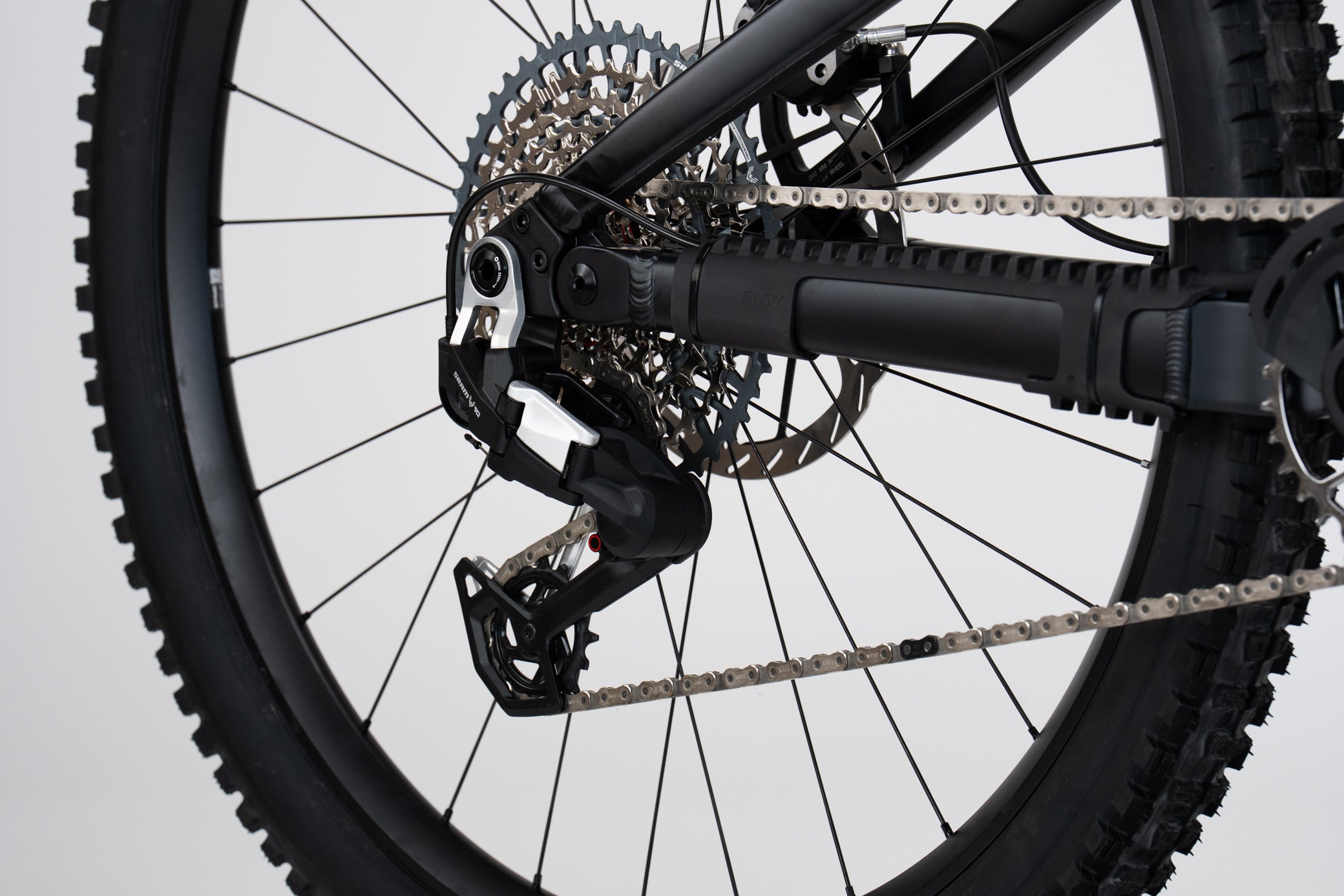

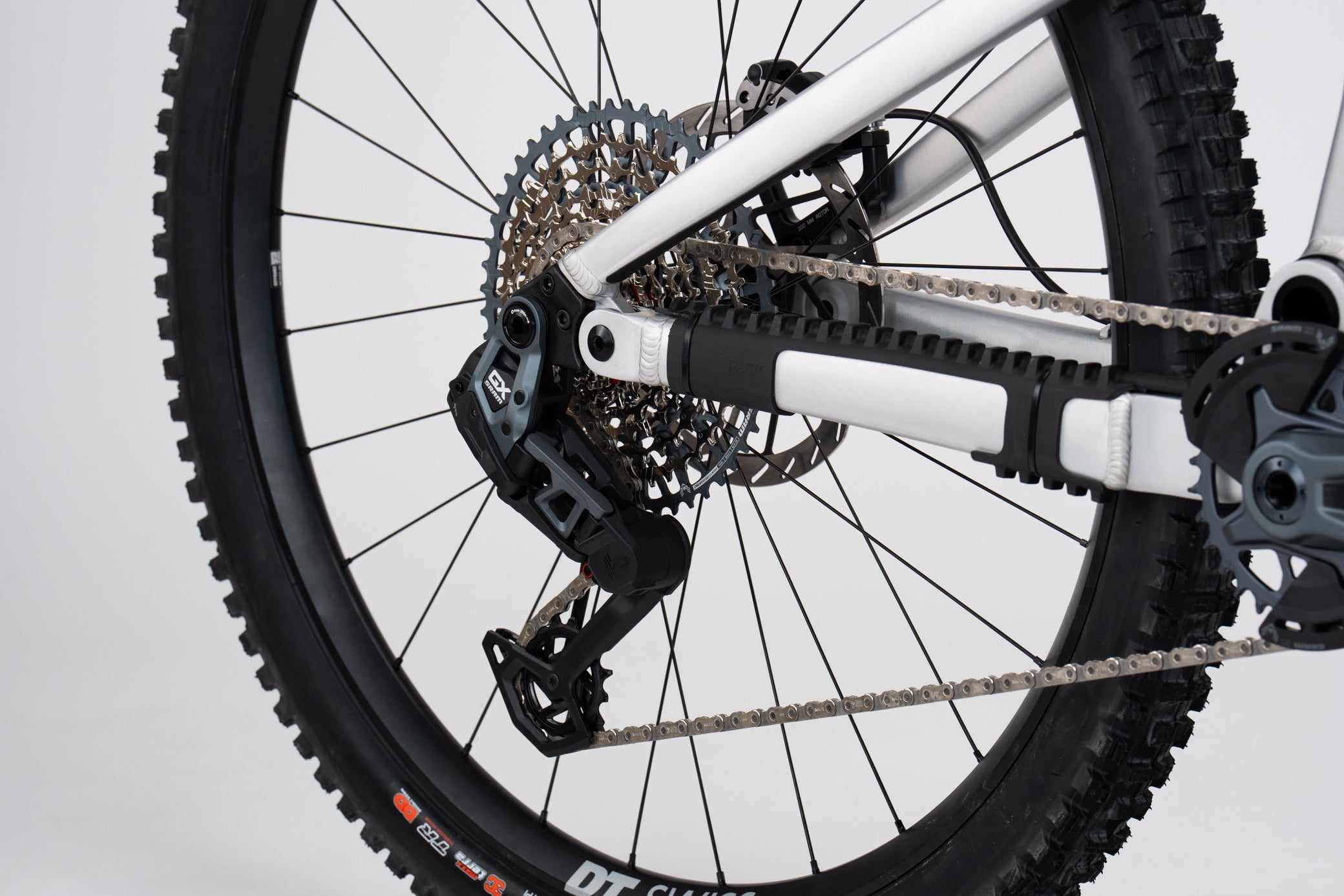

SRAM DRIVETRAIN AND BRAKES

Mechanical or wireless shifting? The choice is yours with SRAM Eagle Transmission drivetrains. Maven brakes are a true favourite at RAAW HQ—delivering tons of power and excellent modulation.

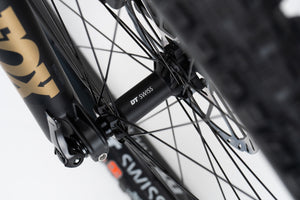

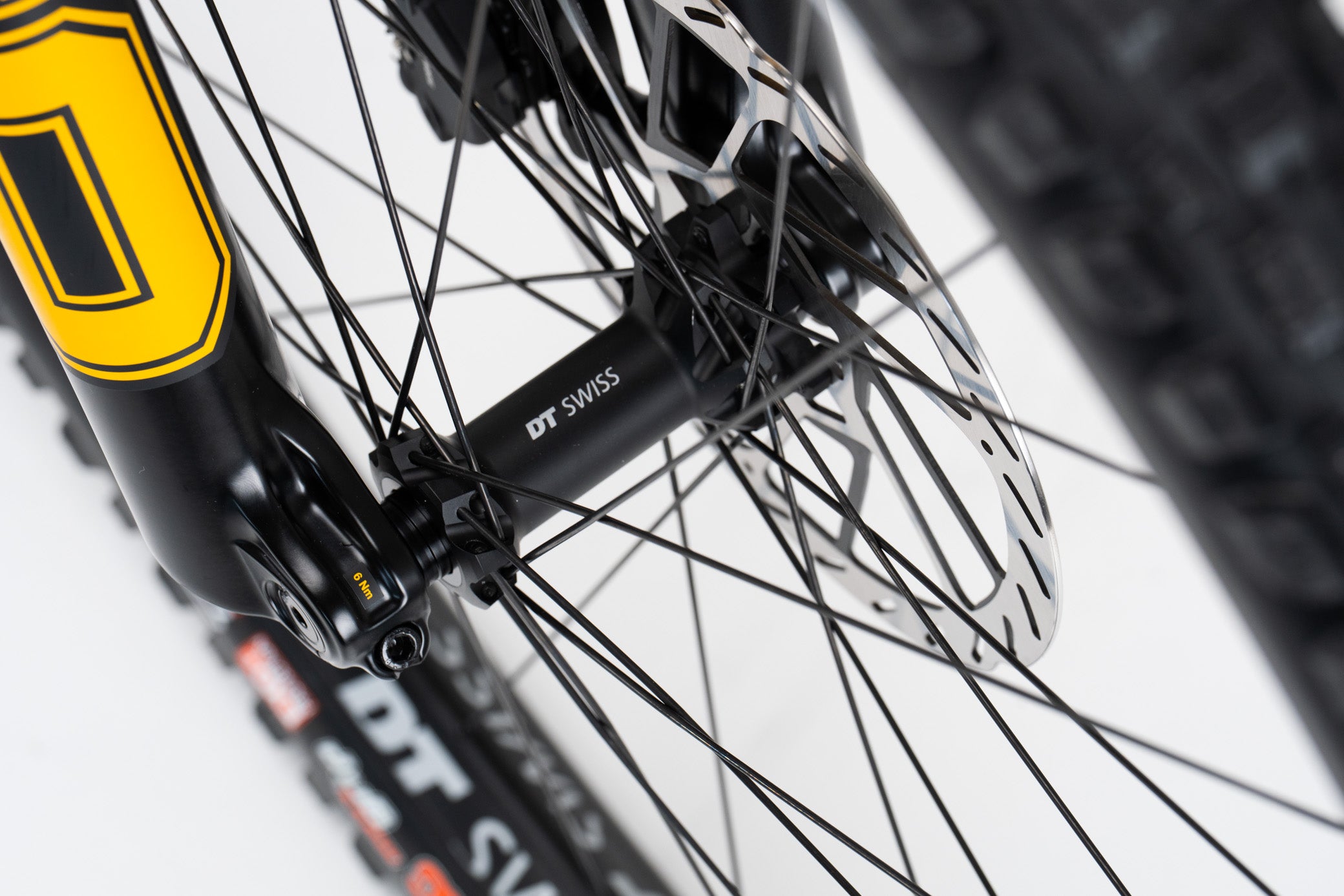

DT Swiss or Newmen Wheels

DT Swiss and Newmen both offer solid, no-nonsense options for the wheelset. Sturdy aluminium rims, high-quality hubs, and premium build quality—the choice is yours.

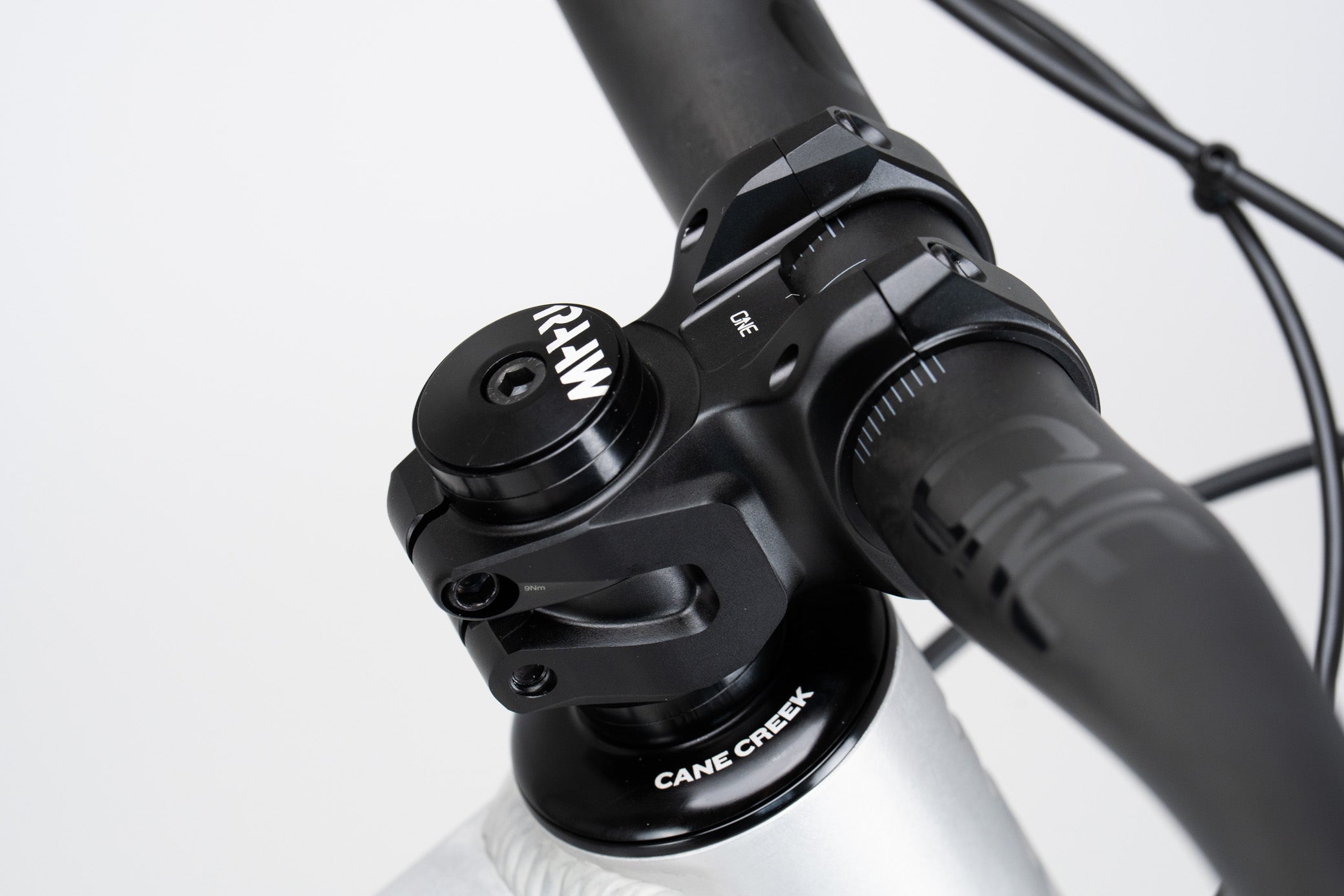

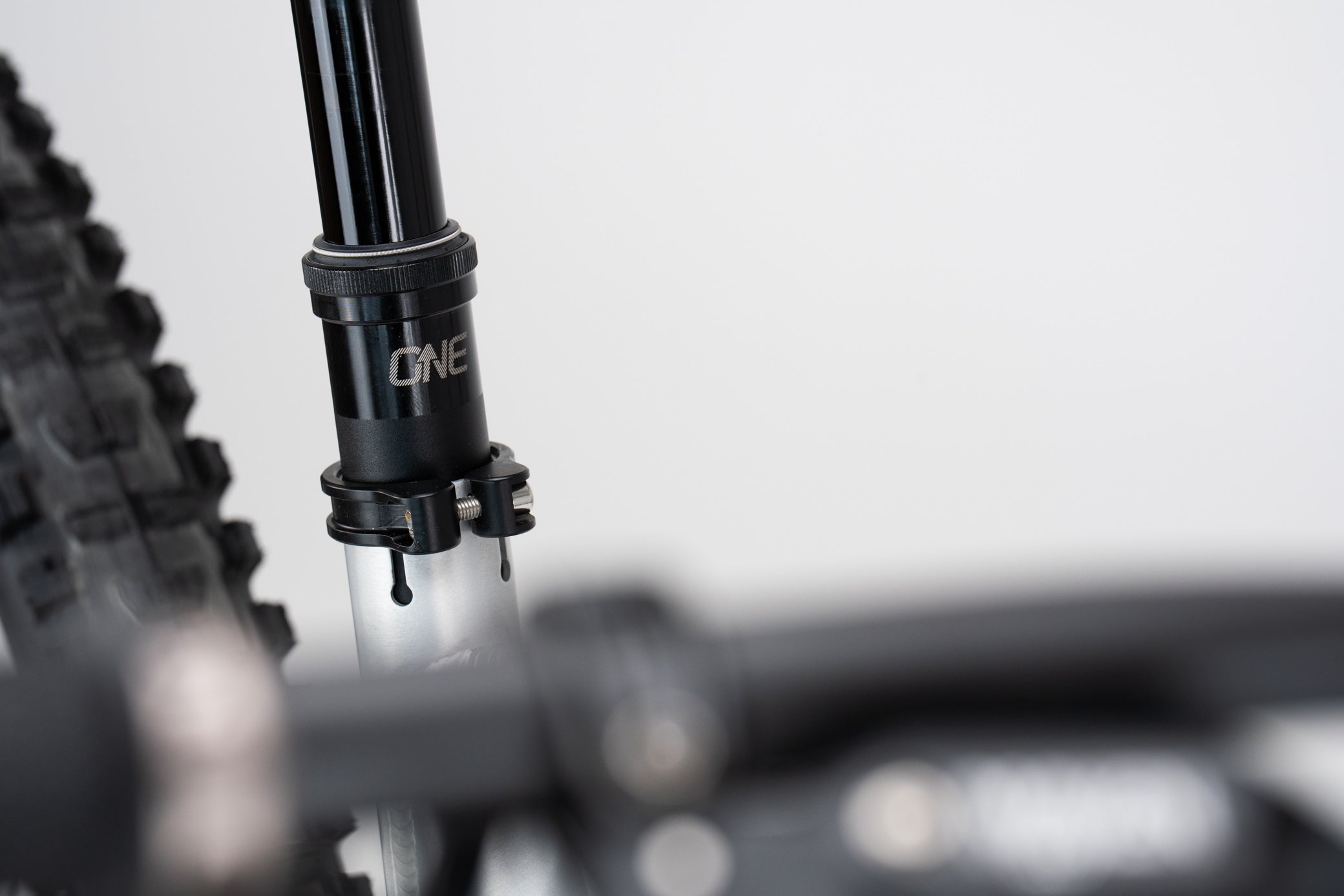

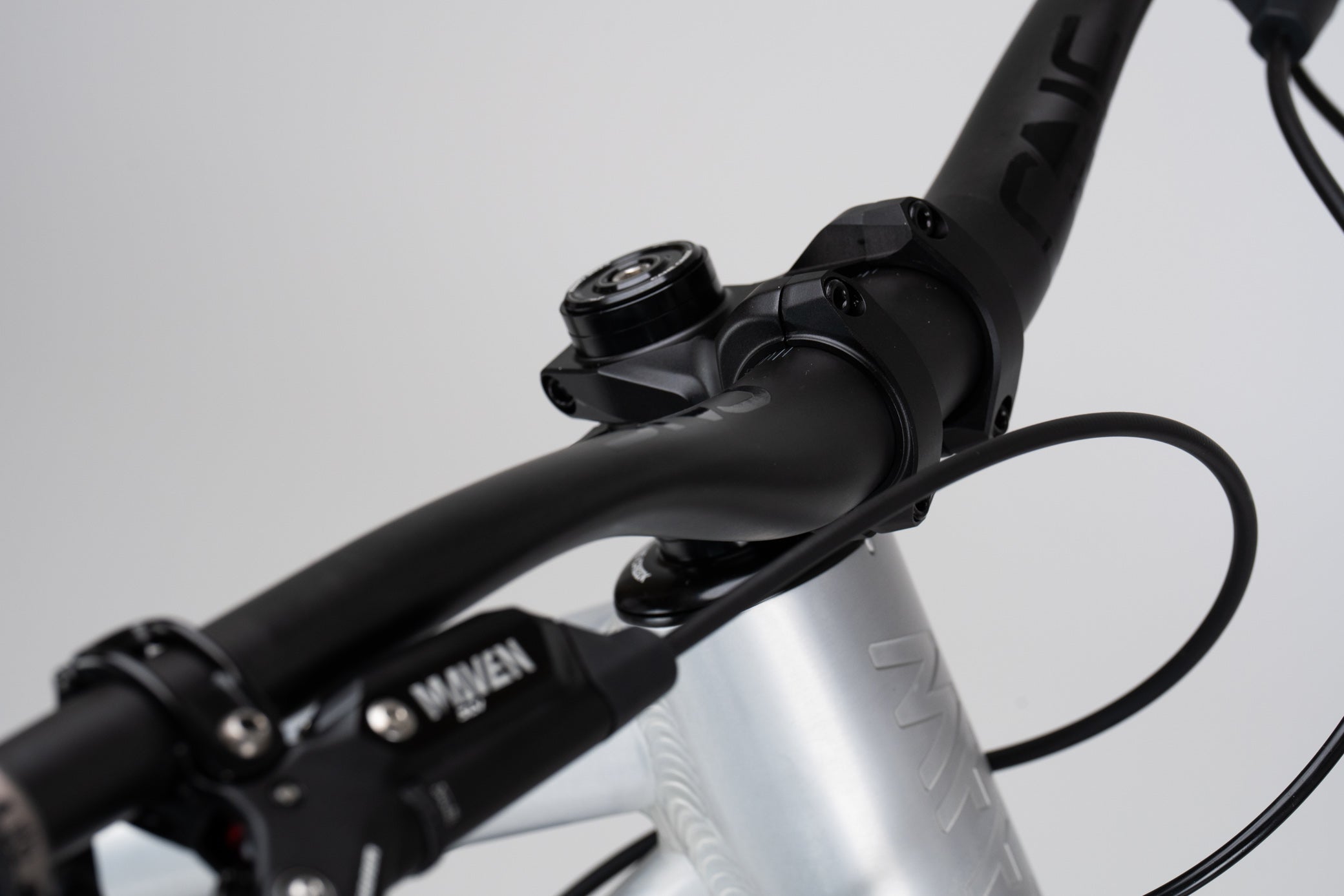

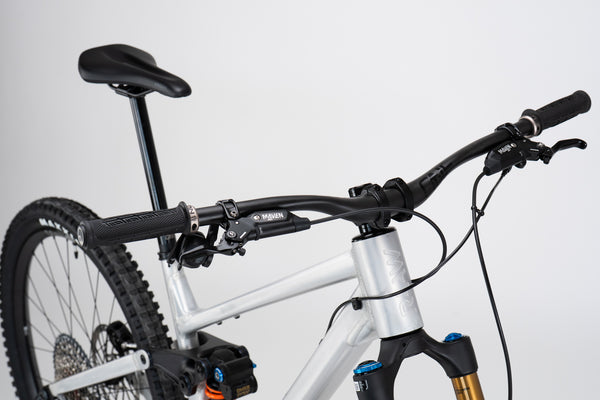

OneUp Cockpit and Dropper

Founded and based in Squamish, Canada—a place close to our hearts—OneUp delivers some of the best bars, stems, and droppers. We offer a wide range of bar heights, stem lengths, and dropper travel options. Not sure which spec is right for you? Find more information about the cockpit here, and a guide to choosing the right dropper length here.

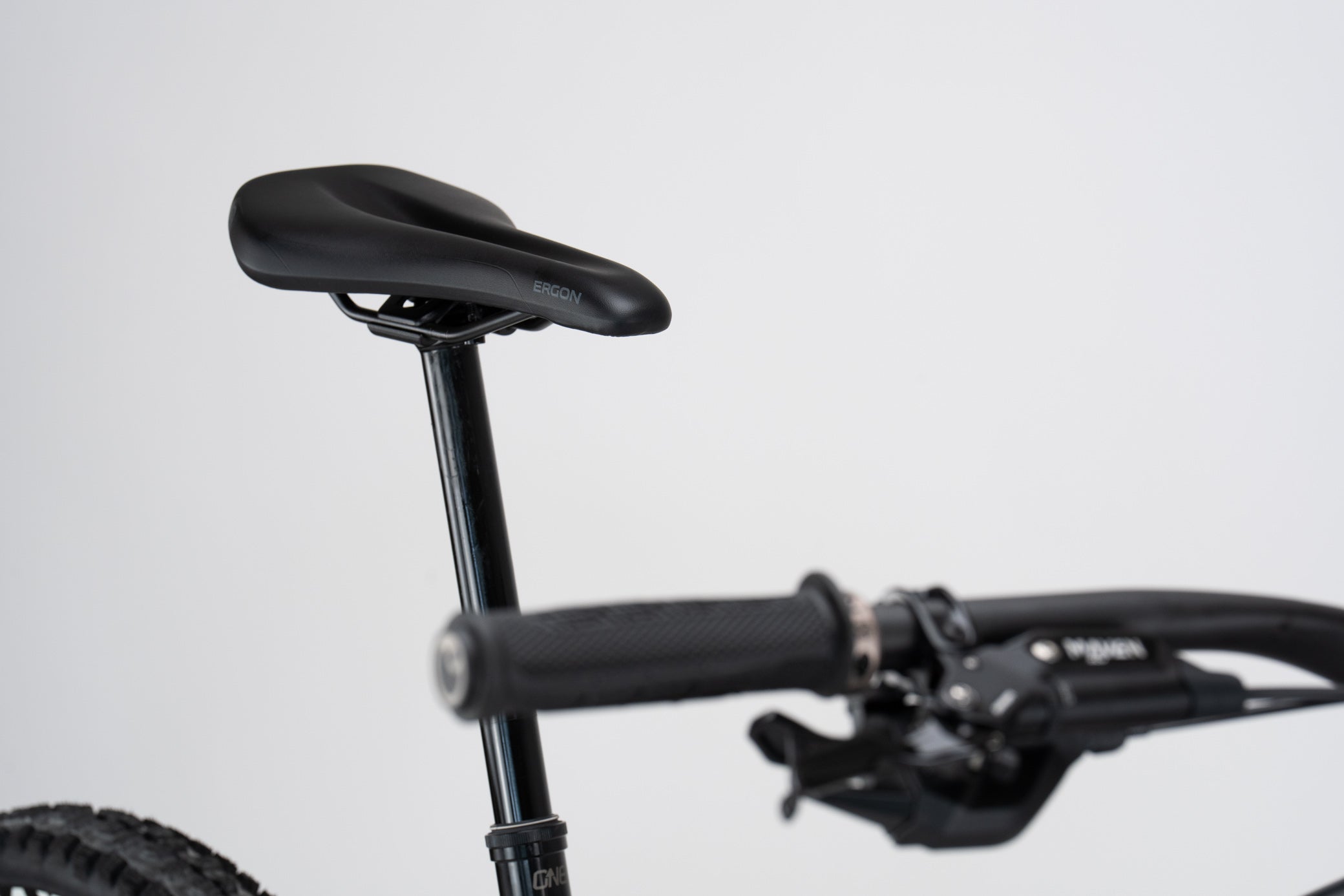

Ergon Saddle and Grips

The touchpoints on our bikes come from Ergon. The German company is known for its benchmark ergonomics and quality.

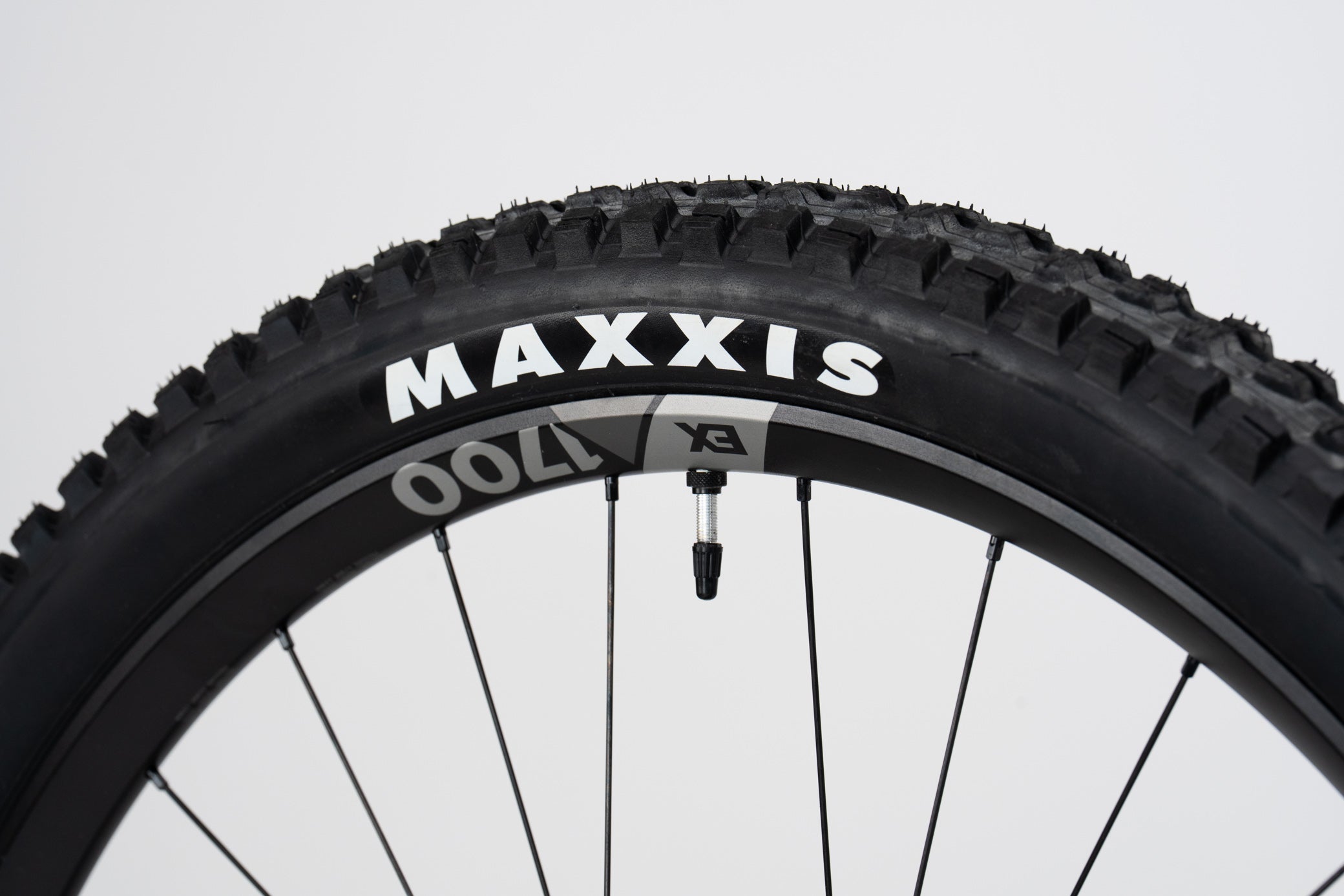

Maxxis Tires

Tires come in many shapes and sizes, but we always come back to Maxxis. The DHR II and Assegai have both achieved legendary status, striking the right balance between grip, rolling speed, and durability.

Fox and Öhlins Suspension

Fox has been our suspension partner since day one. With deep roots in racing and a constant drive for innovation, Fox stands for proven performance and a wide range of adjustment options to fine-tune your setup.

Öhlins might as well be the Swedish word for gold. With a long heritage and strong racing roots, Öhlins stands for premium suspension performance.

Every shock is tuned to perfectly match our kinematics, and with the Fox DHX2 and Öhlins TTX22M.2 coil shock, we offer a wide range of spring rates. Extensive setup guides help you get up to speed quickly, and our optional Preset Suspension service makes your bike ready to ride straight out of the box, with all settings dialed in for your rider weight.

Control how much of each overlapping image is shown

Öhlins - Eagle 90 Transmission

Fox Factory - GX Eagle Transmission

Travel rear/front160 / 170 mm
Wheel size29” (740–755 mm) (27,5” rear option)
Max tyre width2.6” (66 mm)
Rear hub148*12
ShiftingOne-by only, boost, 36t max (UDH / T-Type compatible)
BB73 mm BSA / ISCG05
Brake200 +3 mm post mount
Seat tube diameter31.6 mm inside, 35 mm outside
Internal seatpost routingYes
Seatpost max insertS 220 mm / M 245 mm / L 268 mm / XL & XXL 294 mm
Headset56 / 56 Zero stack

Cable routingAll external
Shock hardwareBall bearings and hardware included
Bearings main pivot2 x 6906-2RS1 (47*30*9)
Bearings rocker pivot2 x 6002-2RS1 (32*15*9)
Bearings other pivots8 x 6902-2RS1 (28*15*7)
Recommended fork dimensionsATC 587,7 mm – Offset 44 mm
Shock dimensions205*65 / 205*60 – Trunnion
Weight3.9 kg (incl. all hardware, w/o shock, size M)
MaterialAL 6066 T6
Finish optionsMatt black and raw with matt clear coat

	S	M	L	XL	XXL
Reach	430	455	480	505	530
Stack	637	650	664	677	677
Chainstay Length	445	445	450	455	455
BB Drop	35	35	35	35	35
BB Height	335–340	335–340	335–340	335–340	335–340
Seat Tube Length	395	420	445	470	470
Virtual Seat Tube Angle	77	77	77	78	78
Actual Seat Tube Angle	72	72	74	74	74
Horizontal Top Tube	576	605	618	647	672
Head Tube Length	100	115	130	145	145
Head Tube Angle	64	64	64	64	64
Fork Length	587,7	587,7	587,7	587,7	587,7
Fork Offset	44	44	44	44	44
Wheelbase	1216	1248	1284	1320	1346
Body Height in cm	158–170	167–180	177–190	186–199	195–208
Recommended Stem Length	35–50	35–50	35–50	35–50	35–50
Recommended Crank Length	165 / 170	165 / 170	165 / 170	165 / 170	165 / 170

(all dimensions are in mm except for angles, which are in degrees)

More Media Reviews

After recently owning three carbon bikes and having epoxy issues with my last two (got them warrantied, but it's a hassle to deal with), I have decided to try something different, going back to the roots of mountain bike history and aiming for durability.

Although weighing 18kg and probably being the heaviest bike I've owned in the last decade, it's so comfortable, quiet, and planted that I forgive it for that. I'm actually using the Madonna for everything, from list assist day long rides to pedal enduro laps and XC rides with my dog. Despite the long travel, this is a do-it-all bike!

Erstes Bike von Raaw

Das Madonna war echt easy und cool aufzubauen. Einfach nur Mega .

Been riding Raaw Madonna’s for 5 and a half years, I didn’t consider any other frame when I upgraded to V3 2 months ago, best bikes ever!!

Das ist mein erstes RAAW. Easy build. Nach der ersten Probefahrt im Schnee ein super Bike.

Good so far

182cm height on a size large, full 29, rocker 60, 42mm stem, 35mm rise bars, fox 38/float X2 ‘26. Fit is very comfortable both seated and standing. Coming from a 2022 firebird 29, which feels more lively and willing to get in the air than the V3, as well as feeling like a generally faster bike downhill. Cornering is where the two bikes feel quite different with the V3 calmly and safely able to break traction and drift both wheels with less sensitivity to body position, while the pivot requires a more specific rider position to prevent losing front end grip. Not surprisingly, the V3 also feels like the preferred bike in steeper and faster terrain. I am a high stack believer at this point. The rear center length has been a welcomed change too from the firebird and despite being 17mm longer, the instances of noticing it in a negative way have been virtually nonexistent. A 450 rear and long WB can still get through tight corners just fine with some mild body position changes. The V3 is dead quiet while descending and very muted feeling. The ‘26 X2 has way more mid stroke support and noticeable changes with each click than outgoing models. After burnishing the 38’s lower bushings I’ll also say the Grip X2 (vs Grip2) shares the same supportive characteristics as the new shock, which for me as a lighter rider than some isn’t always of benefit. With 165mm cranks and a 30T ring I spend most of my climbs in the largest cog. The bike is not sluggish at all, it just weighs more than what I’m used to at ~42lbs with pedals (not including tube, bottle, OneUp tool). I had some minor shipping issues after ordering and RAAW’s team was really great to work with. The bike seems very well thought out and durable so far.
