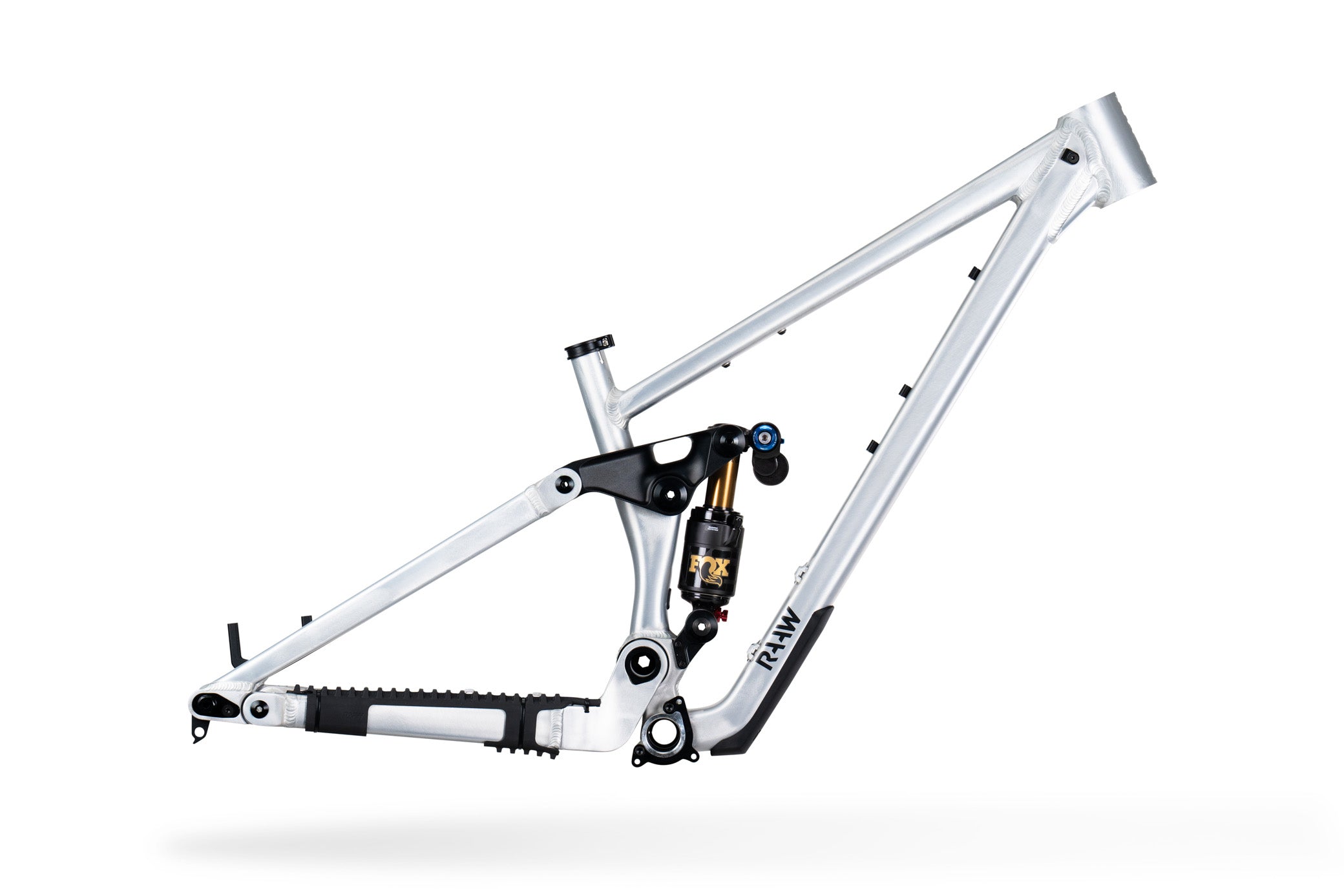

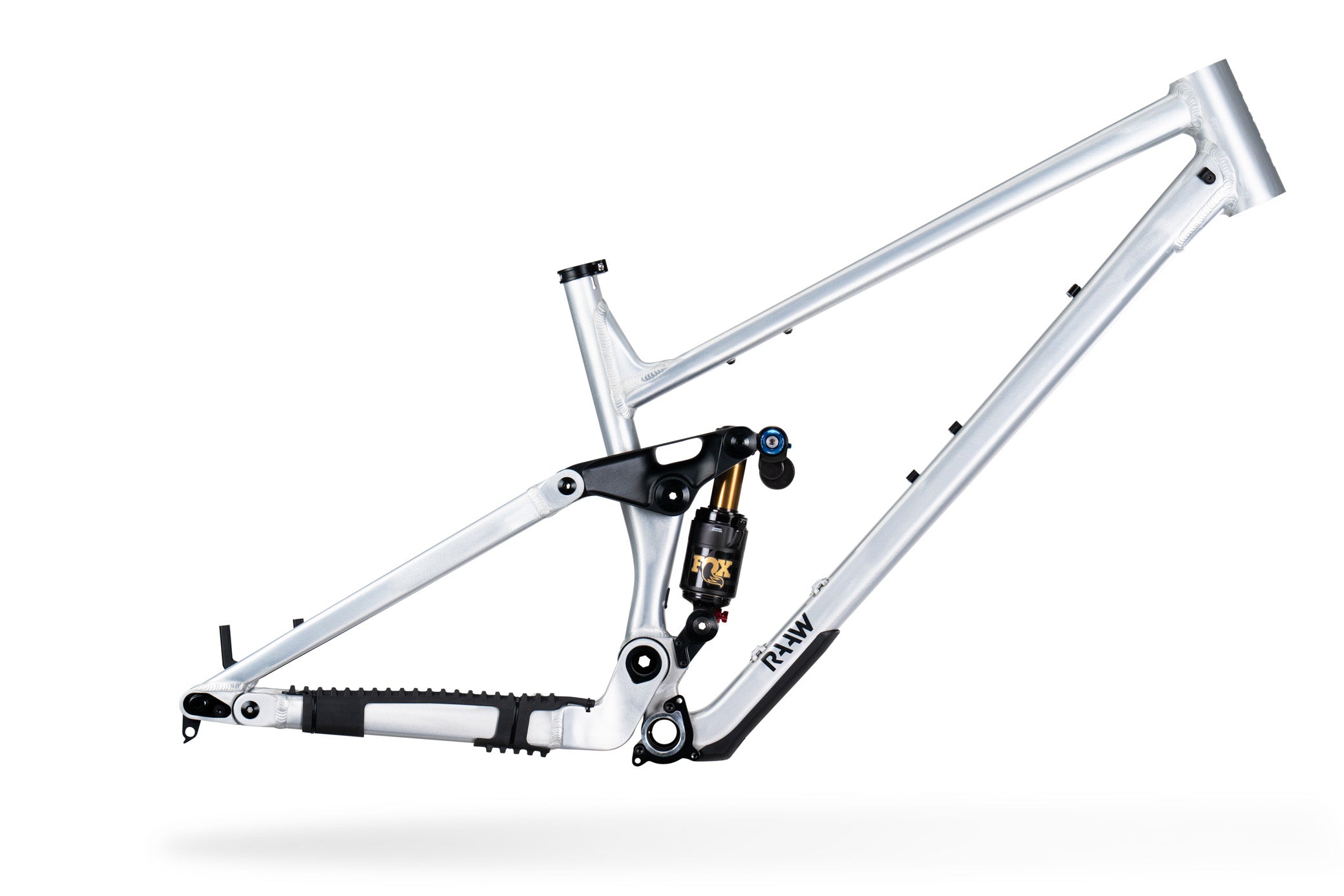

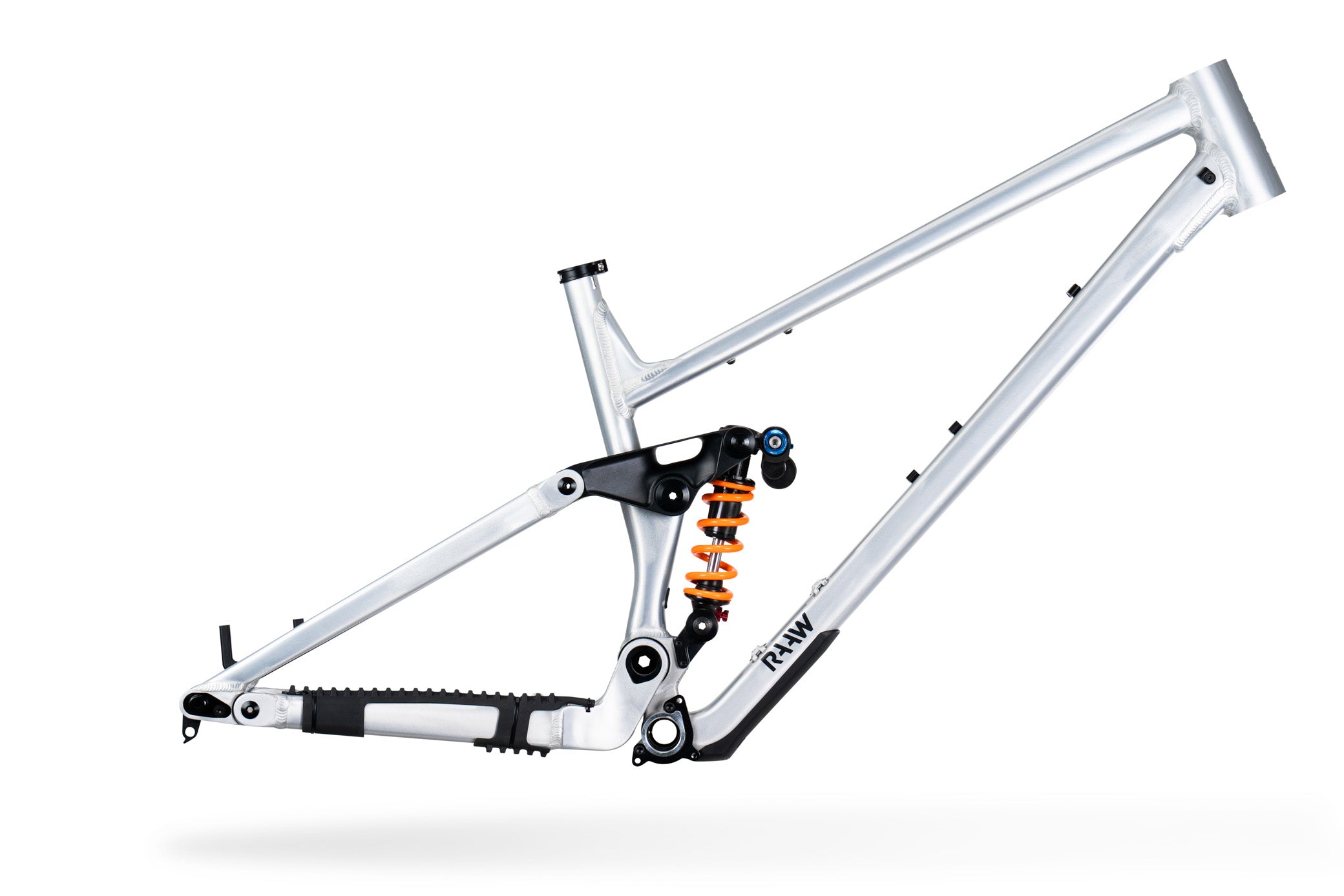

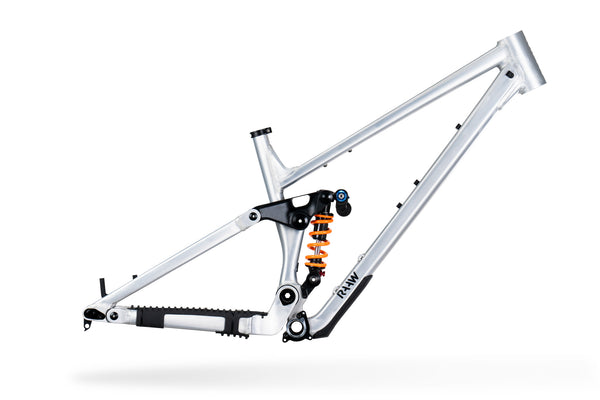

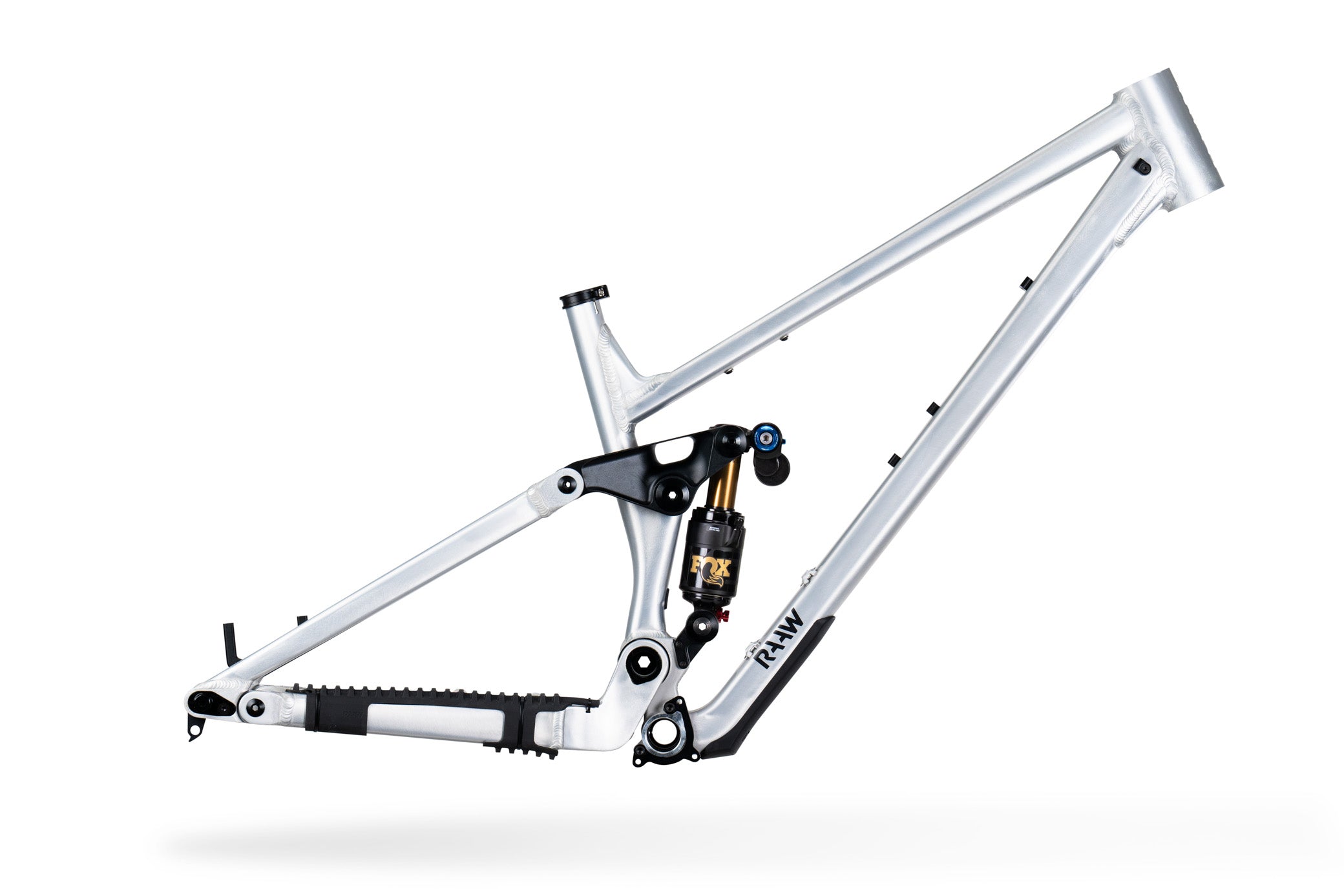

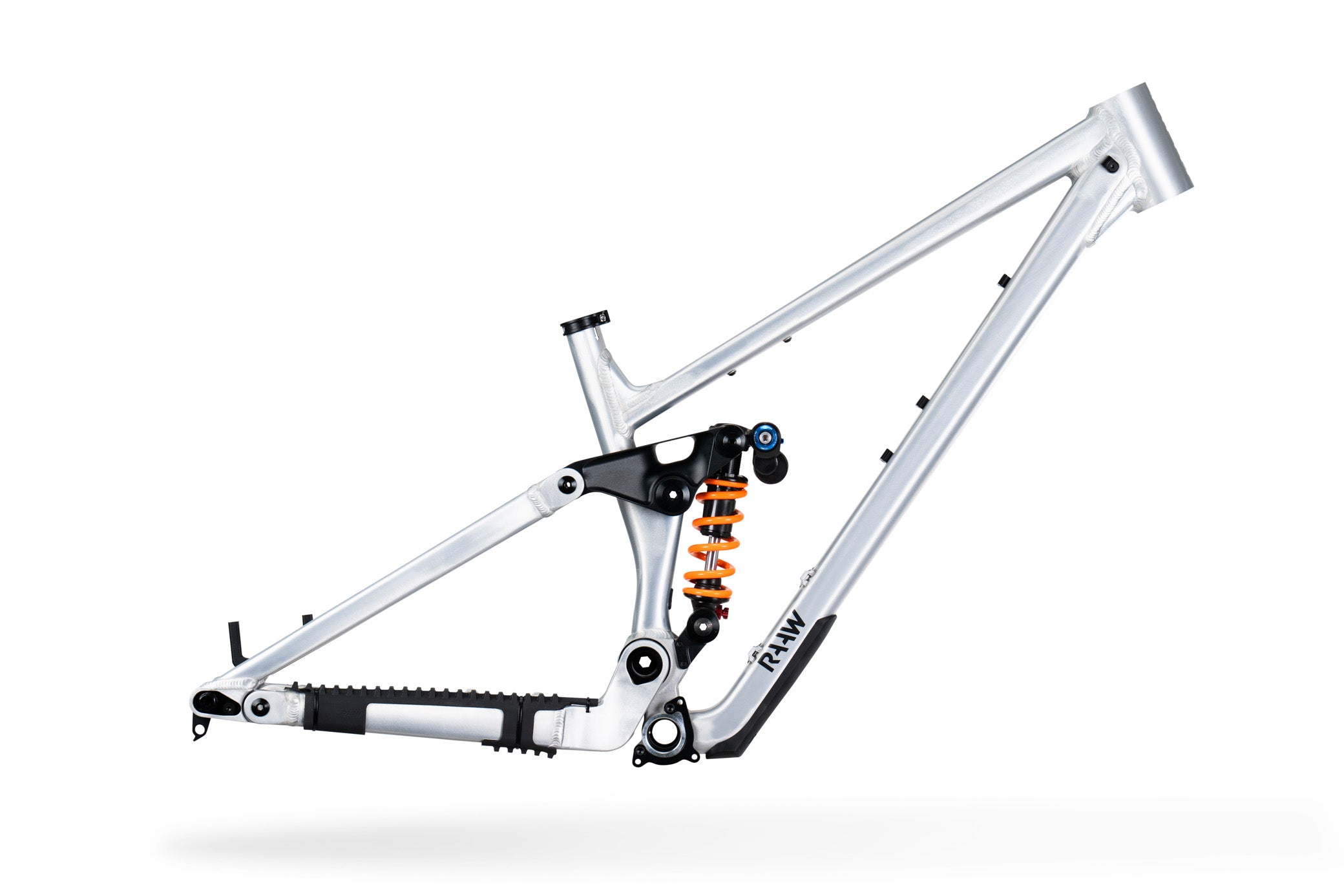

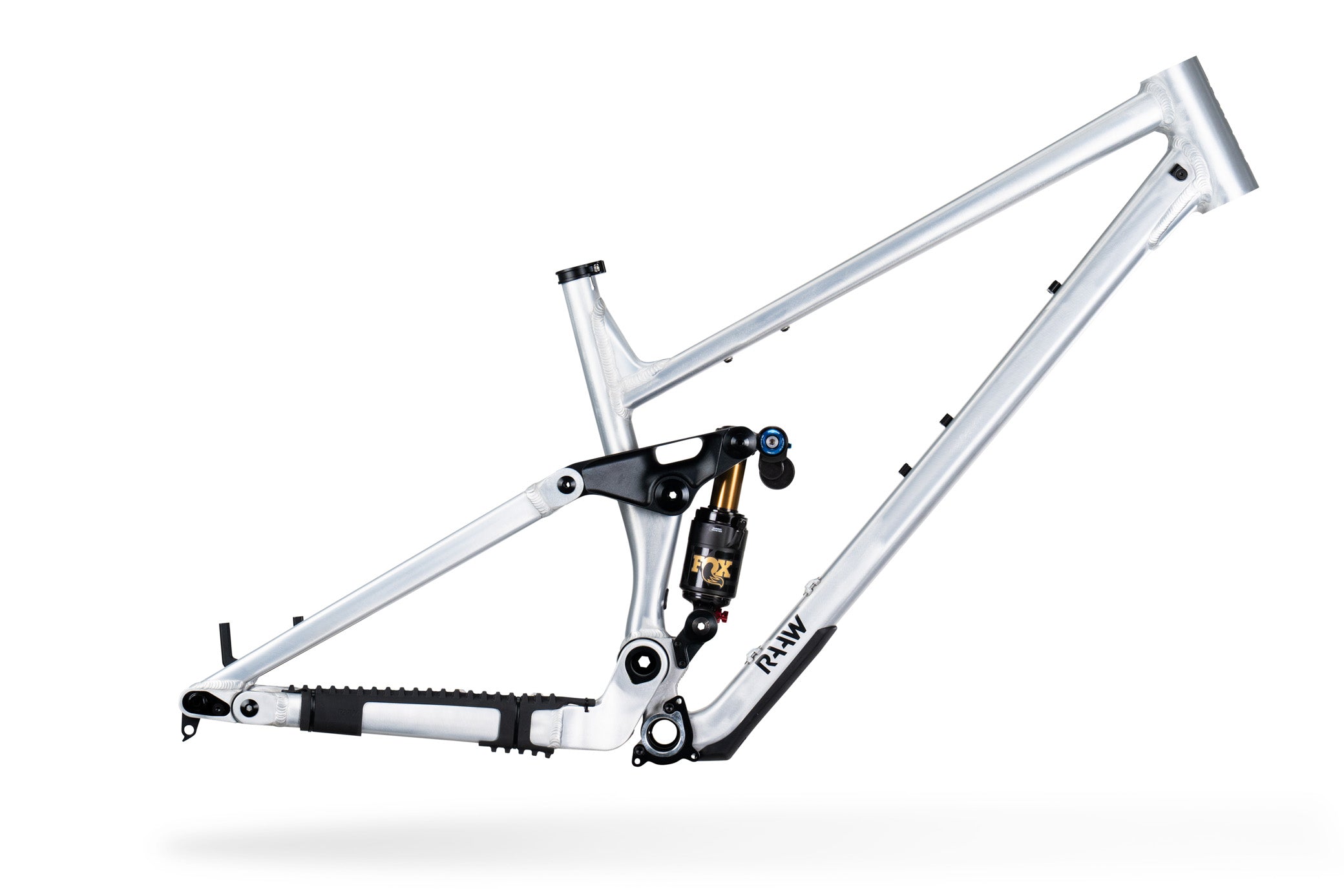

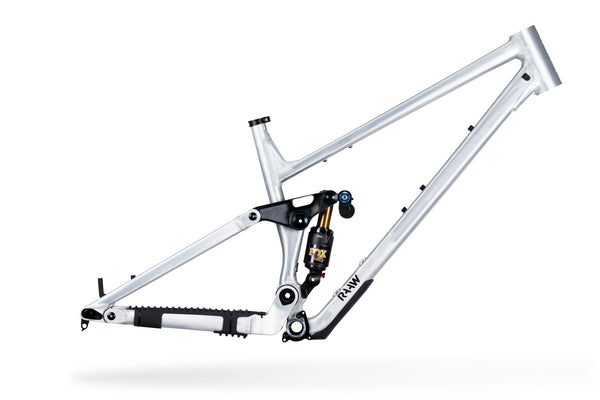

Jibb V2 Frame Kit - Raw
tax included
shipping calculated at checkout
In stock - Ships directly

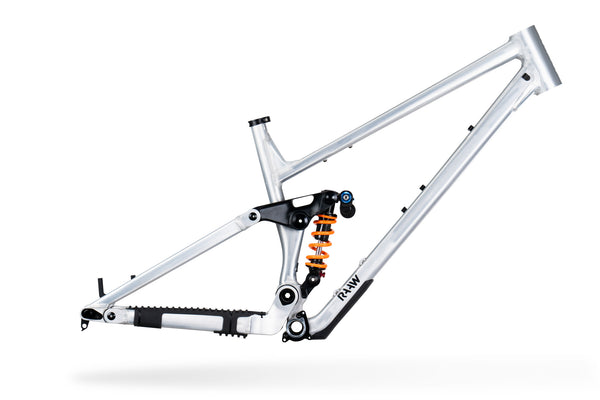

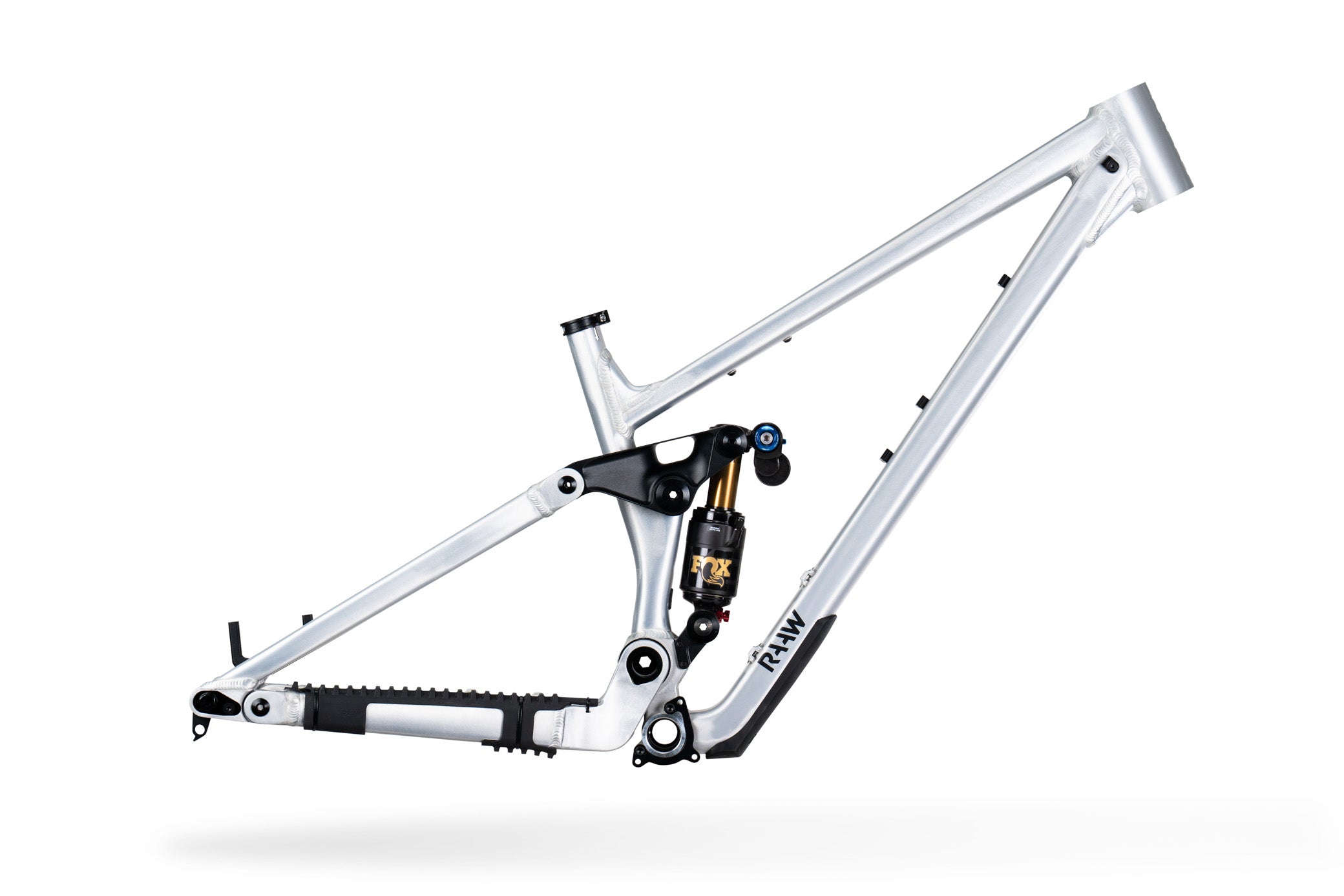

Jibb V2 Frame Kit - Raw
The Jibb is made to ride up, down and chase its tail all over the mountains. It’s a capable bike that gives you feedback through the steering and suspension like no big travel bike can. And that’s what makes the Jibb so much fun and just the best all-rounder you can have in your garage.
If you want to learn more about the shock choice or the two different rocker link options, you can find all details about the Jibb V2 on this page.
The frames are regularly available with the rocker link options shown in the selection on the side. If you prefer a different rocker link, please send us an e-mail to hello@raawmtb.com and we will check the availability of the preferred configuration.
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 420 | 445 | 470 | 495 | 520 |
| Stack | 621 | 635 | 649 | 662 | 662 |
| Chainstay Length | 445 | 445 | 450 | 455 | 455 |
| BB Drop | 35 | 35 | 35 | 35 | 35 |
| Seat Tube Length | 395 | 420 | 445 | 470 | 470 |
| Virtual Seat Tube Angle | 76 | 76 | 77 | 77 | 77 |
| Head Tube Angle | 64,5 | 64,5 | 64,5 | 64,5 | 64,5 |
| Wheelbase | 1192 | 1224 | 1260 | 1296 | 1321 |
| Body Height in cm | 158 - 170 | 167 - 180 | 177 - 190 | 186 - 199 | 195 - 208 |
(all dimensions in mm except for angles)
Frame Specifications
Shock Options & Compatibility
Contents
Customer Reviews
Habe mein Jibb fast fertig, bin zwar noch kein Meter gefahren aber alleine das drauf setzen macht ein gutes Gefühl ‼️ Freue mich auf die erste Runde✌🏼‼️
Super spaßig zu fahren! Vom Madonna zum Jibb keine Umgewöhnung, fühlt sich direkt wie zu Hause an. Perfekt für die Hometrails.
Mein bestes Bike…
This Jibb V2 LT replaces my Madonna V1 from 2019 and I was able to take over some stuff I like my loved XTR brakes. With 185cm I choosed size L with a 50mm stem and a cut to 770mm handlebar again. If I unmount tool, Garmin and bottle, it weighs 15.7kg (many thanks to the light winter tires)
My current winter suspension setup corresponds to RAAW recommendations for ready-to-ride 90kg. So unpack and drive off which I highly appreciate.
The Madonna worked in this mode for 5 years without forcing me to interrupt my passion with involuntary services.
I love the look of my new Jibb with all details but for me the real value is the trust for 5 years just having fun.
Check your orders in 2029
Matthias
In my opinion building a bike from the frame up is the best way to do it. I was fortunate to build up my dream bike. The second I saw the RAAW Jib V2 I knew that had to be the frame. The bike rides as it was intended. I went with the LT version and couldn’t be more happy. I live in Ontario Canada, so we have lots of short punchy climbs and steep downs, lots of tech. The Jibb just flys through it all. It’s my one and only bike, perfect for trips to the North Shore, and also for my local trails. Couldn’t be happier with RAAW’s support, they answered all my questions in the lead up to the purchase and even after the purchase as well. The frames construction is also top notch. Would 100 percent recommend anyone on the fence to just pull the trigger you won’t be disappointed.
