Madonna V3.2 Frame Kit

Sale price €2.790,00

tax included

shipping calculated at checkout

Finish
Frame Size
Rocker

Low stock, order soon!

Built to Last - Backed by RAAW

  • 5-Year Warranty
  • Double Sealed Bearings
  • Factory Grade Support
  • Advanced Setup Guides

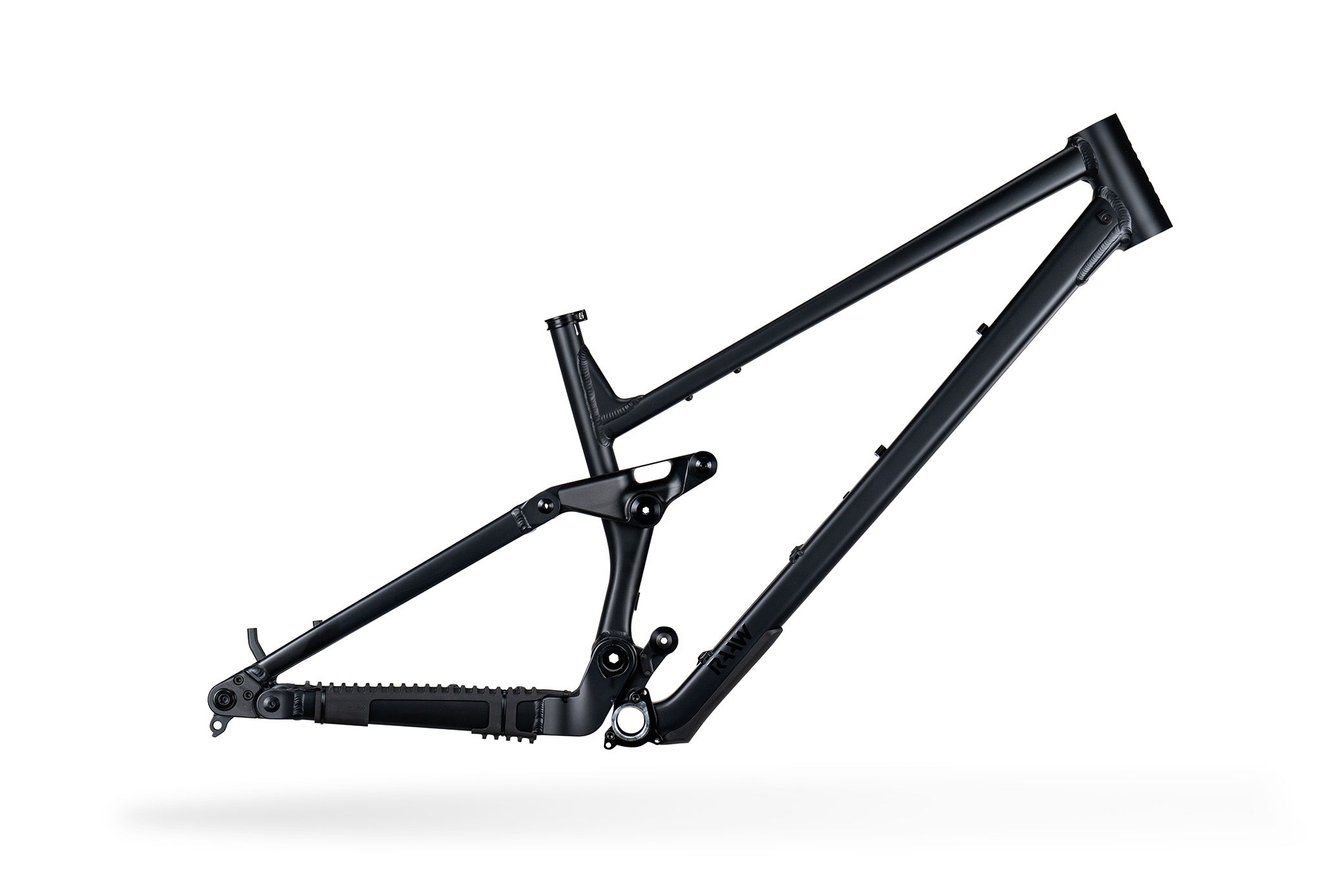

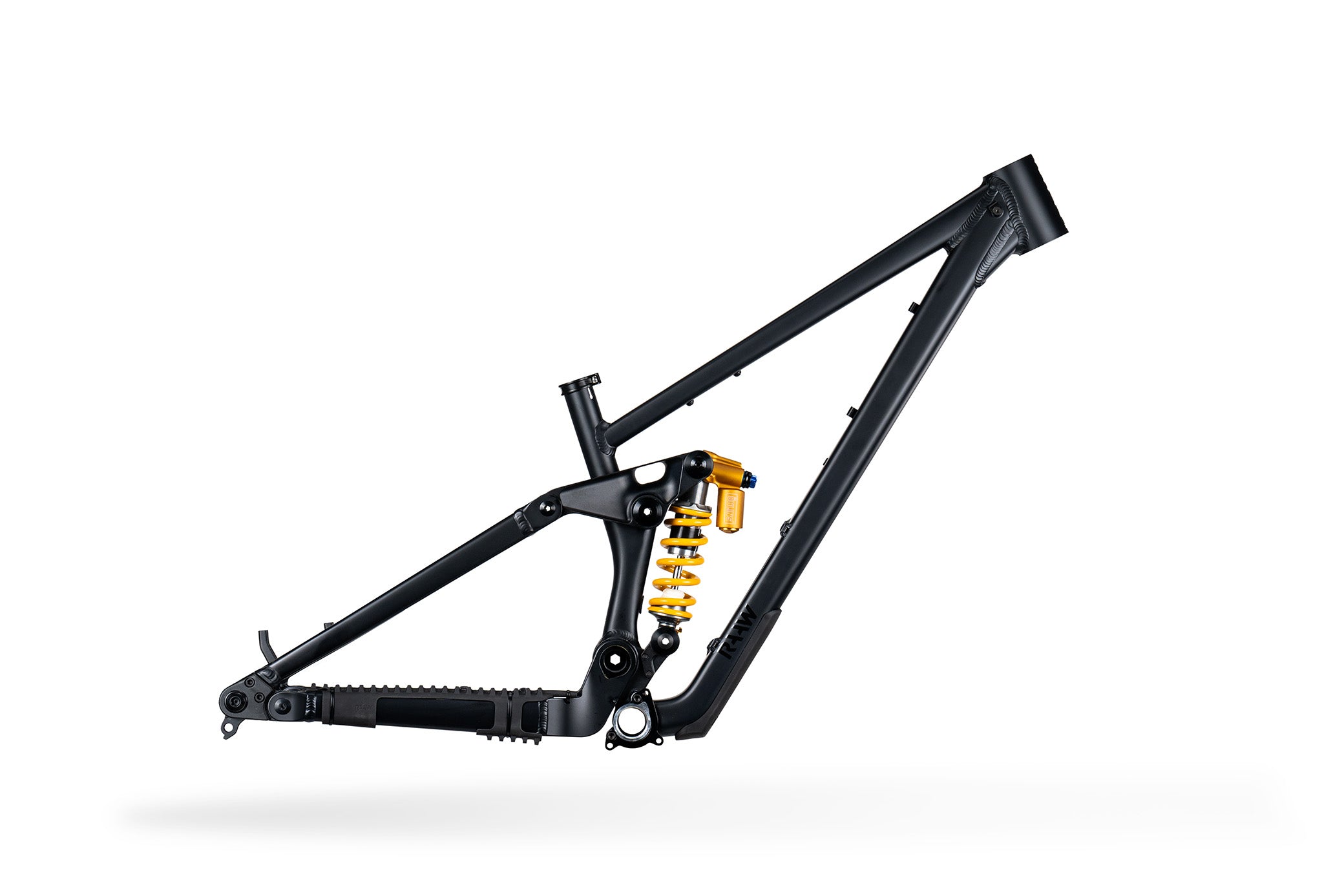

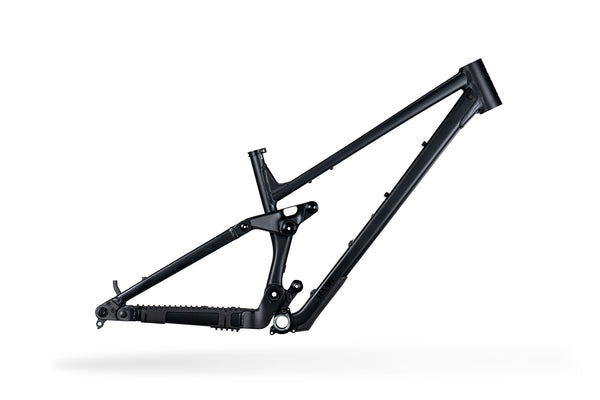

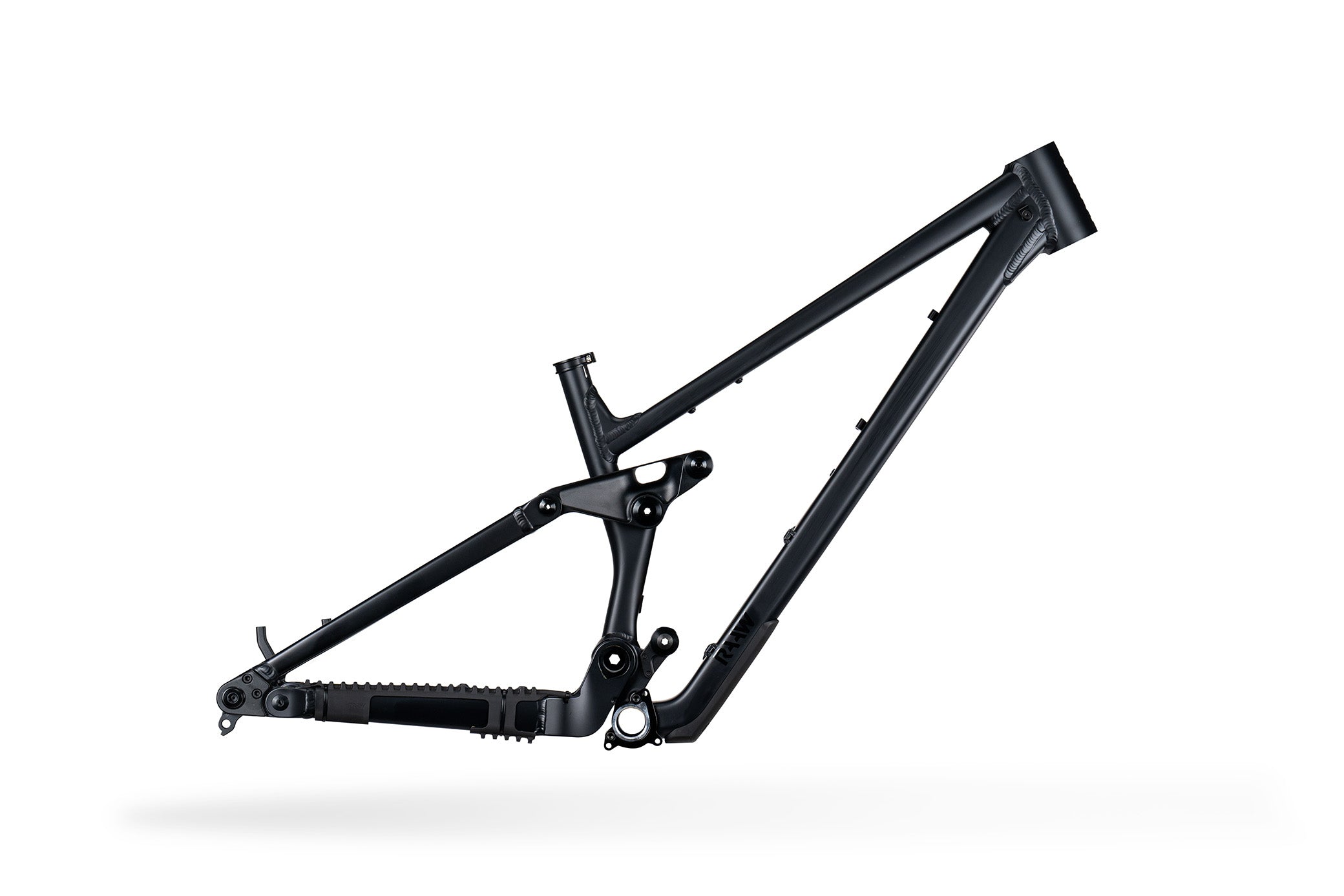

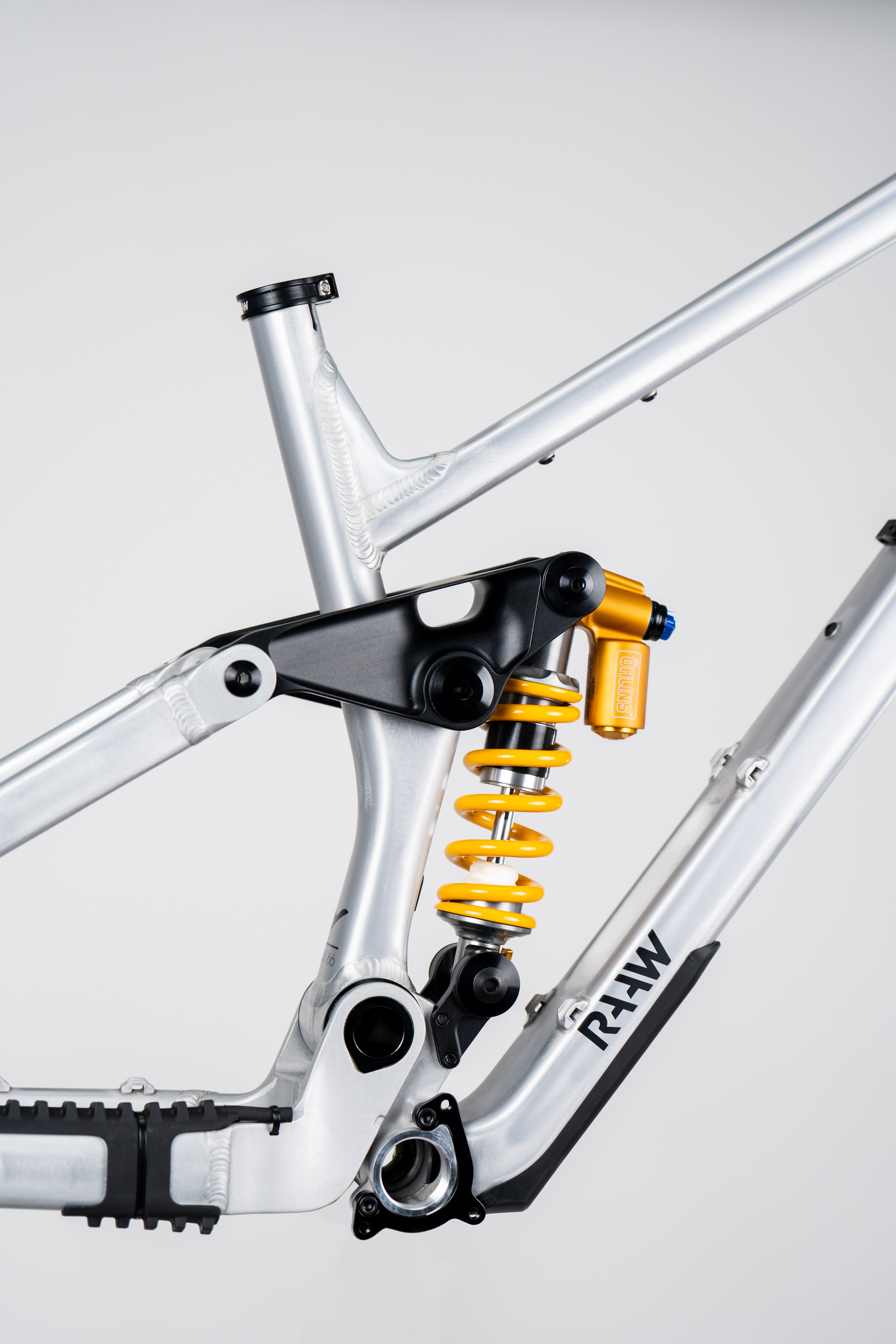

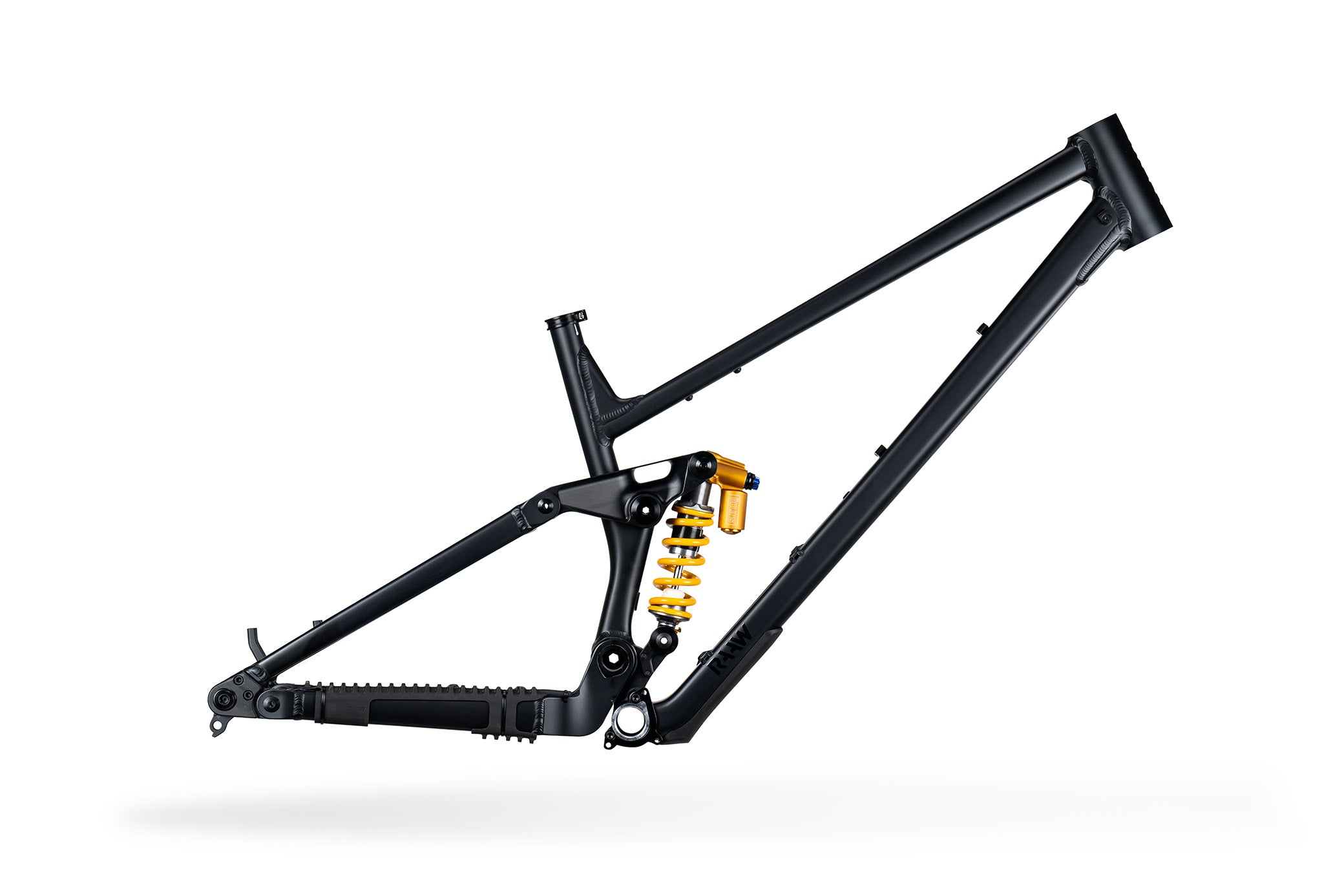

Madonna V3.2 Frame Kit

The Madonna is the most capable, adjustable and durable bike we’ve ever built. With either 29-inch wheels or a mullet setup, 160 mm of rear travel and a 170 mm fork, the Madonna is ready for any trail, bike park or race track.
To learn more about the Madonna, you can find all details here.

Geometry

S M L XL XXL
Reach 430455480505530
Stack 637650664677677
Chainstay Length 445445450455455
BB Drop 3535353535
BB Height 335–340335–340335–340335–340335–340
Seat Tube Length 395420445470470
Virtual Seat Tube Angle 7777777878
Actual Seat Tube Angle 7272747474
Horizontal Top Tube 576605618647672
Head Tube Length 100115130145145
Head Tube Angle 6464646464
Fork Length 587,7587,7587,7587,7587,7
Wheelbase 12161248128413201346
Body Height in cm 158–170167–180177–190186–199195–208
Recommended Stem Length 35–5035–5035–5035–5035–50
Recommended Crank Length 165 / 170165 / 170165 / 170165 / 170165 / 170

(all dimensions are in mm except for angles, which are in degrees)

Specifications

  • Travel rear/front160 / 170 mm
  • Wheel size29” (740–755 mm) (27,5” rear option)
  • Max tyre width2.6” (66 mm)
  • Rear hub148*12
  • ShiftingOne-by only, boost, 36t max (UDH / T-Type compatible)
  • BB73 mm BSA / ISCG05
  • Brake200 +3 mm post mount
  • Seat tube diameter31.6 mm inside, 35 mm outside
  • Internal seatpost routingYes
  • Seatpost max insertS 220 mm / M 245 mm / L 268 mm / XL & XXL 294 mm
  • Headset56 / 56 Zero stack
  • Cable routingAll external
  • Shock hardwareBall bearings and hardware included
  • Bearings main pivot2 x 6906-2RS1 (47*30*9)
  • Bearings rocker pivot2 x 6002-2RS1 (32*15*9)
  • Bearings other pivots8 x 6902-2RS1 (28*15*7)
  • Recommended fork dimensionsATC 587,7 mm – Offset 44 mm
  • Shock dimensions205*65 / 205*60 – Trunnion
  • Weight3.9 kg (incl. all hardware, w/o shock, size M)

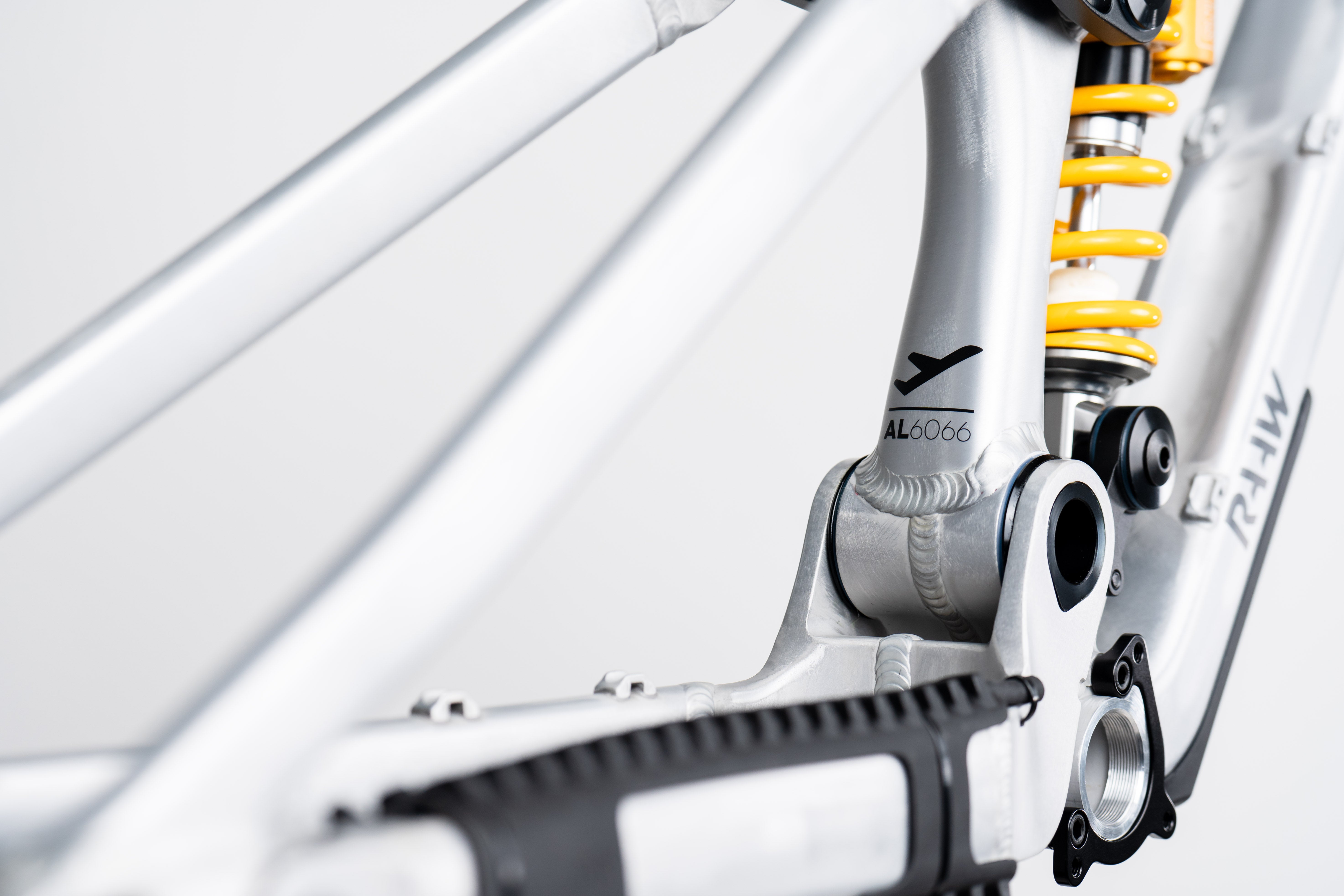

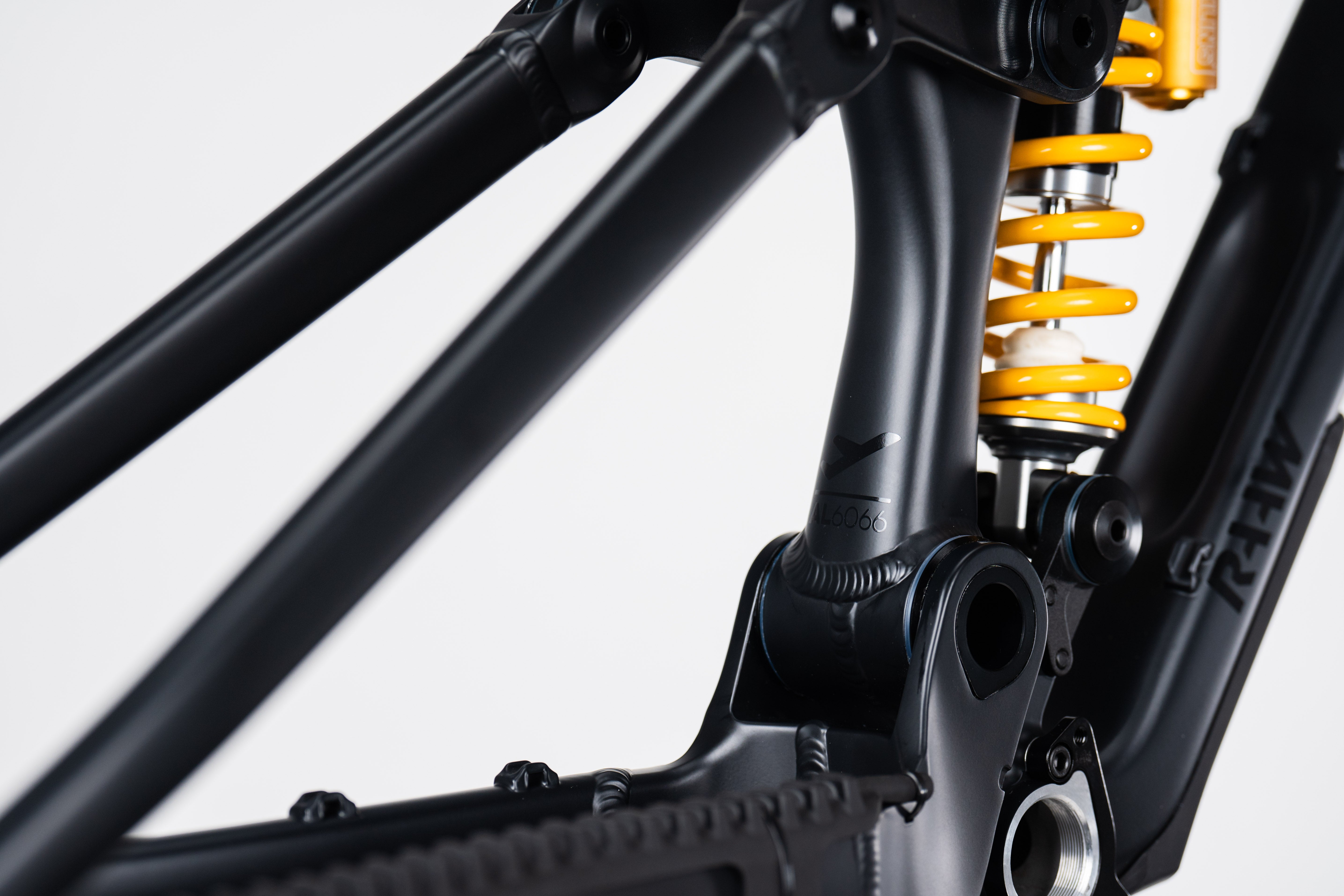

  • MaterialAL 6066 T6

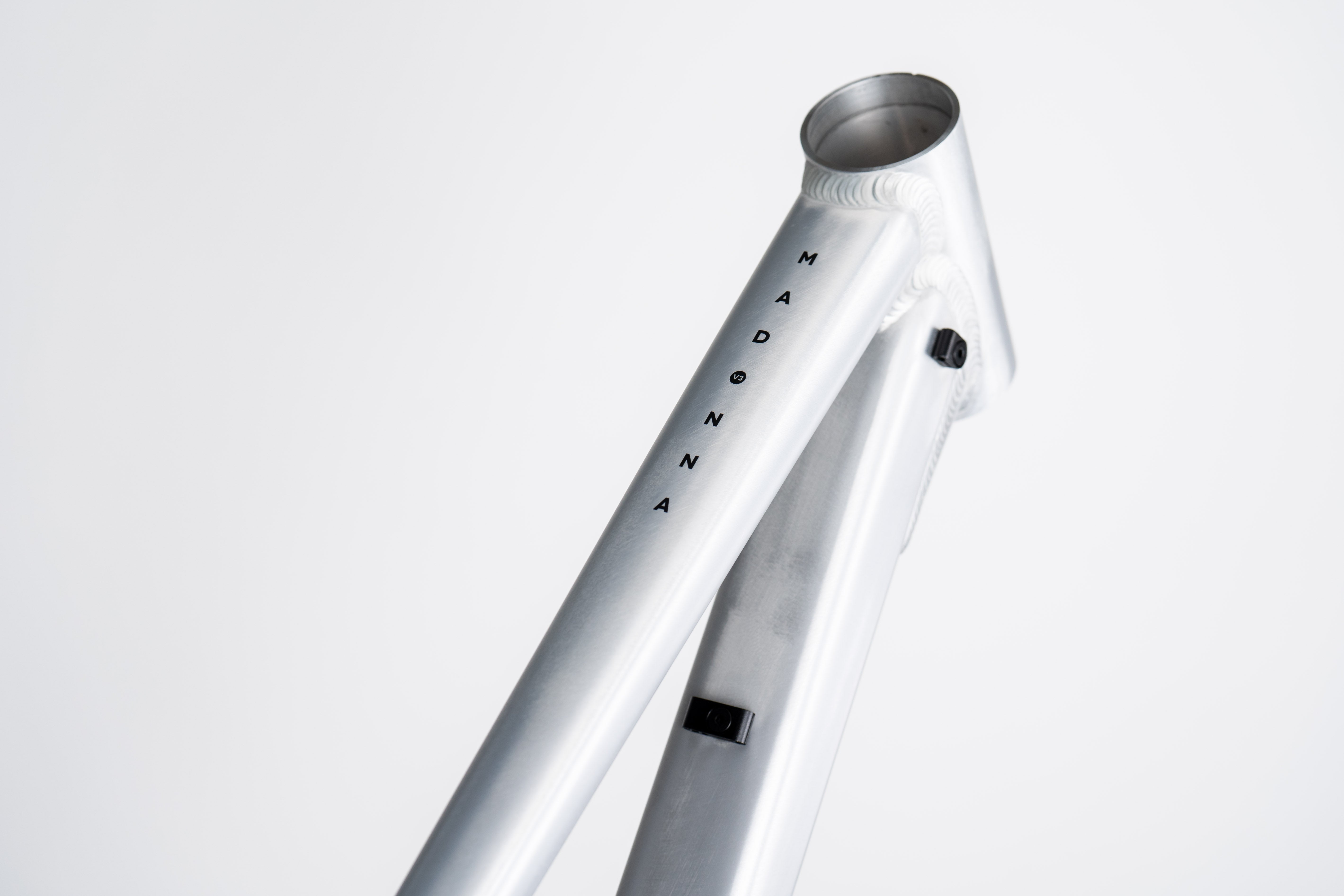

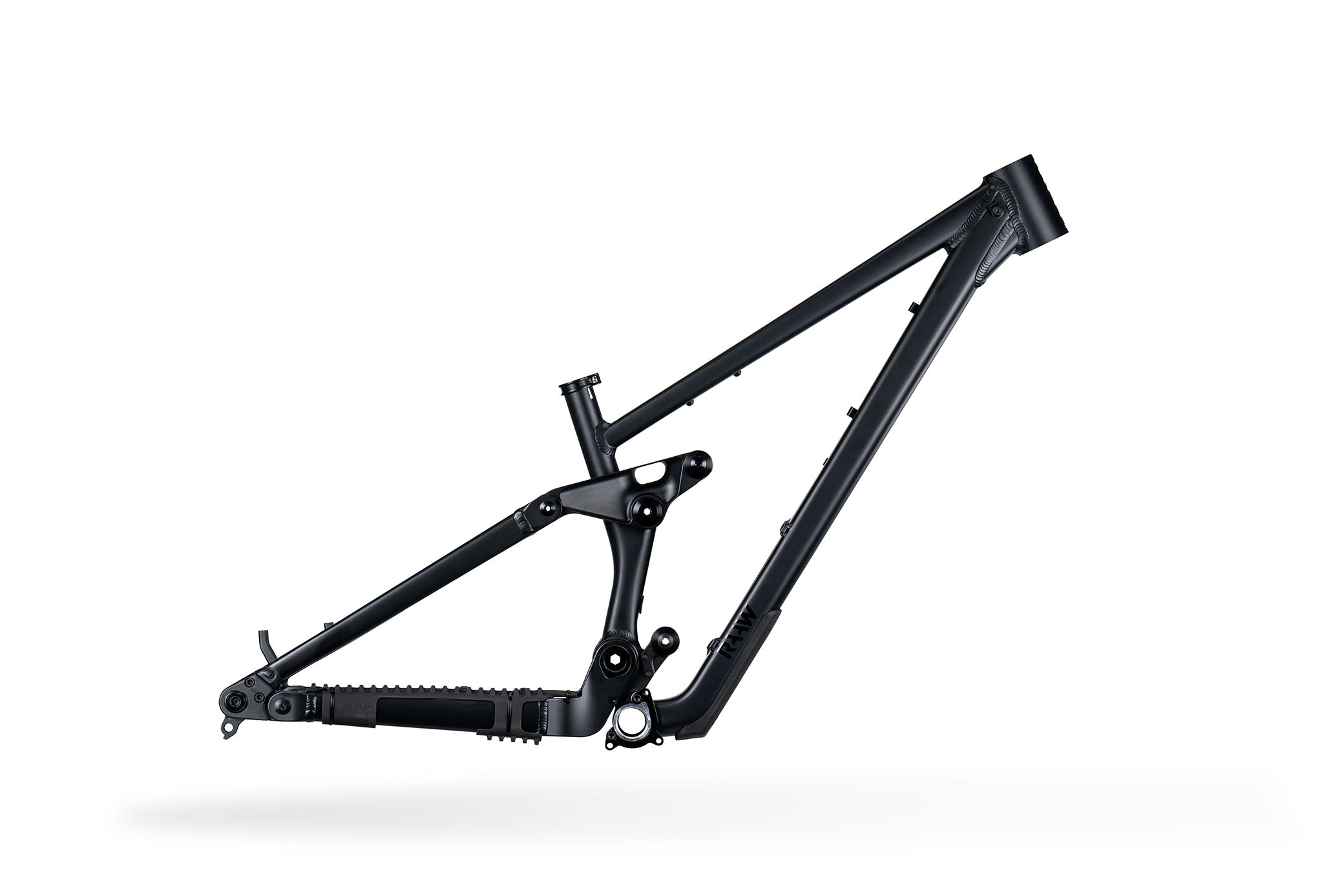

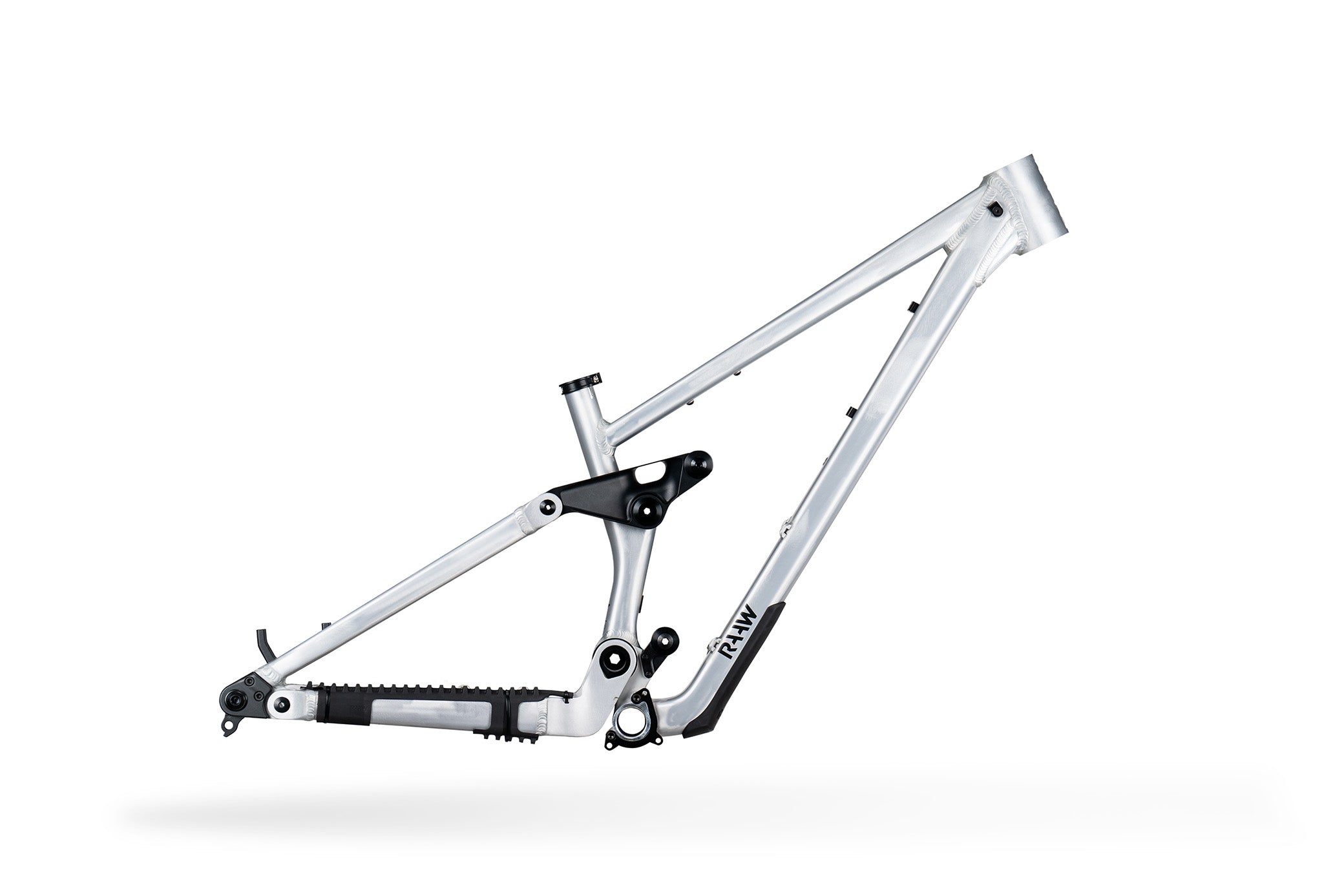

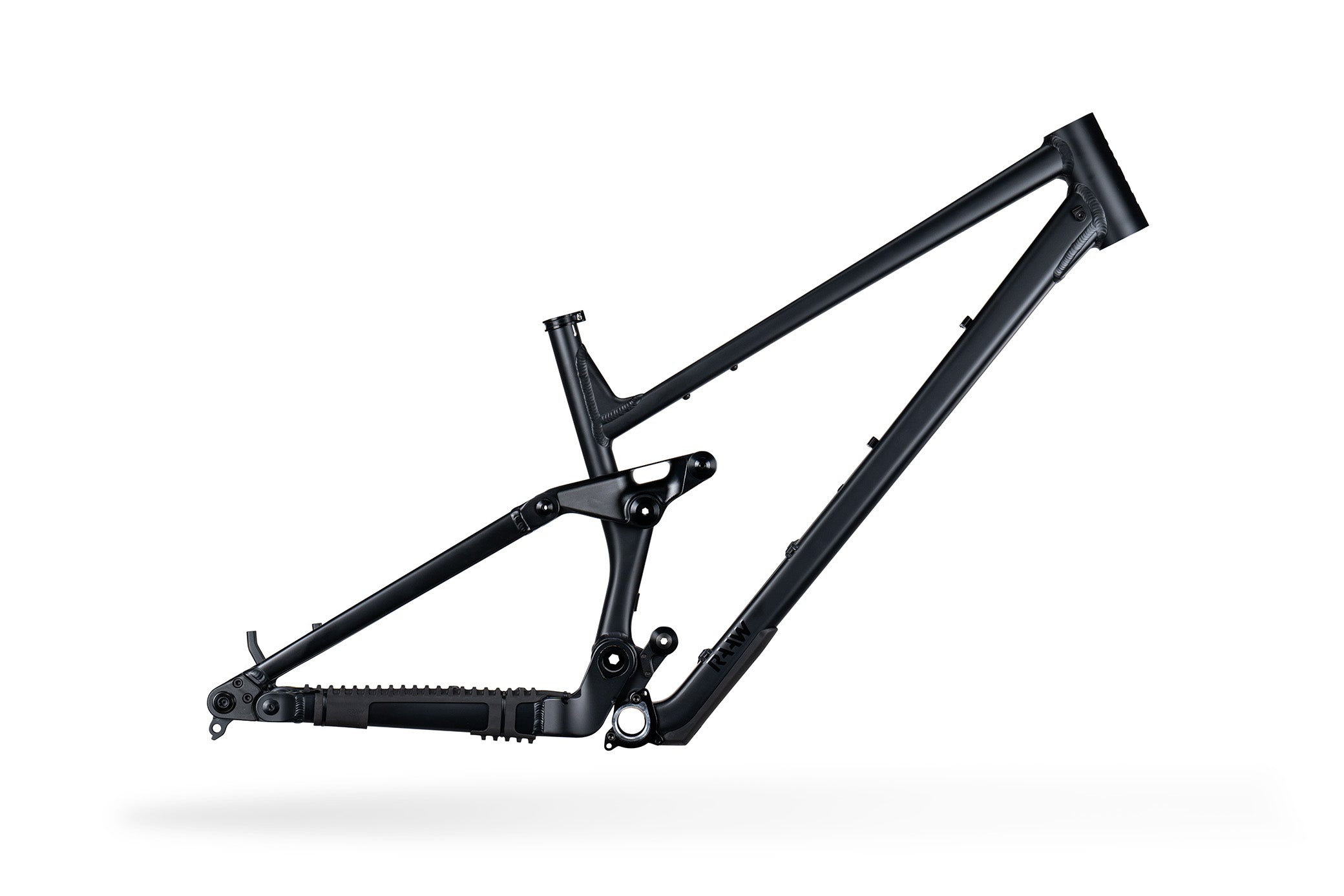

  • Finish optionsMatt black and raw with matt clear coat

Tuned Shocks & Preset Suspension

We work closely with Fox and Öhlins to offer custom-tuned shocks that are specifically optimized for our kinematics. And if you like, we can preset your suspension before shipping your RAAW. Simply enter your weight—including shoes, helmet, and riding gear—at the configurator, and we’ll take care of the rest. You’ll be ready to ride in no time.

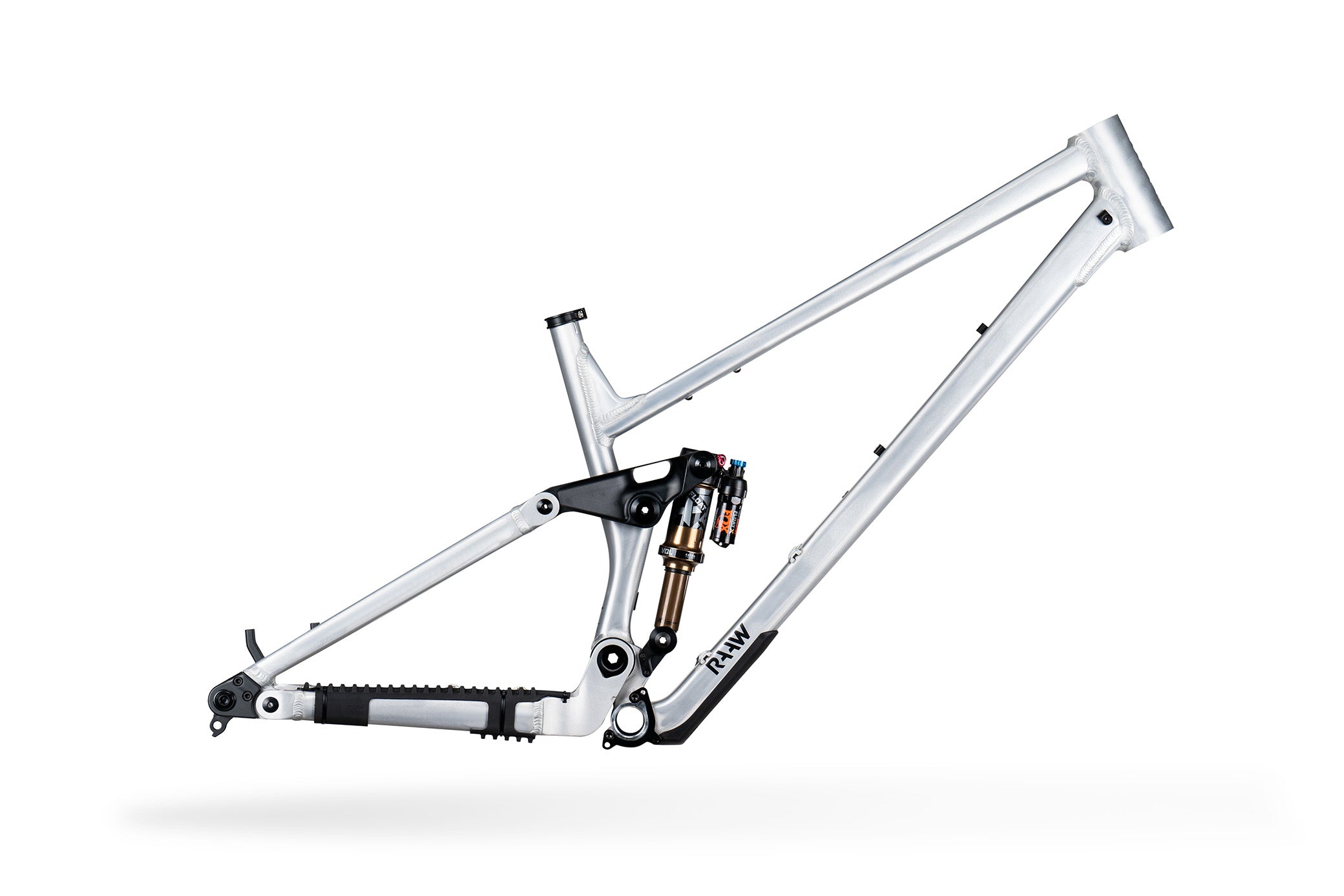

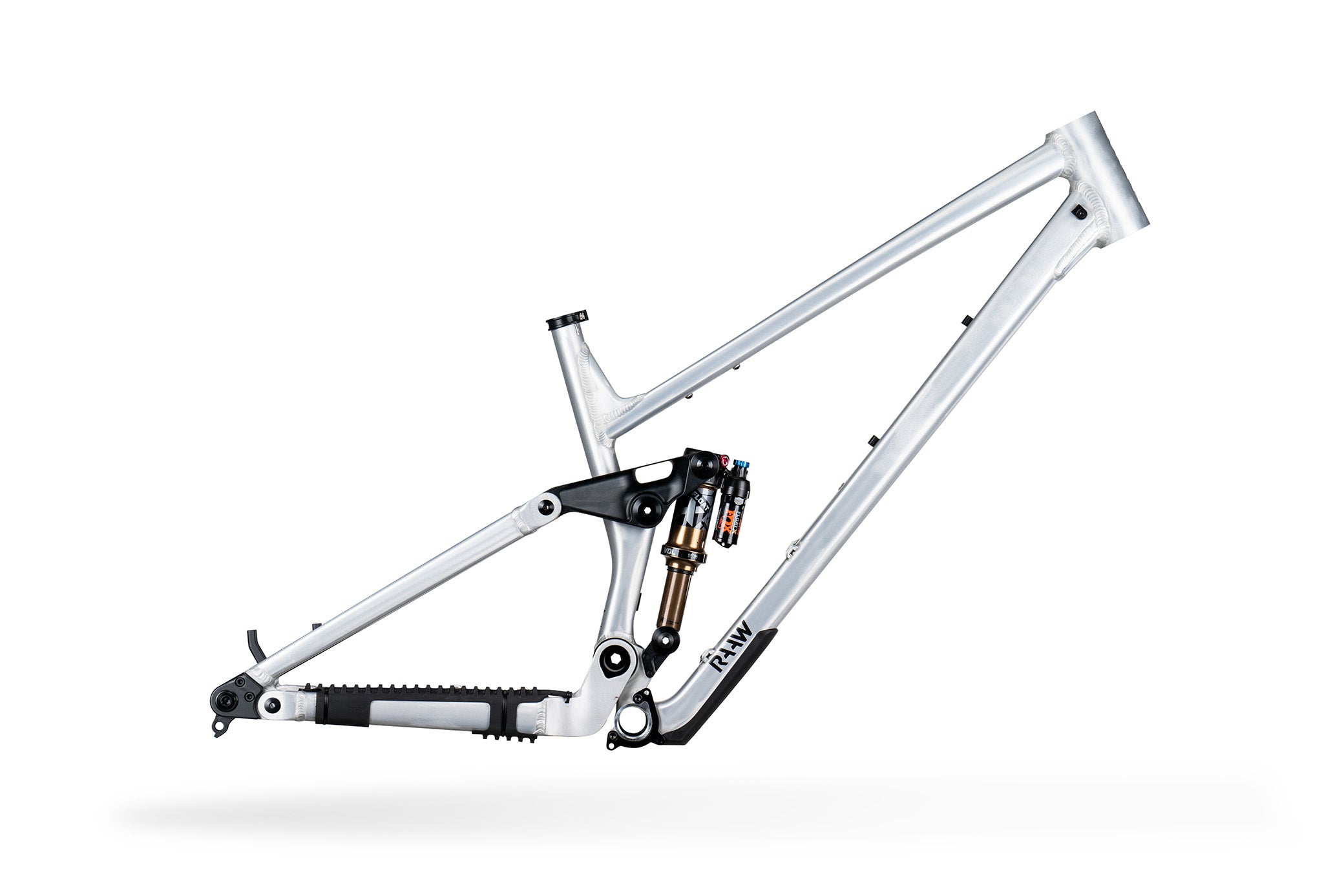

  • Fox Float X: The Float X offers an excellent balance of performance and ease of setup. Its precise feedback and optimal traction make it a perfect all-rounder.

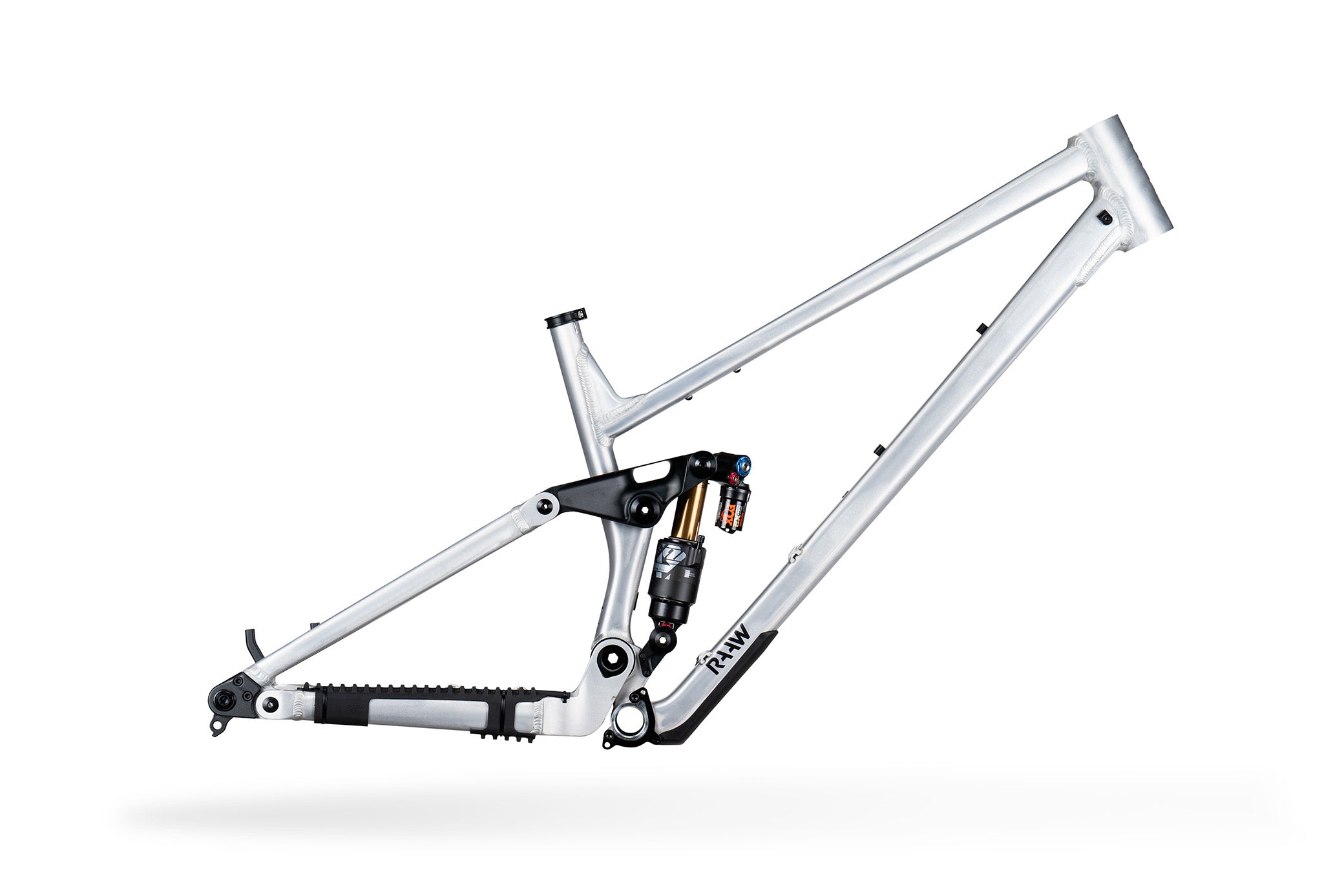

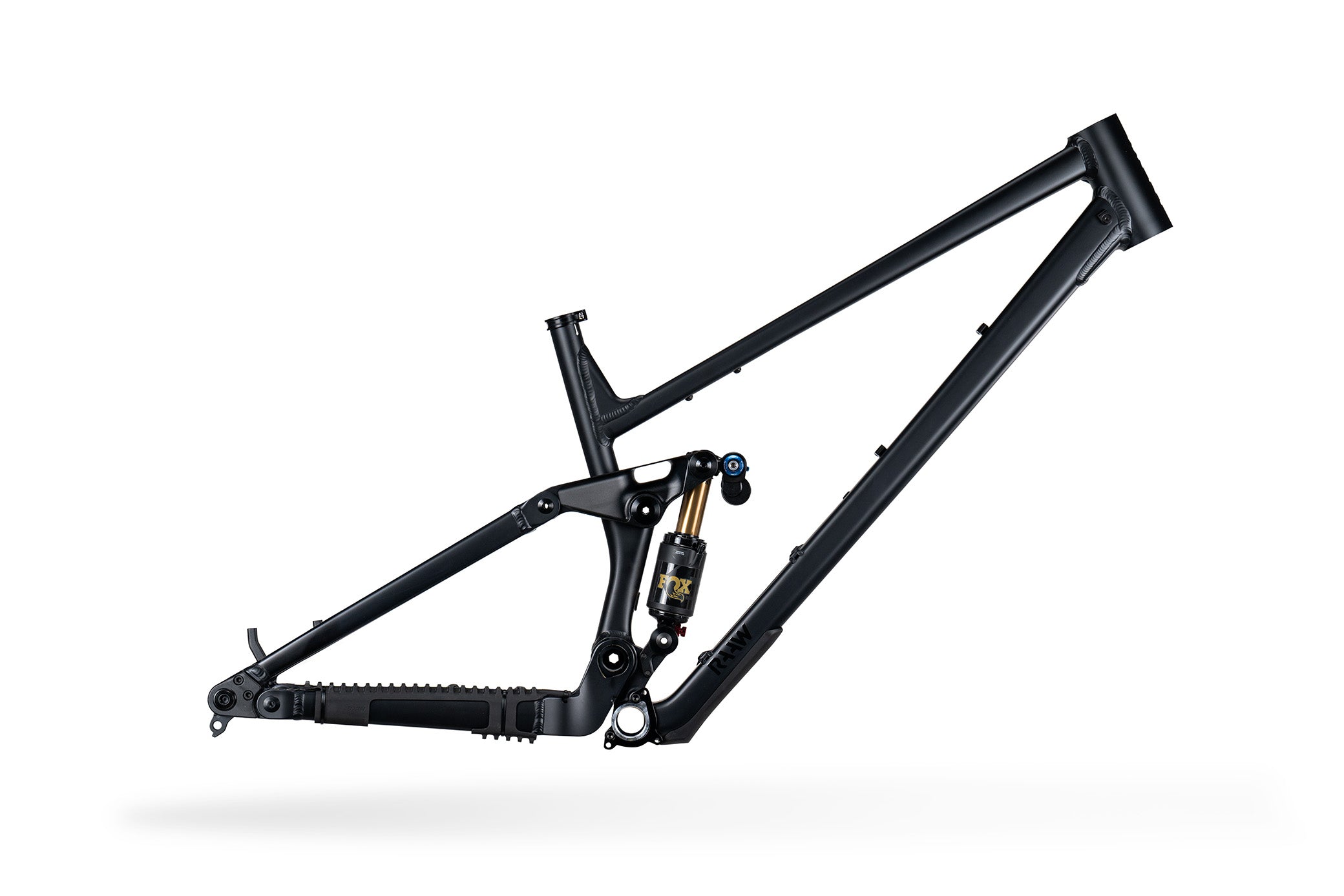

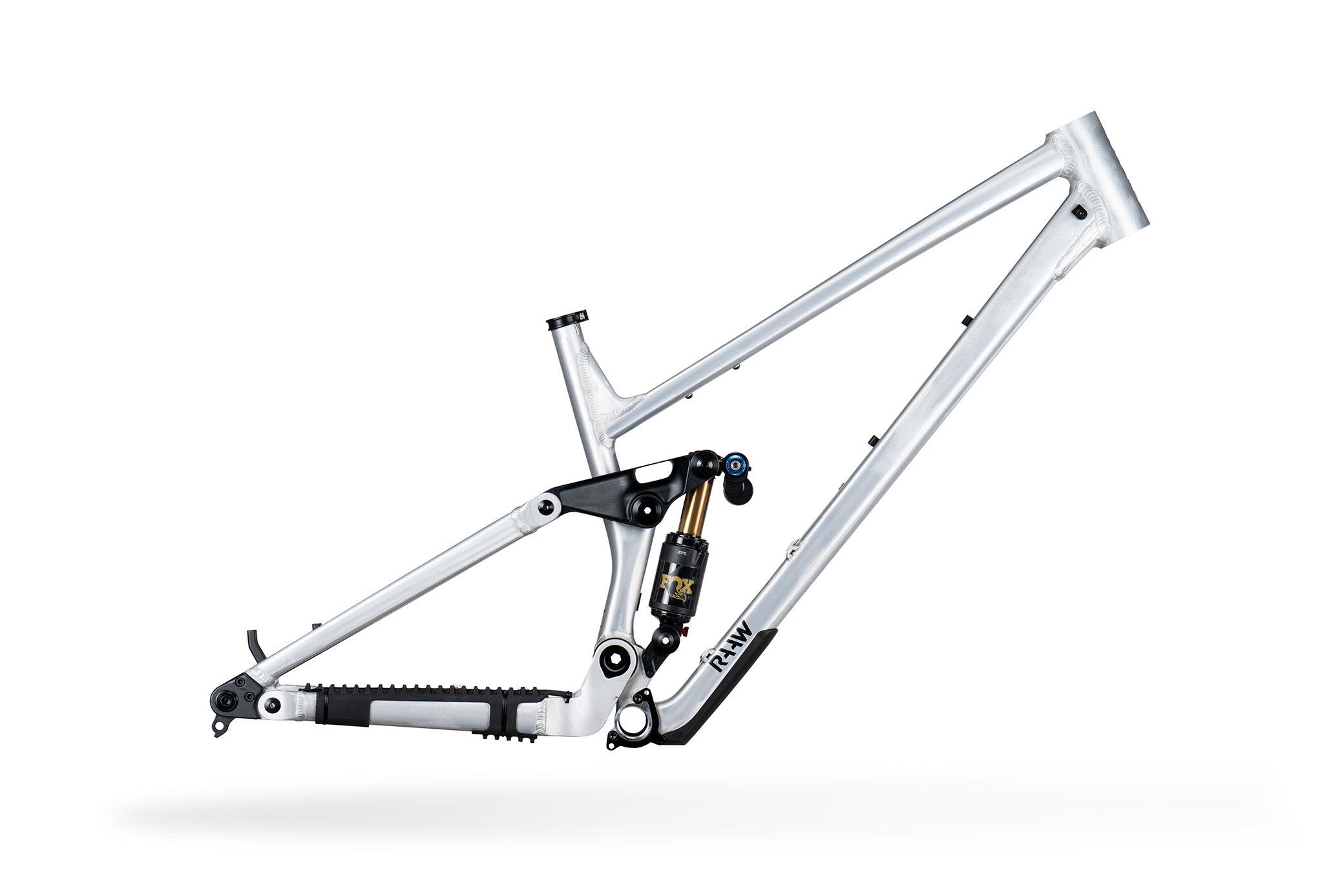

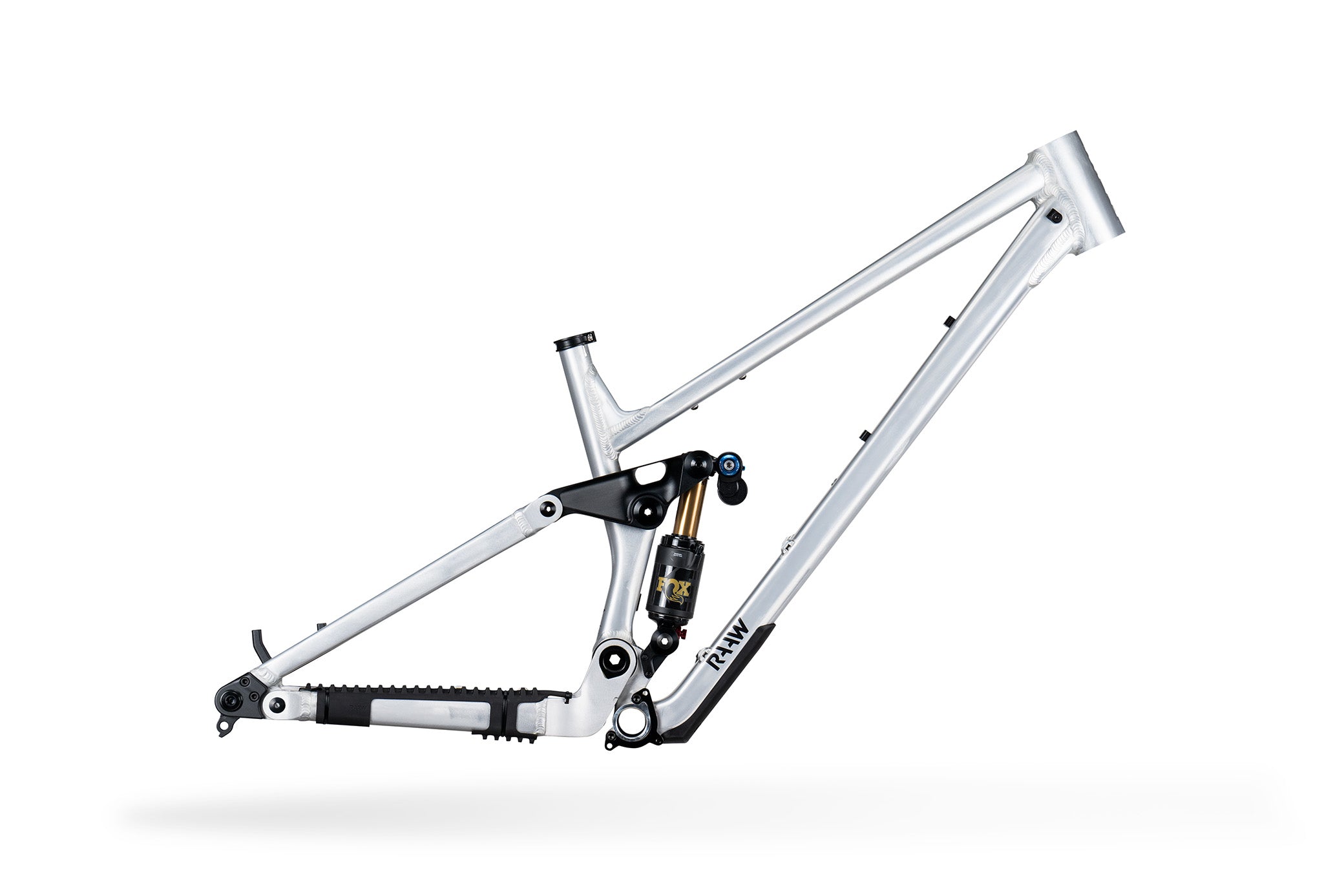

  • Fox Float X2: The Float X2 combines coil spring-level responsiveness with excellent damping and numerous adjustment options for a riding experience previously unheard of with air shocks.

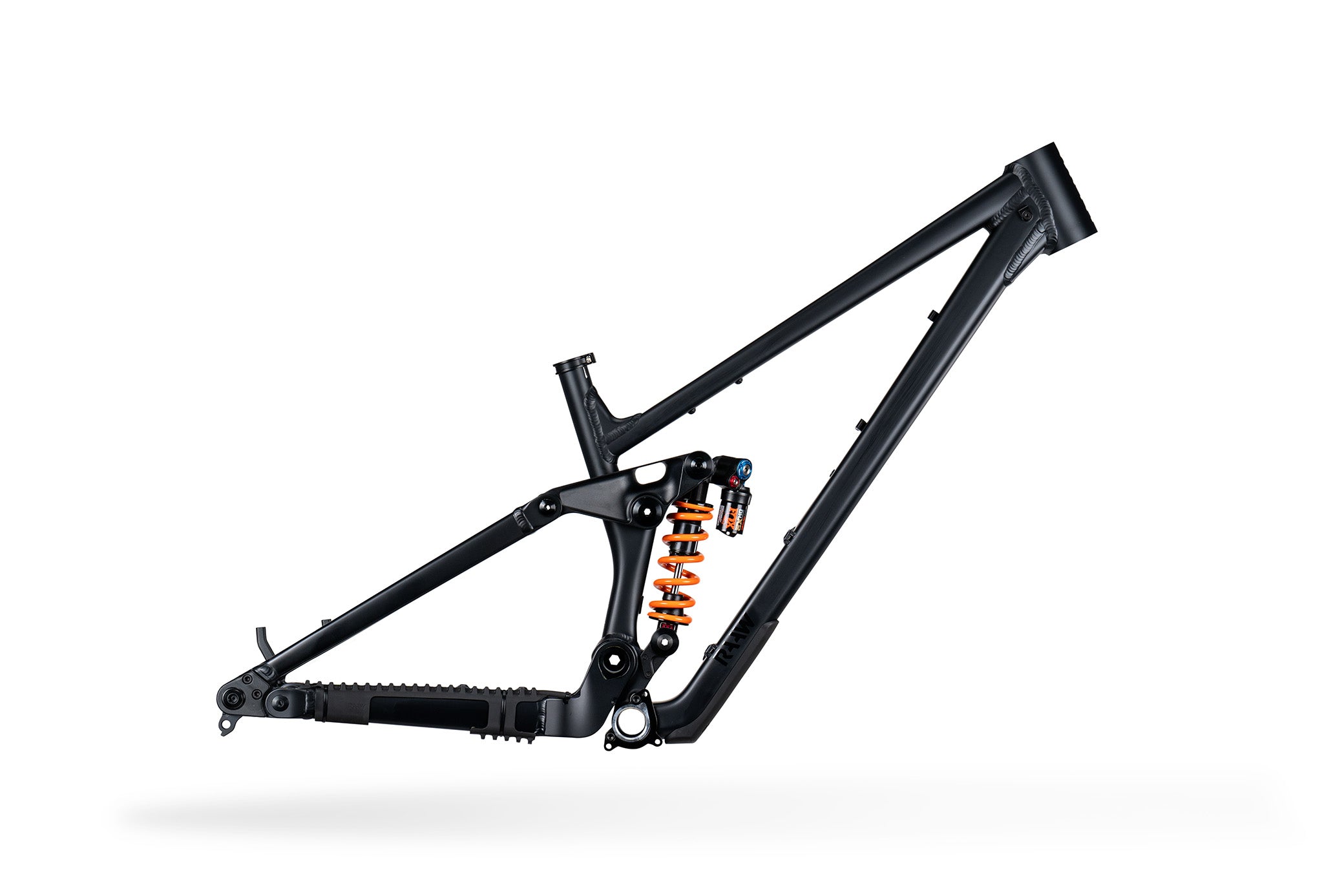

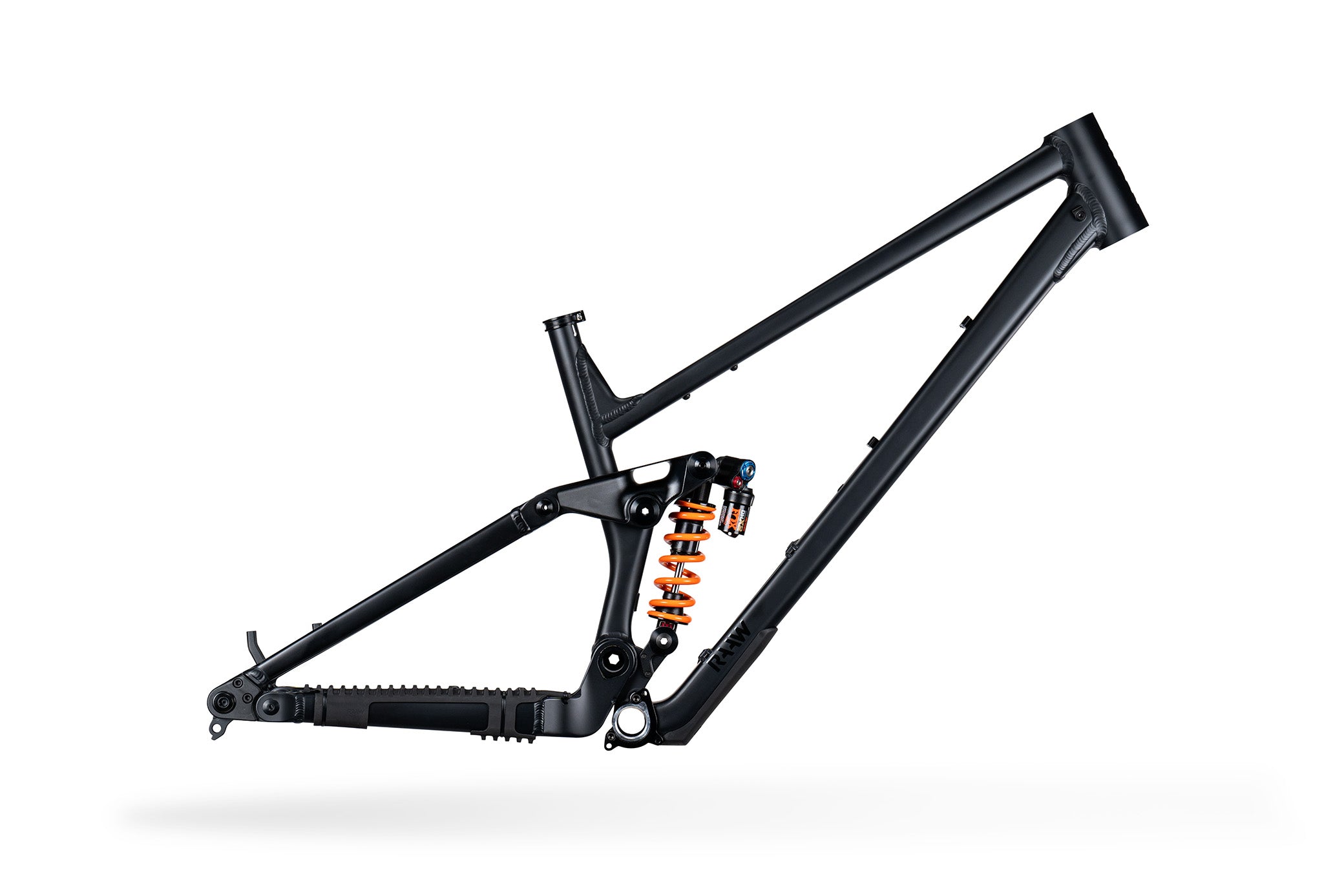

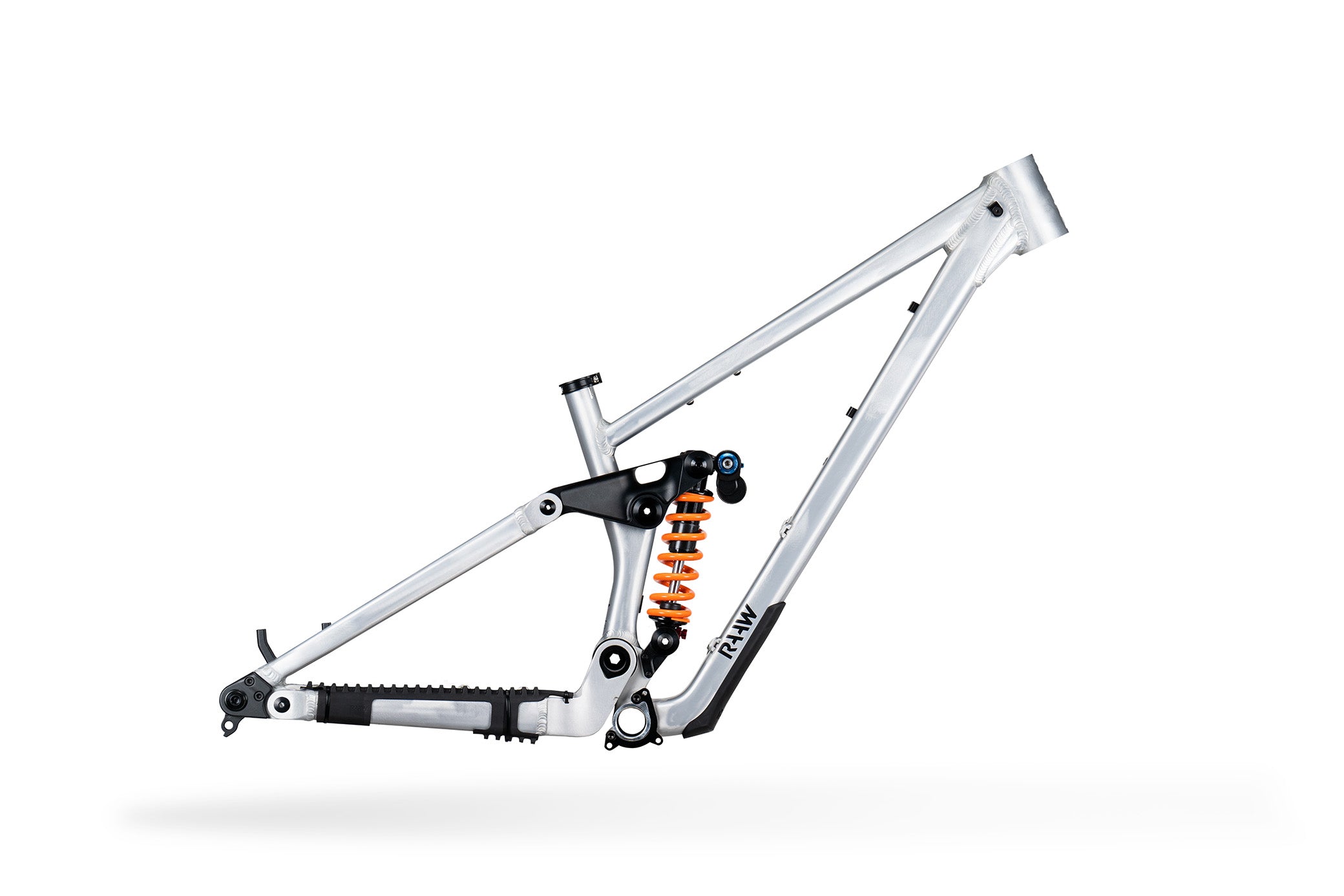

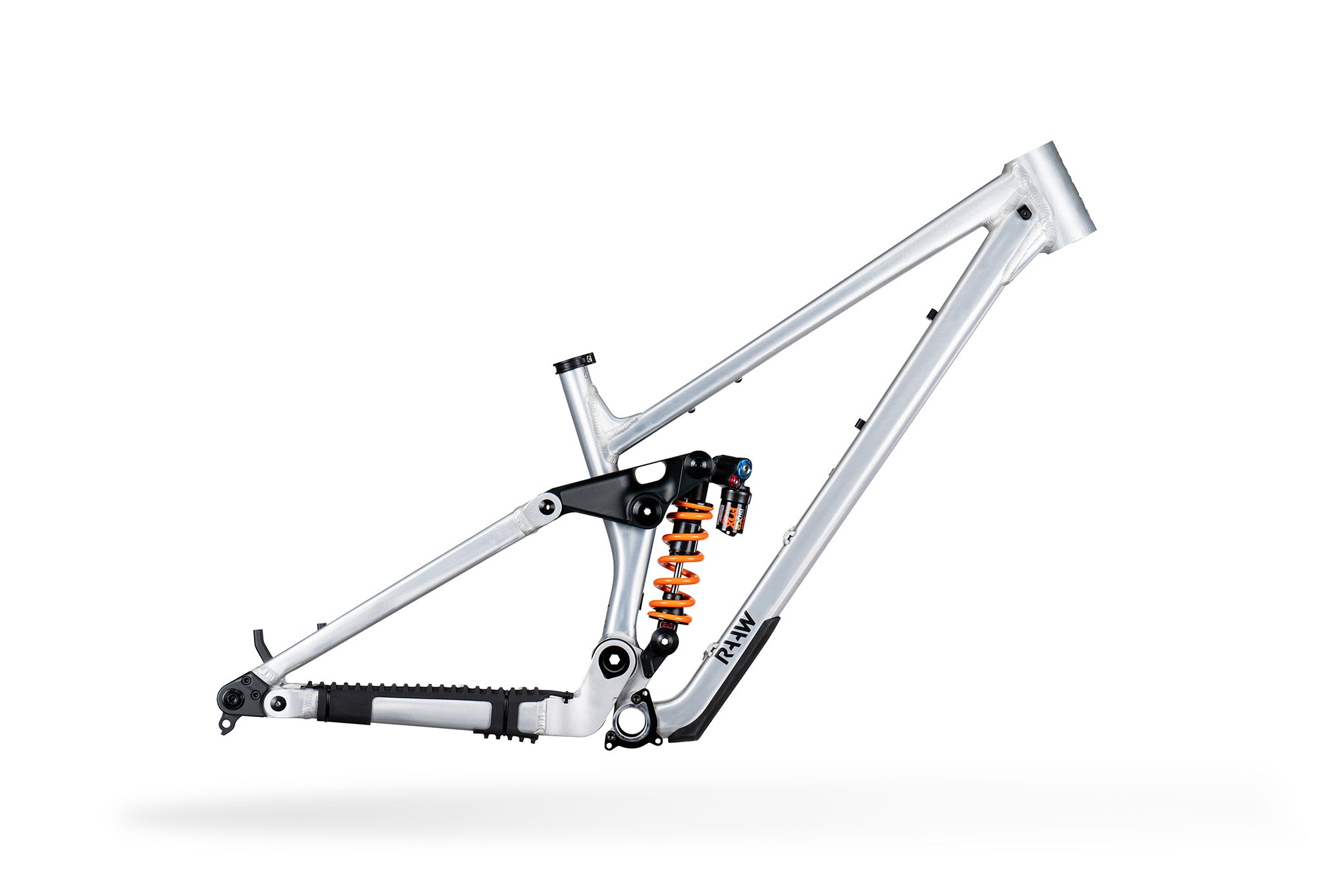

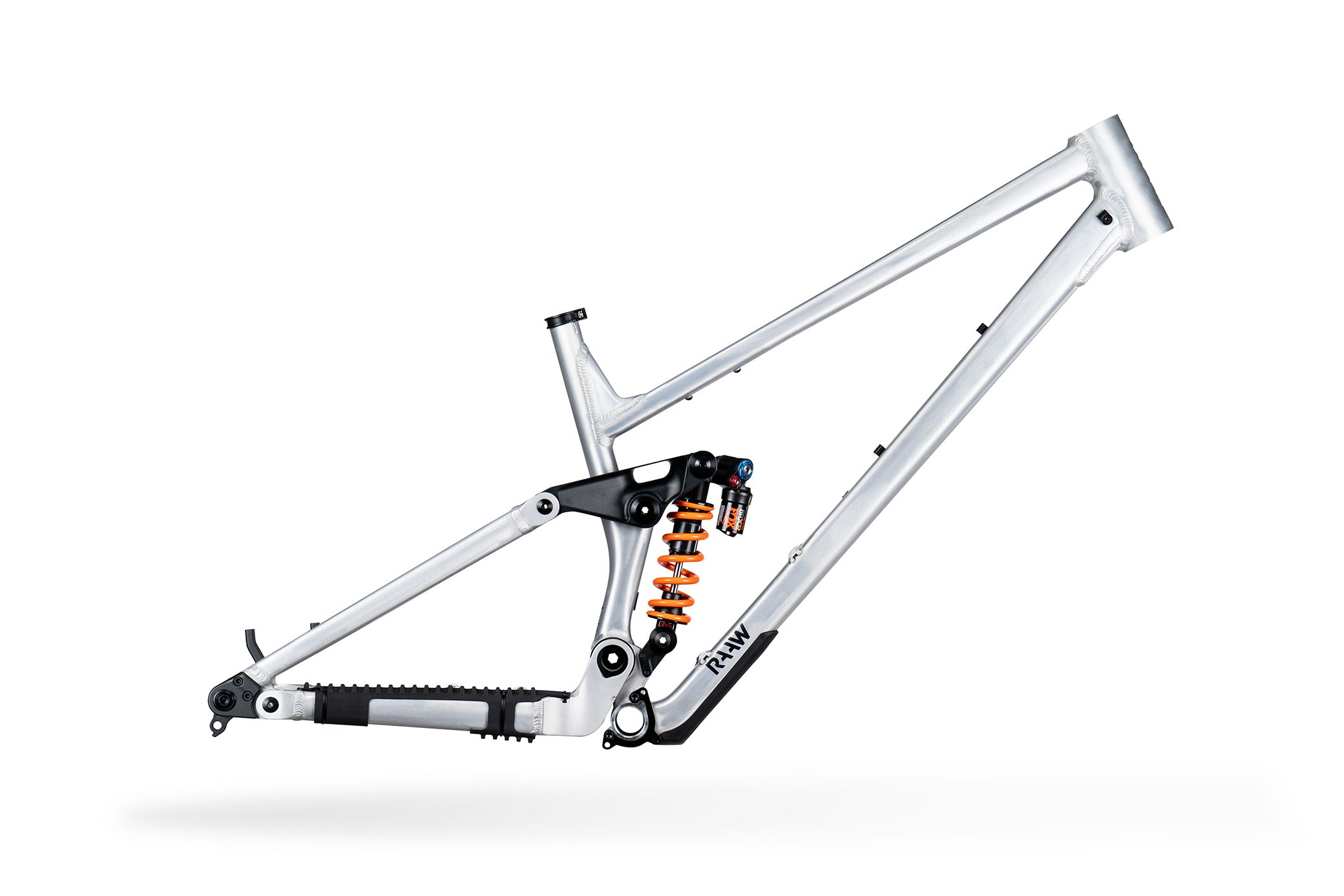

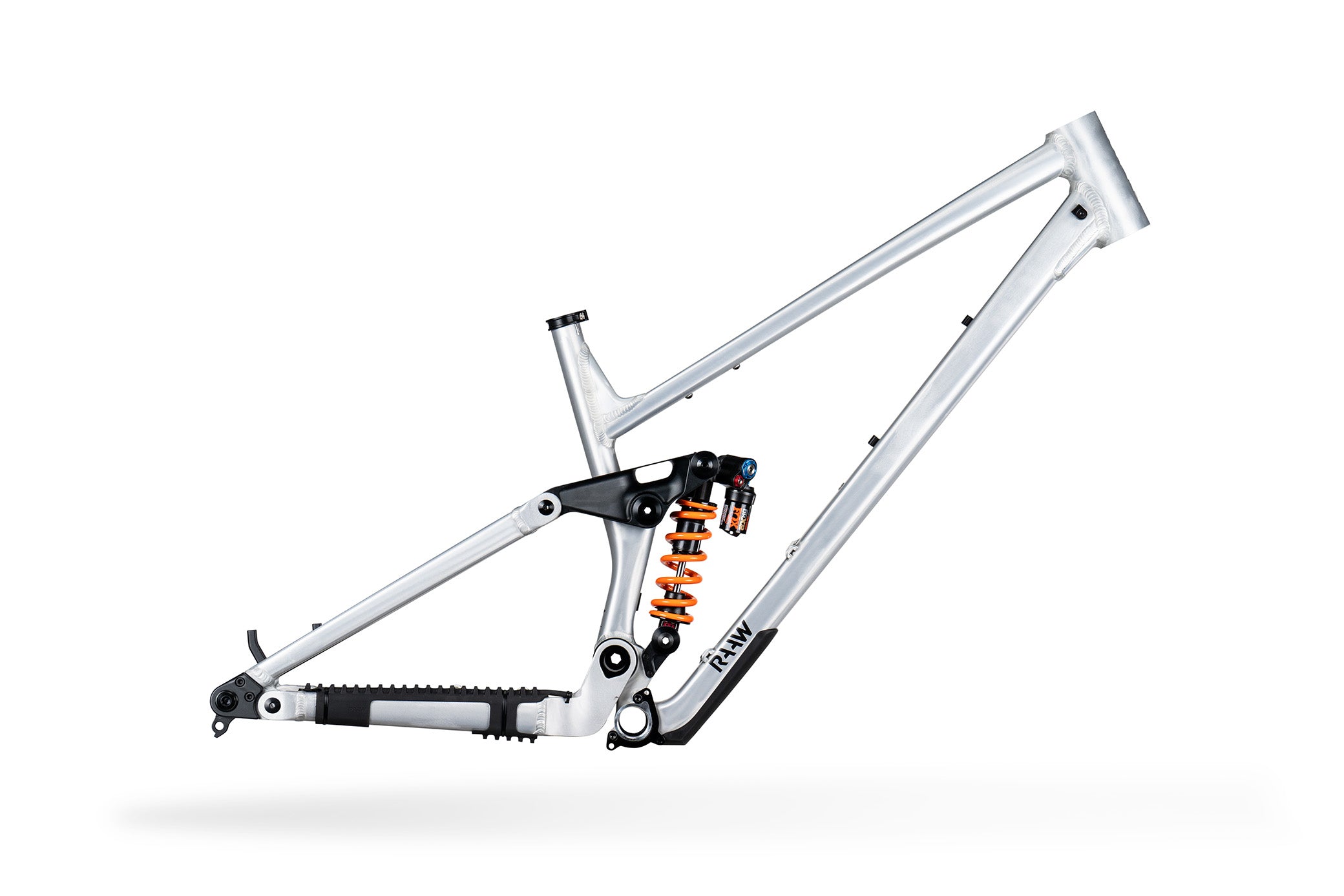

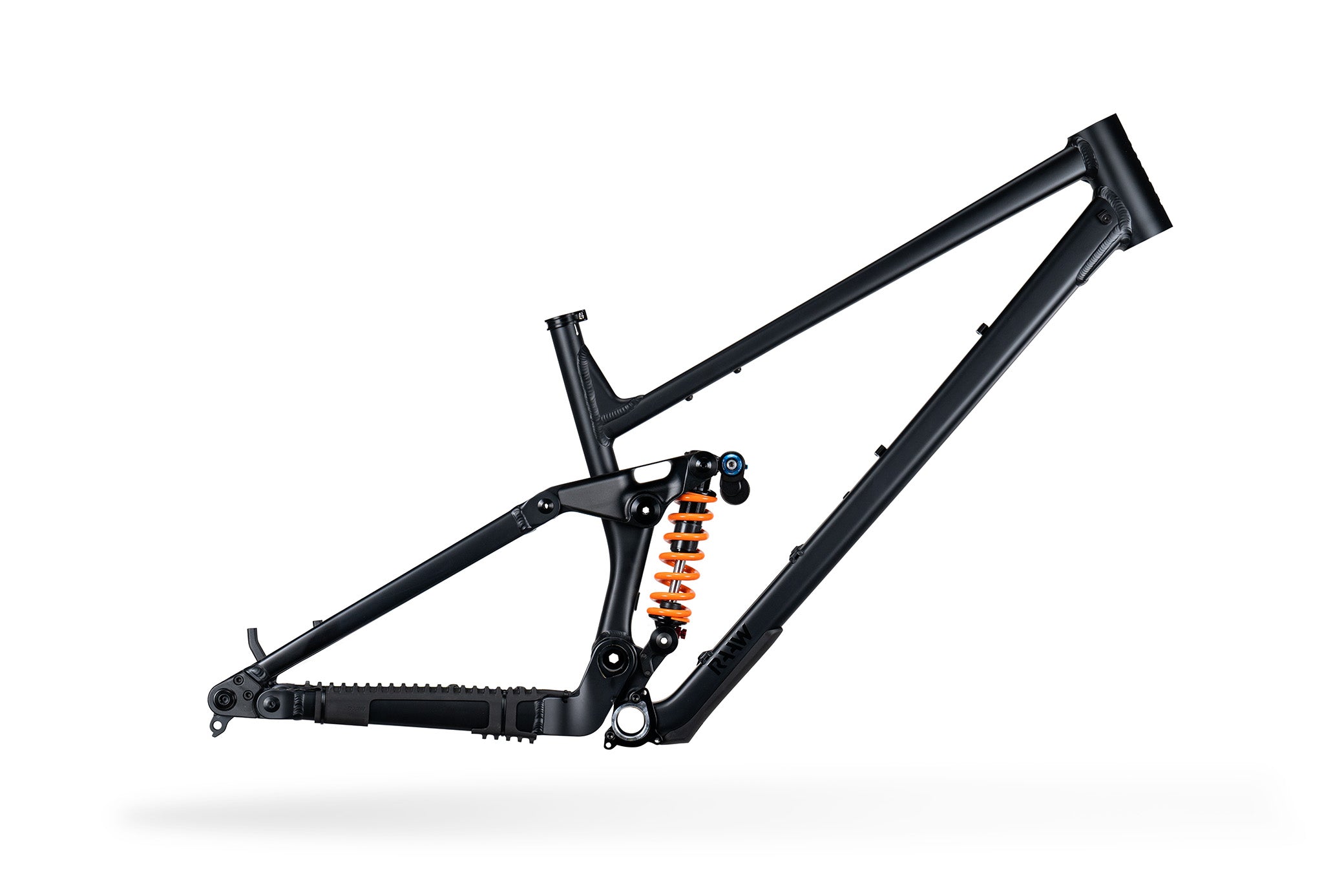

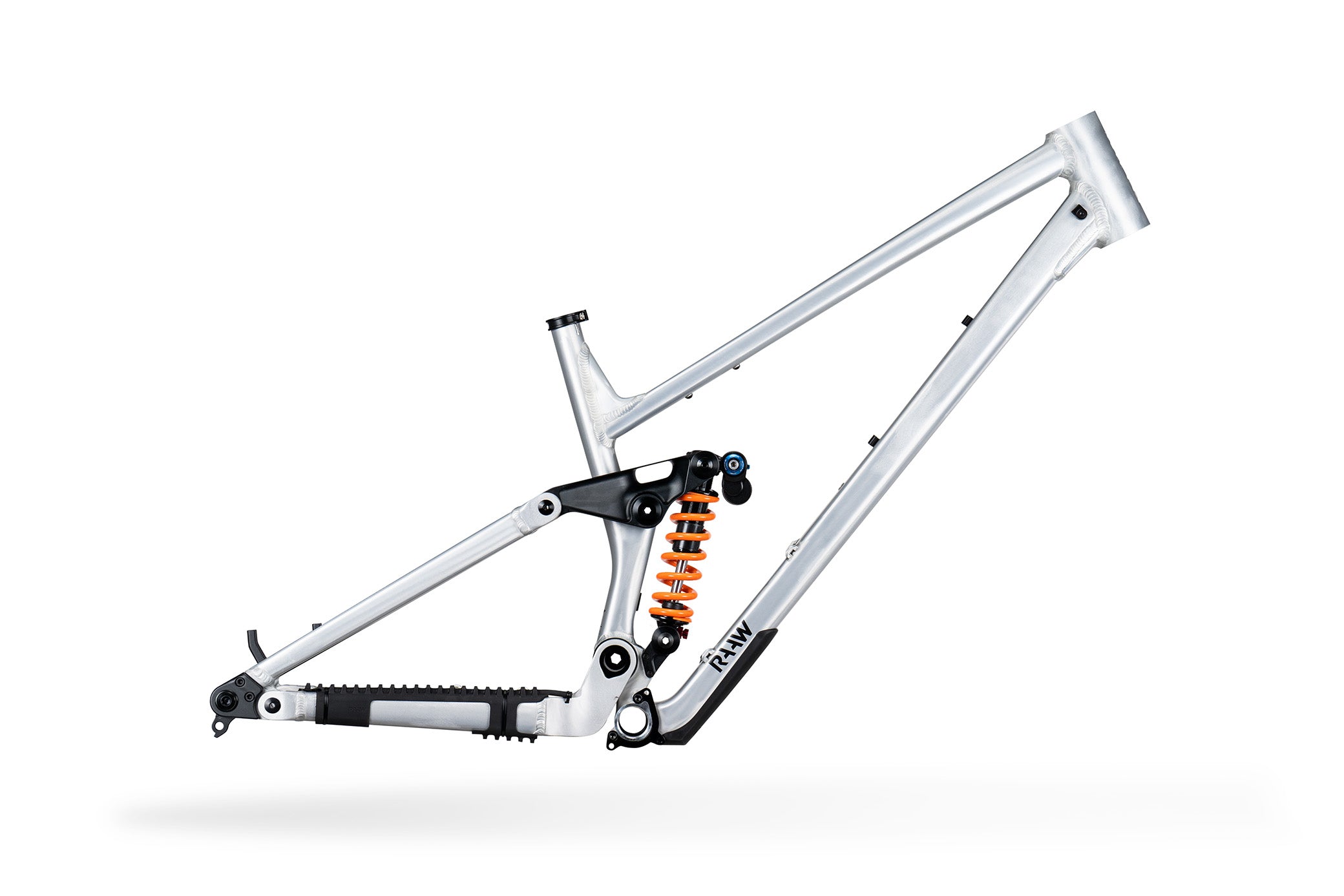

  • Fox DHX2: The DHX2 offers unparalleled responsiveness and endless traction.

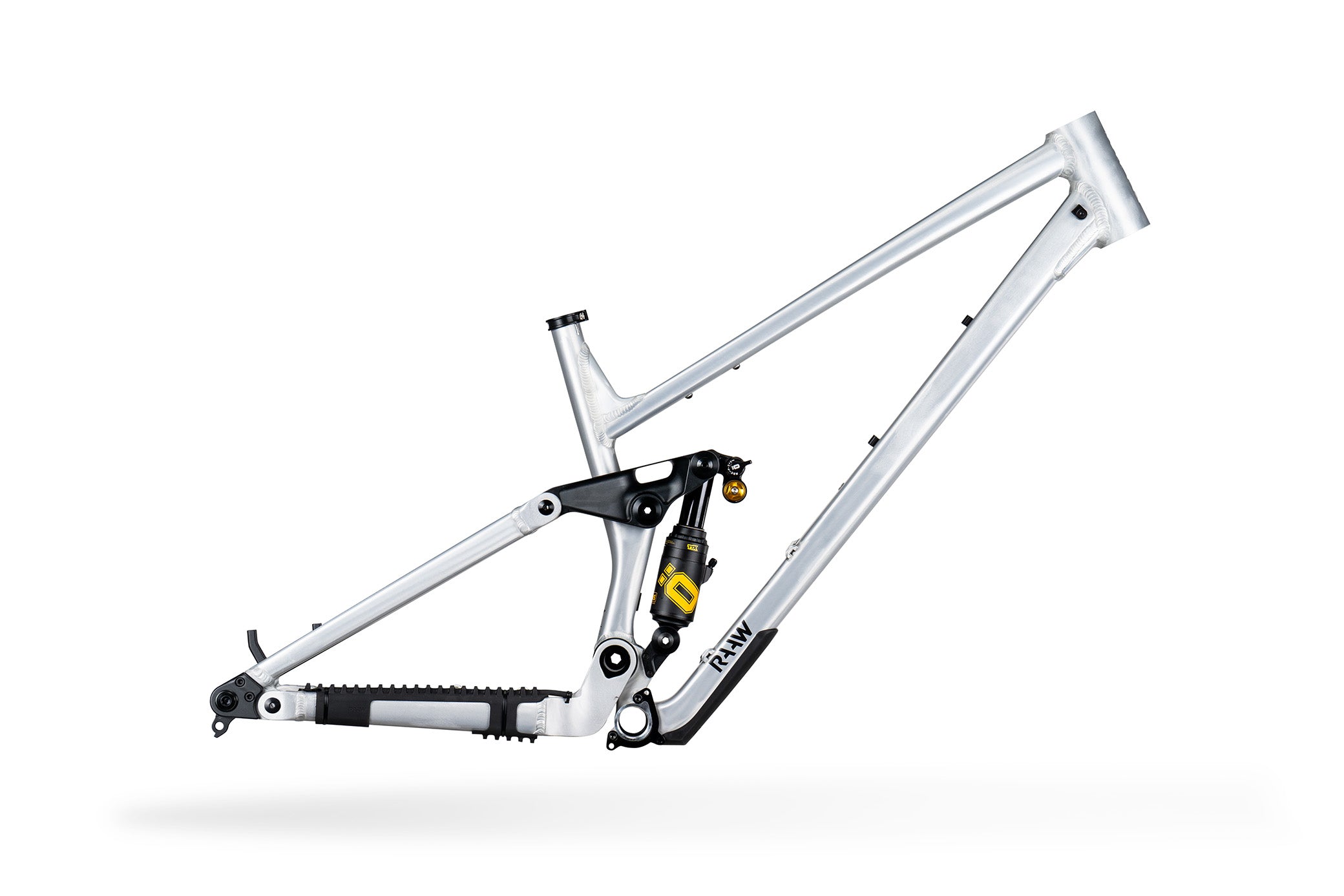

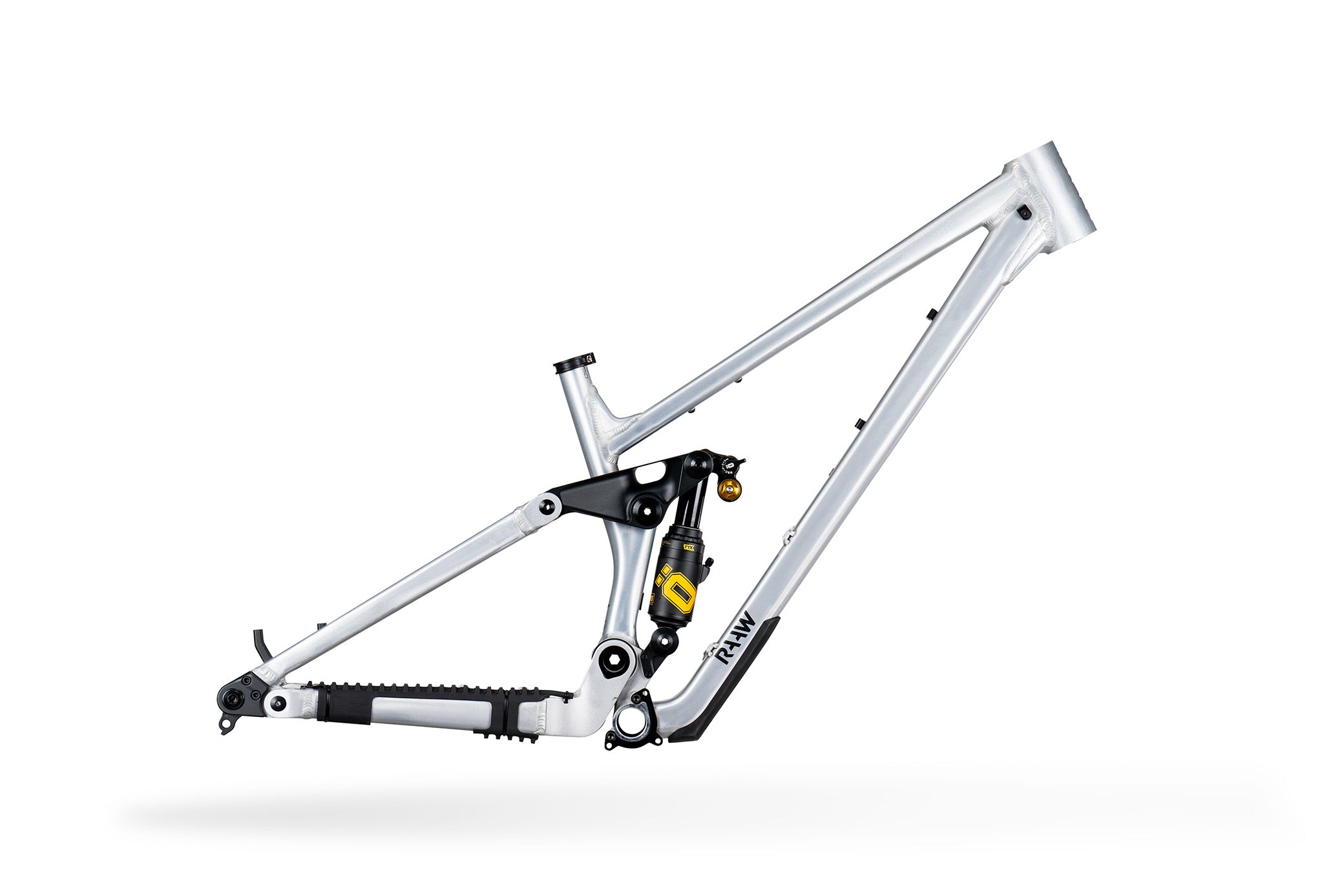

  • Öhlins TTX2Air: The TTX2Air is a high-performance shock in a lightweight yet robust package, the Öhlins TTX2Air impresses with its sensitive response and excellent bike control under all conditions. It's an absolute all-rounder.

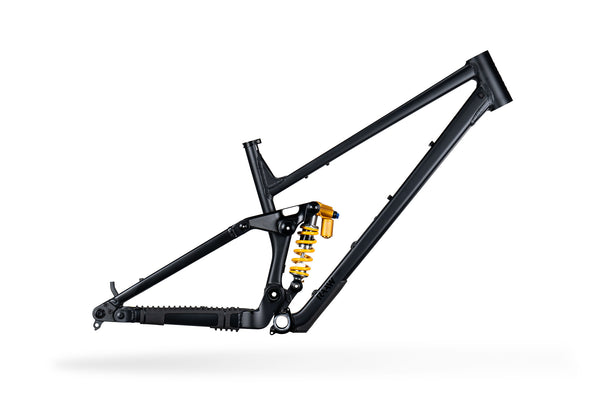

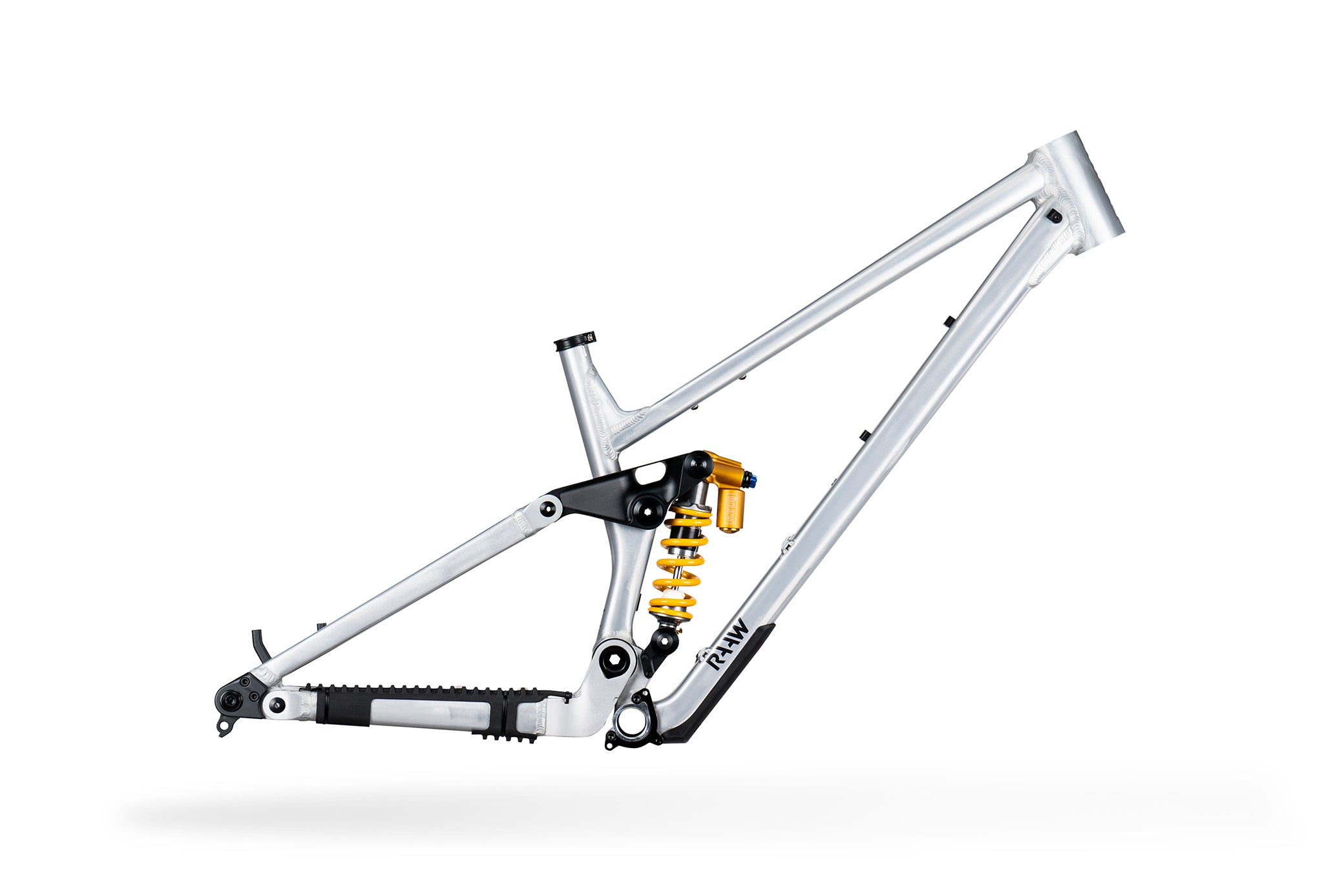

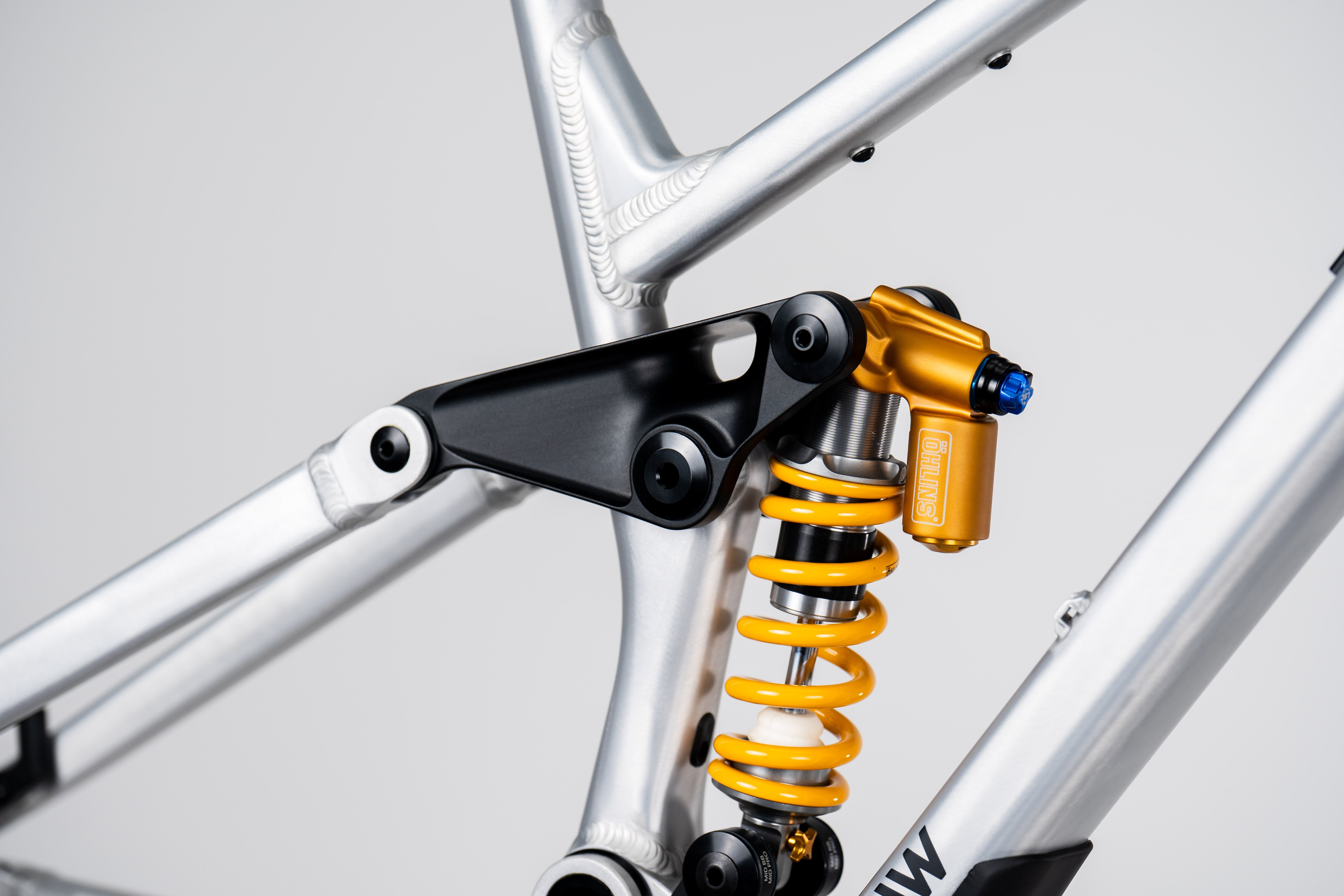

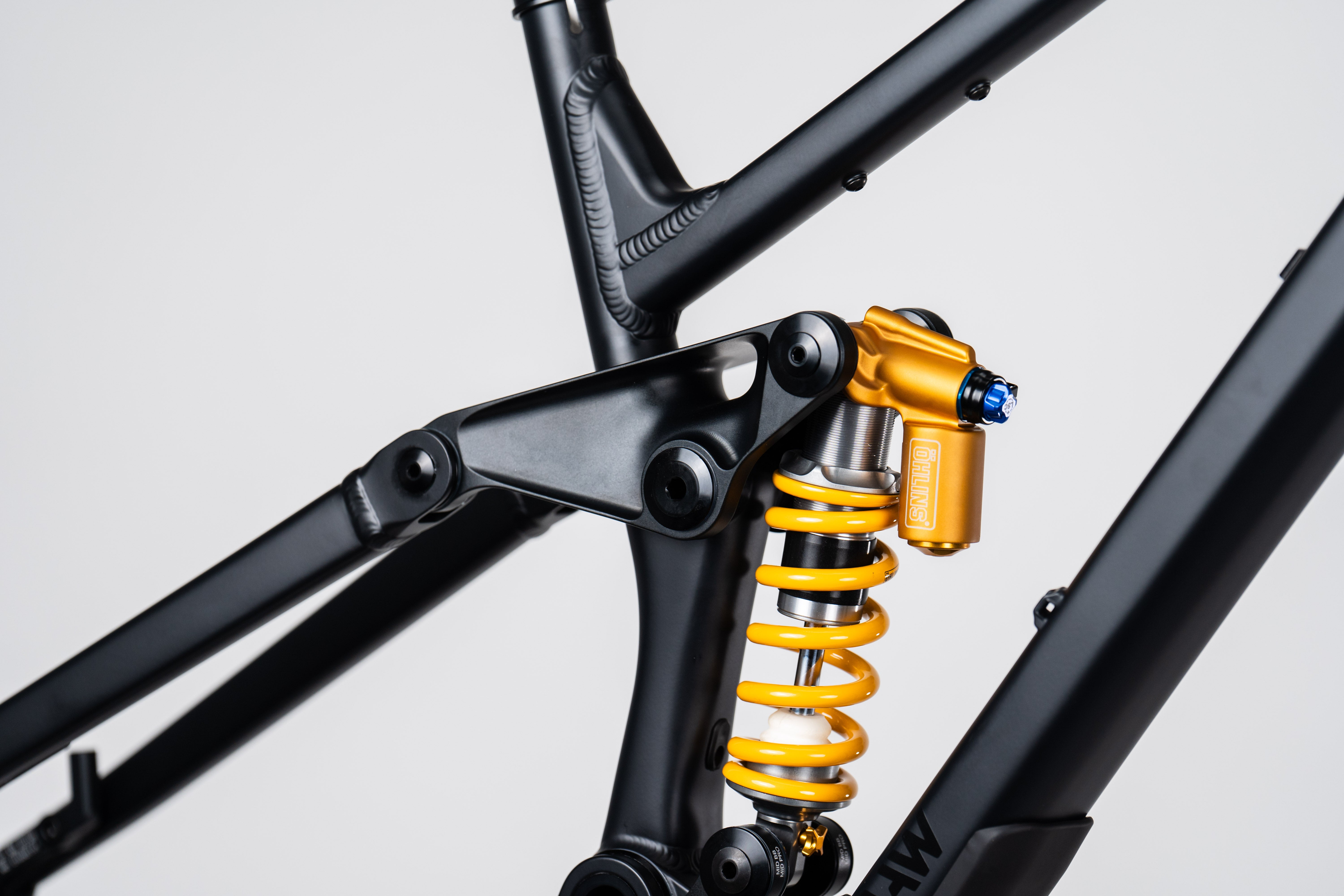

  • Öhlins TTX22m.2: The TTX22m.2 coil shines with incredible traction and good support throughout the entire travel. If you are looking for maximum performance in rough terrain, this is the one for you.

 We recommend using one of the shocks offered here, as each of them is specifically tuned to the Madonnas suspension kinematics. However, the Madonna frame does offer ample clearance for many shocks. You can find more information on the support page under "Compatibility information".

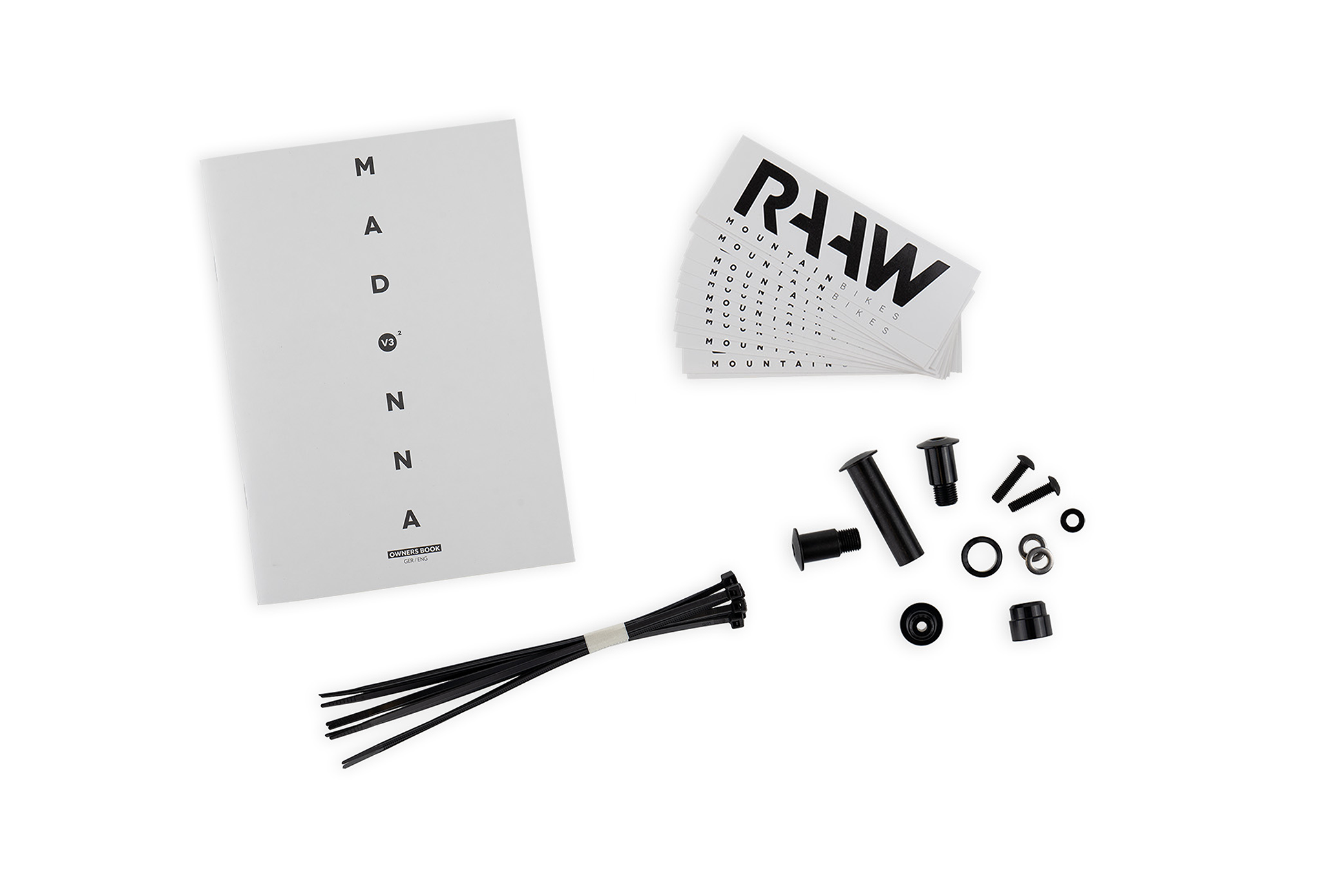

Contents

Madonna V3.2 Frame Kit

  • 1x Frame RAAW Madonna V3.2
  • 1x Seatpost Clamp RAAW
  • 1x Protective Film (if selected)
  • 1x Chainstay Protector
  • 1x Seatstay Protector
  • 1x Down Tube Protector
  • 1x Brake Mount 200(+3) mm
  • 1x UDH Rear Wheel Axle
  • UDH Hanger
  • Lower Shock Mount by Wheelsize Option (29 and/or MX)
  • Full Hardware for shock assembly
  • Cable Guides and 9 Zip Ties
  • Owners Book
  • Welcome Package

Optional Parts

Headset

  • 1x Headset Cane Creek - Hellbender 70 ZS56 Tapered

Shock choice

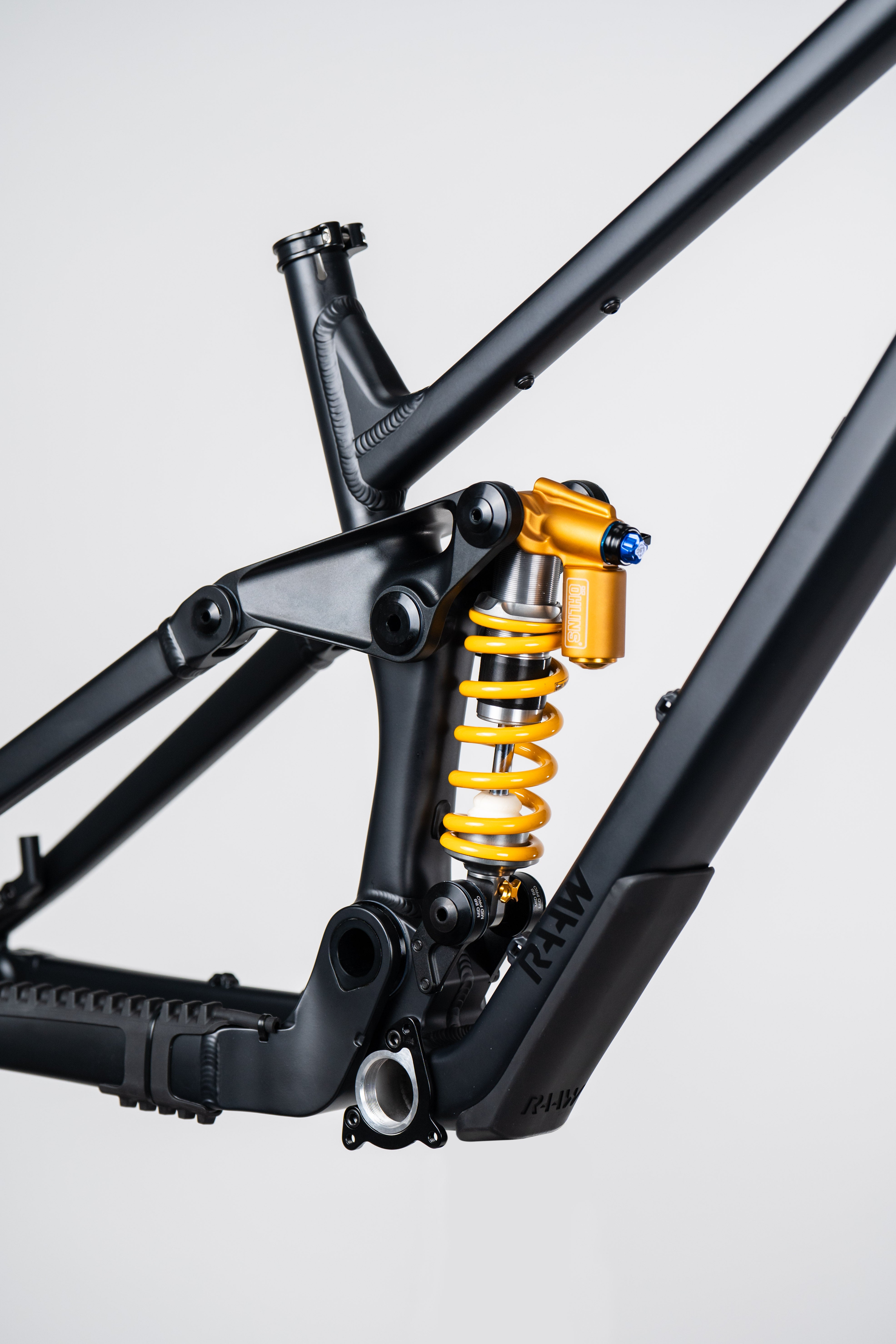

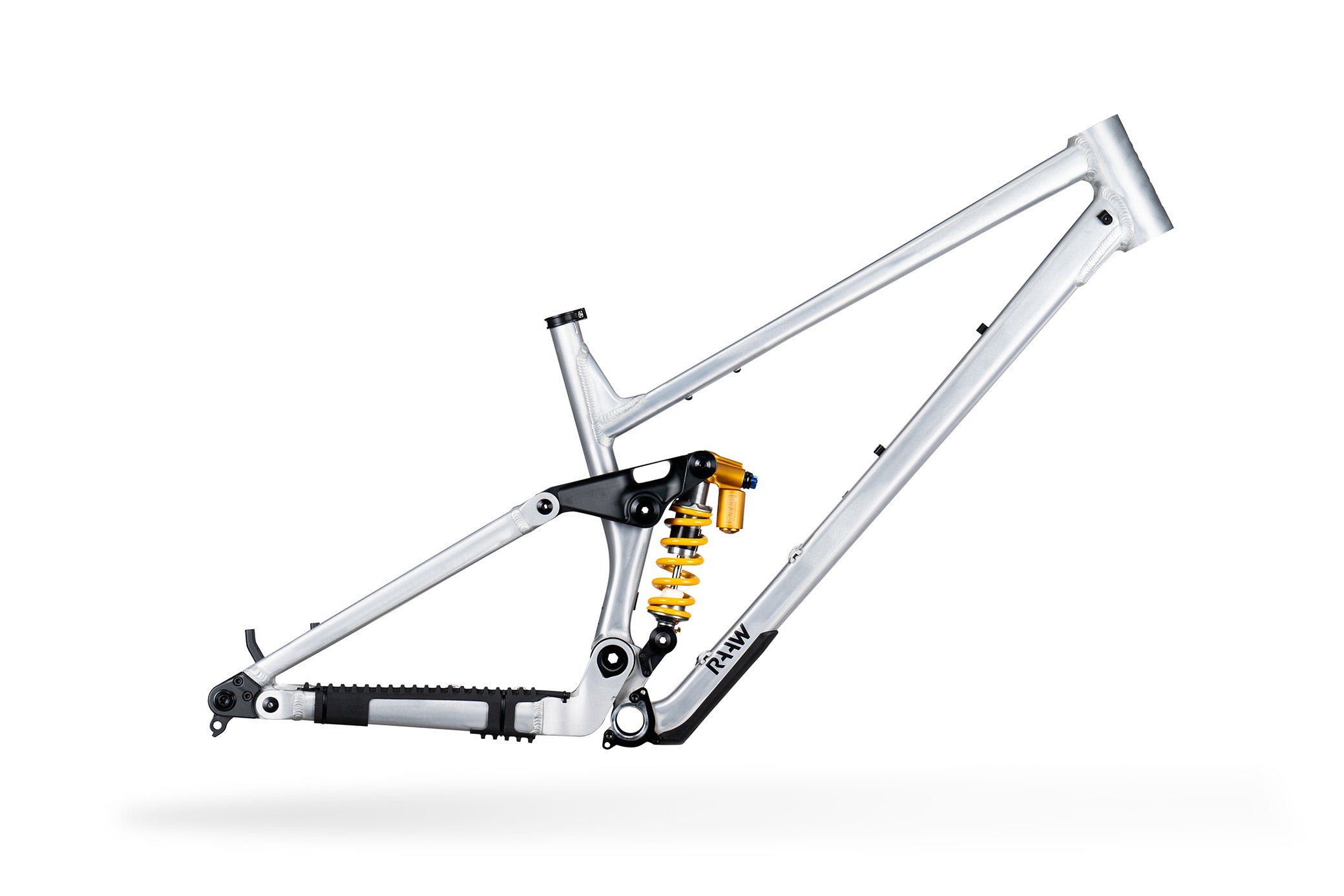

  • 1x Öhlins TTX22m.2 Coil incl. spring

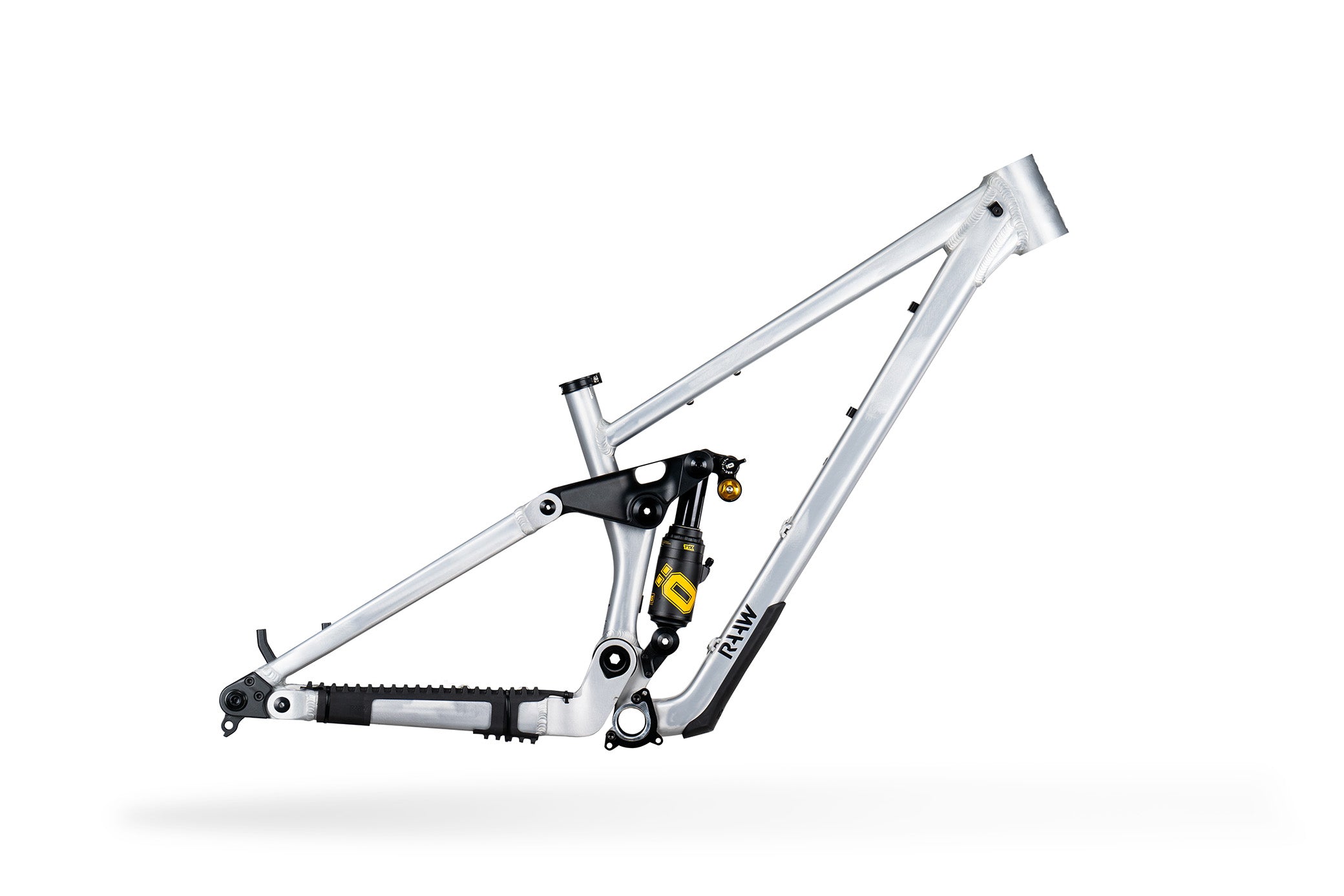

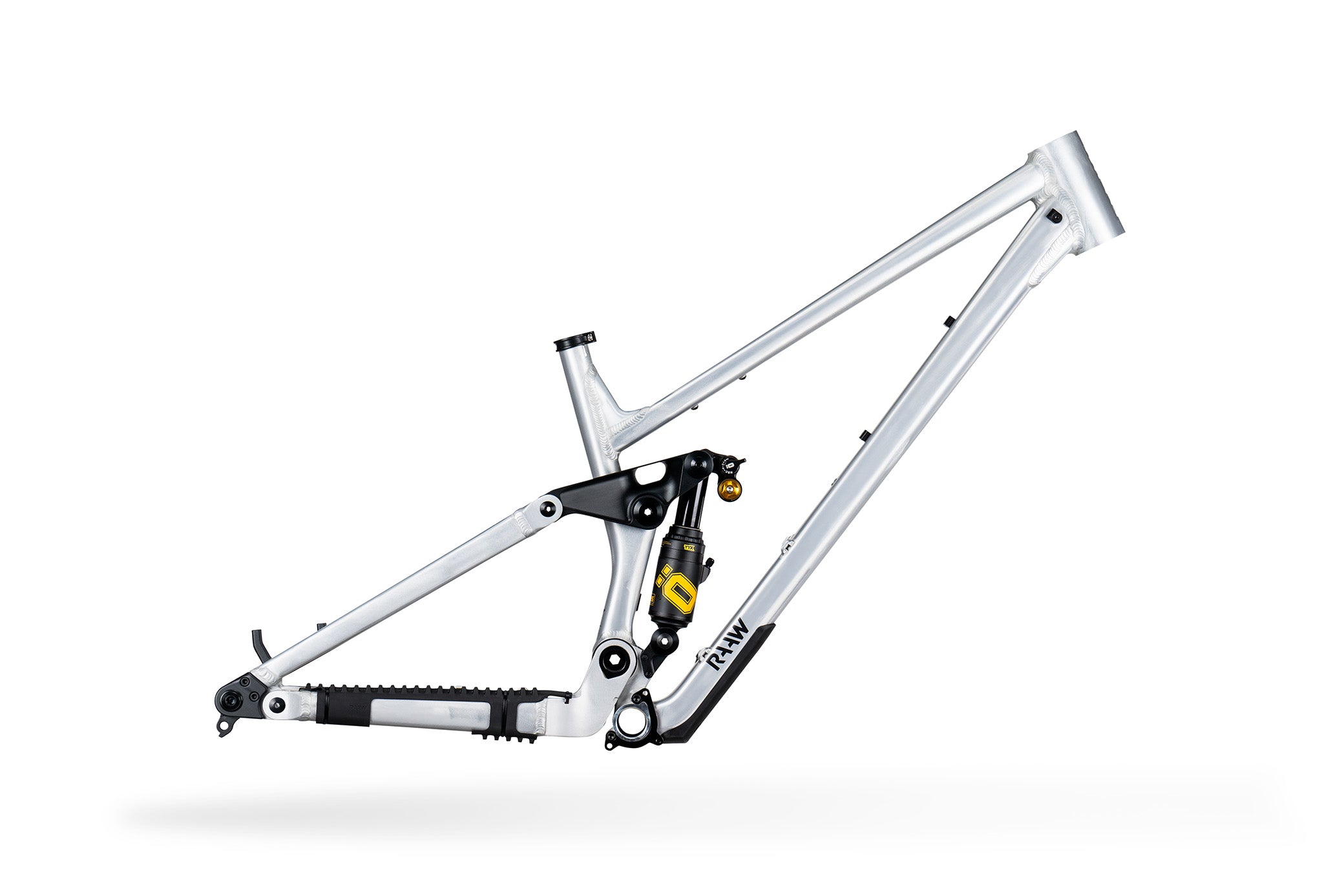

  • 1x Öhlins TTX2 Air
  • 1x Fox Float X Factory 2pos lever

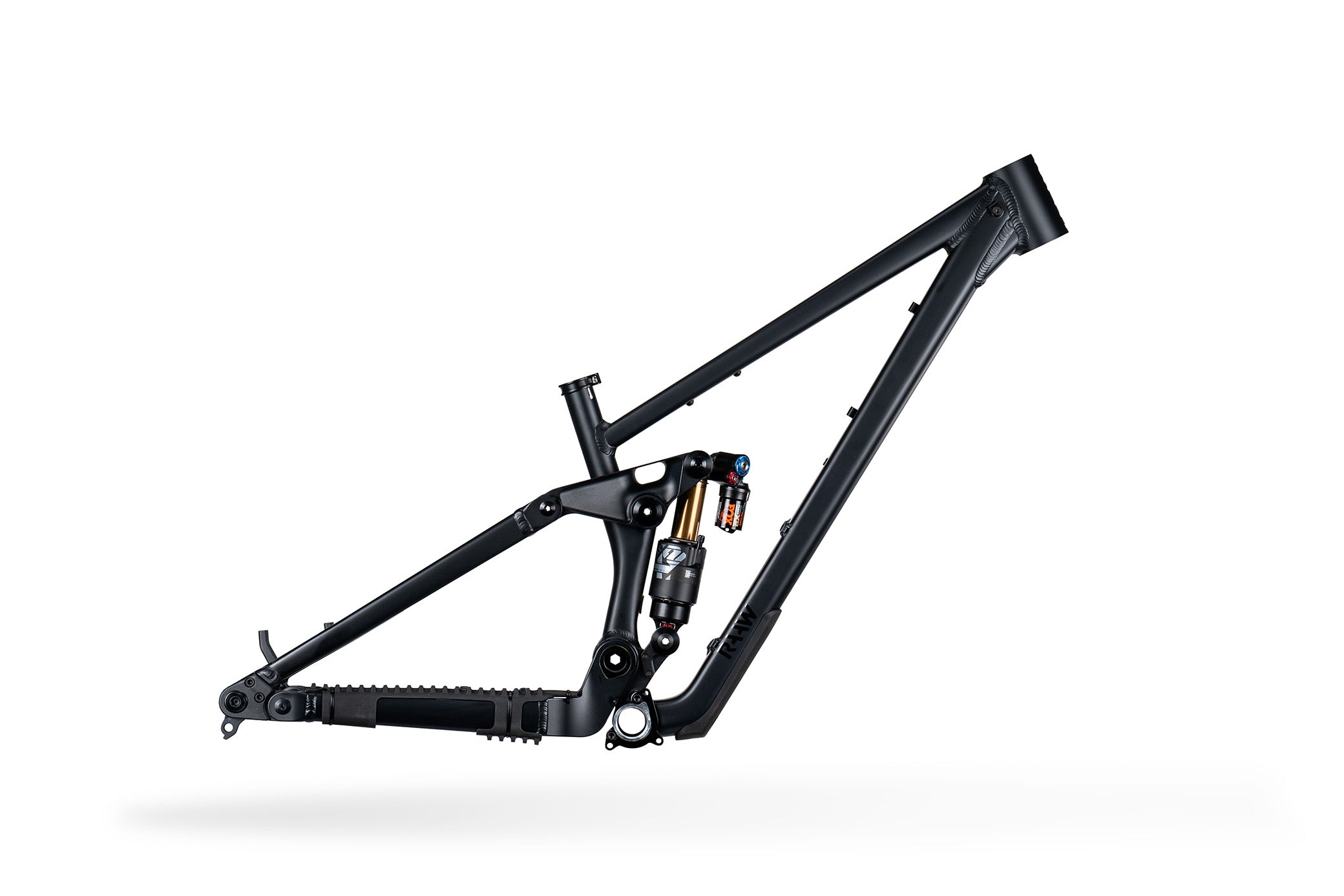

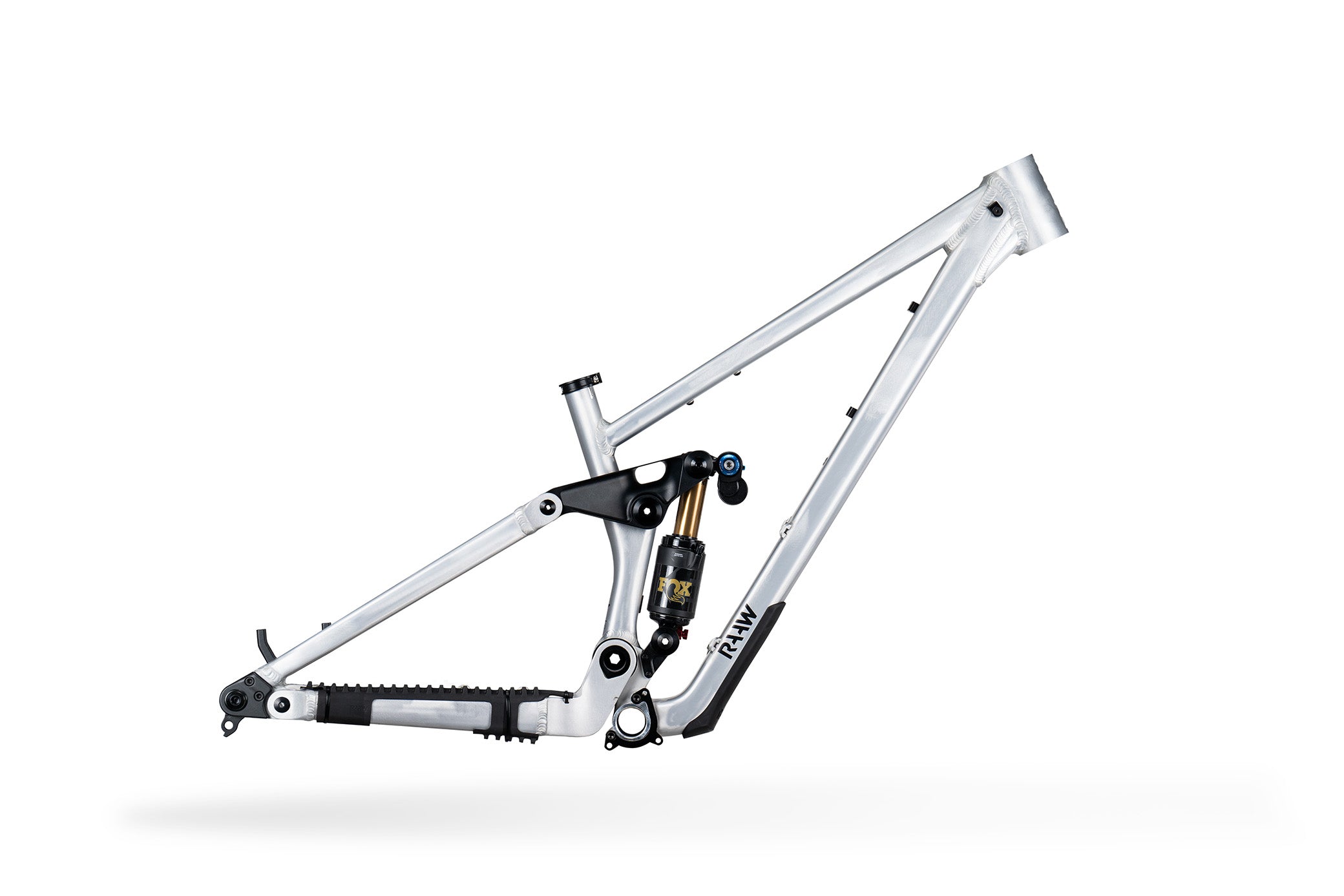

  • 1x Fox Float X2 Factory (MY24 or MY26) 2pos lever
  • 1x Fox DHX2 Factory (MY24 or MY26) 2pos lever incl. Fox SLS spring
Loading image:
Factory Grade Support Included

If you ride a RAAW, you'll never ride alone. Your frame comes with comprehensive documentation and a direct line to the team that created it.

We're happy to answer all your questions!

Community Builds

Browse builds from the community with this frame from our community or submit your own here.
