Madonna V3 Frame Kit - Raw

Regular price €2.790,00

tax included

shipping calculated at checkout

No reviews
Size and Rocker
Seatstay Option
Spring Rate
Spring Rate
Seatstay Option
Seatstay Option
Protective film

Out of stock

Madonna V3 Frame Kit - Raw

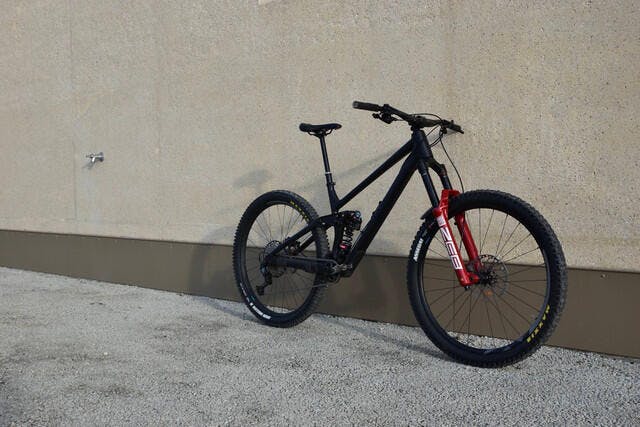

The Madonna V3 is the most capable, adjustable, and durable bike we’ve ever built. It’ll take on the roughest tracks, the longest rides, all the while never shying away from a climb.

While we haven’t lost our focus on durability, we’ve added adjustability to make it even more versatile. The fourth iteration of the Madonna will have your back, no matter what.

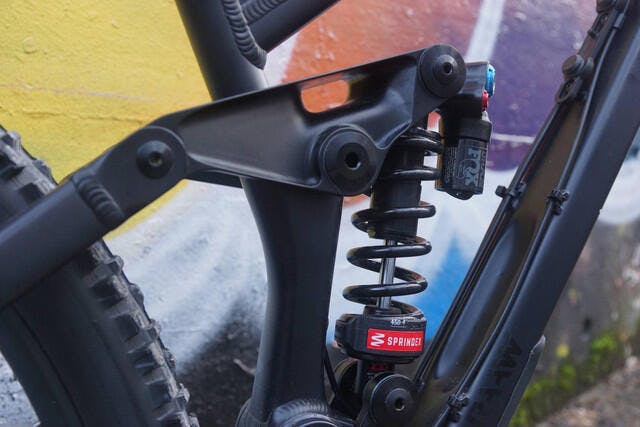

If you want to learn more about the shock choice or the two different rocker link options, you can find all details about the Madonna V3 on this page.

The frames are regularly available with the rocker link options shown in the selection on the side. If you prefer a different rocker link, please send us an e-mail to and we will check the availability of the preferred configuration.


Reach 430 455 480 505 530
Stack 637 650 664 677 677
Chainstay Length 445 445 450 455 455
BB Drop 35 35 35 35 35
Seat Tube Length 395 420 445 470 470
Virtual Seat Tube Angle 77 77 78 78 78
Head Tube Angle 64 64 64 64 64
Wheelbase 1216 1248 1284 1320 1346
Body Height in cm 158 - 170 167 - 180 177 - 190 186 - 199 195 - 208

(all dimensions in mm except for angles)


Travel rear / front 160 / 170mm
Wheel size 29” (740–755mm) (27,5” rear option)
Max tyre width 2.6” (66mm)
Tyre clearance 84mm
Rear hub
Shifting One-by only, boost, 36t max (UDH / T-Type option)
BB 73mm BSA / ISCG05
Brake 203mm post mount
Seat tube diameter 31.6mm inside, 35mm outside
Internal seatpost routing Yes
Seatpost max insert S 220mm / M 245mm / L 268mm / XL & XXL 294mm
Headset 56 / 56 Zero stack
Cable routing All external
Shock hardware Ball bearings and hardware included
Bearings main pivot 2 x 6906-2RS1 (47*30*9)
Bearings rocker pivot
2 x 6002-2RS1 (32*15*9)
Bearings other pivots
8 x 6902-2RS1 (28*15*7)
Recommended fork dimensions
ATC 587,7mm – Offset 44mm
Shock dimensions
205*65 / 205*60 – Trunnion
3.9 kg (incl. all hardware, w/o shock, size M)
AL 6066 T6
Finish options
Matt Black and raw with matt clear coat

Shock Options & compatibility

You want to use a different shock? We can only guarantee full compatibility with the Fox and Öhlins models we offer and recommend. However, the Madonna frame does offer ample clearance for almost all shocks. Only if the shock body or reservoir is too big it might interfere with the downtube or lower shock mount at full travel. You can find more information on the support page under "Compatibility information".


Madonna V3 Frame Kit

  • 1x Frame RAAW Madonna V3 – Finish Raw
  • 1x Seatpost clamp RAAW
  • 1x Protective film for the Madonna V3 (if selected)
  • 1x Chainstay Protector
  • 1x Seatstay Protector
  • 1x Down Tube Protector
  • 1x Brake mount 203 mm
  • Full Hardware for shock assembly
  • Nine Zip ties
  • Owners book
  • Welcome package

Option RAAW Seatstay

  • 1x RAAW Rear Wheel Axle
  • RAAW 7075 Rear Derailleur Hanger for mid position

Option UDH Seatstay

  • 1x RAAW X12 Axle 174mm
  • UDH hanger

Optional headset contains

  • 1x Headset Cane Creek - Hellbender 70

Optional shock choice

  • 1x Öhlins TTX22m.2 Coil incl. spring
  • 1x Öhlins TTX2 Air
  • 1x Fox Float X Factory 2pos lever
  • 1x Fox Float X2 Factory 2pos lever
  • 1x Fox DHX2 Factory 2pos lever incl. Fox SLS spring
